IF Interface: IN-1 ... IN-8 or OUT-1 ... OUT-8
Local port always connected with management IP address of the device.
<IOIP REMOTE [IP:PORT] [IF]> Command
This command defines remote IP address and IP port number a local interface should be
connected with.
IP:PORT Specifies IP Address and Port number for pre-defined connection or
"ANY" string. If ANY is specified, a TCP client with any IP address
is allowed to connect the TCP server.
Examples:
IOIP LOCAL 5000 IN-1 Set local port for interface IN-1
IOIP LOCAL 5001 IN-2 Set local port for interface IN-2
IOP REMOTE 192.168.0.1:5000 IN-1 Set remote destination for interface IN-1
IOP REMOTE 192.168.0.1:5001 IN-2 Set remote destination for interface IN-2
IOP LOCAL 6000 OUT-1 Set local port for interface OUT-1
IOP REMOTE ANY OUT-1 Set any remote connection for interface
OUT-1

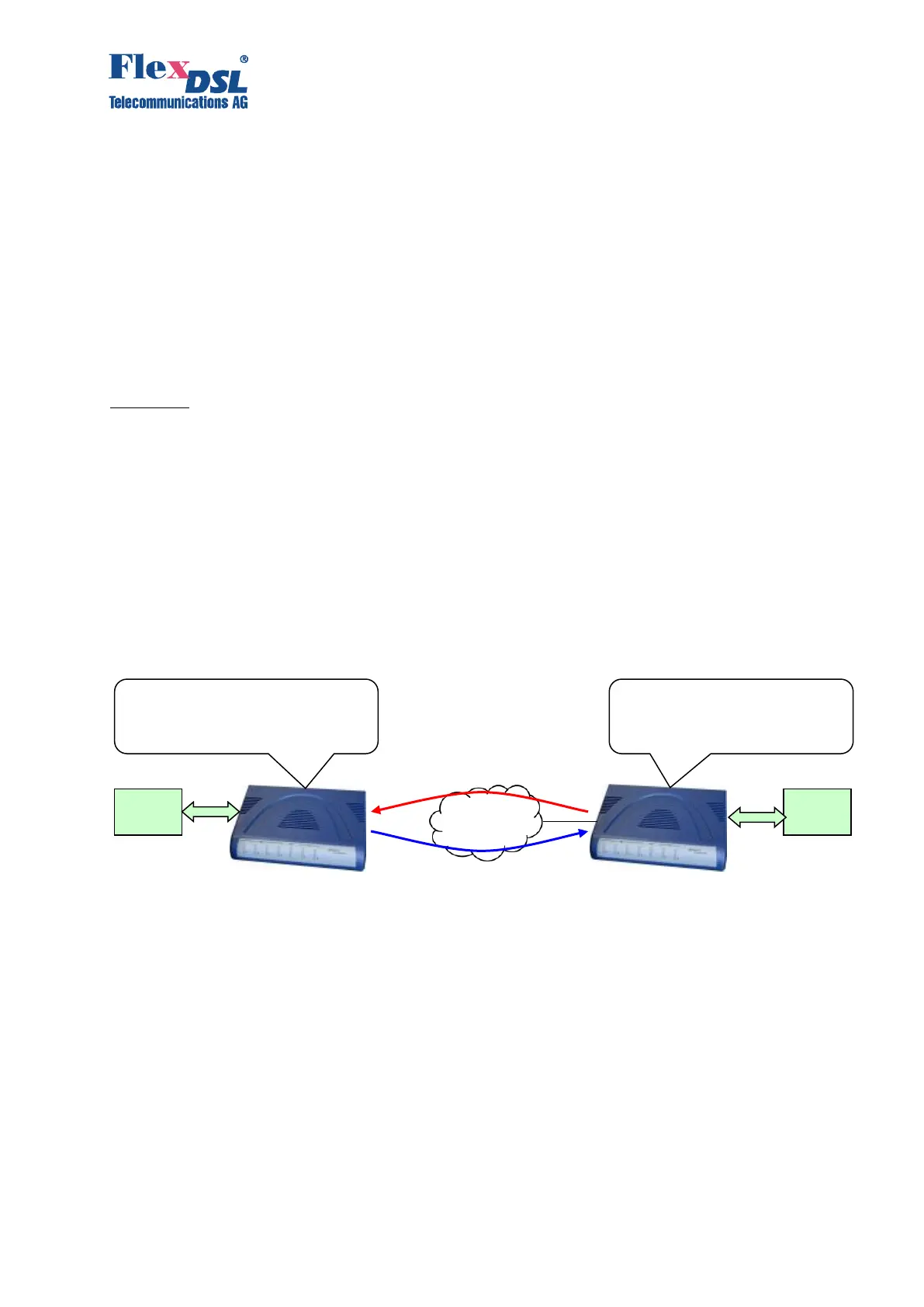

Example 1 Point-to-Point connection:
Example 2 Point-to-Multipoint connection:
192.168.0.235
Port 5000
192.168.0.236
PORT 5000
IN 1
OUT 1
IP
Network
192.168.0.235:5000 → 192.168.0.236:5000
IOIP UDP IN-1
IOIP LOCAL 5000 IN-1
IOIP REMOTE 192.168.0.236:5000 IN-1
192.168.0.235:5000 ← 192.168.0.236:5000
IOIP UDP OUT-1
IOIP LOCAL 5000 OUT-1
IOIP REMOTE 192.168.0.235 OUT-1
