User Manual LTU Orion 3
154

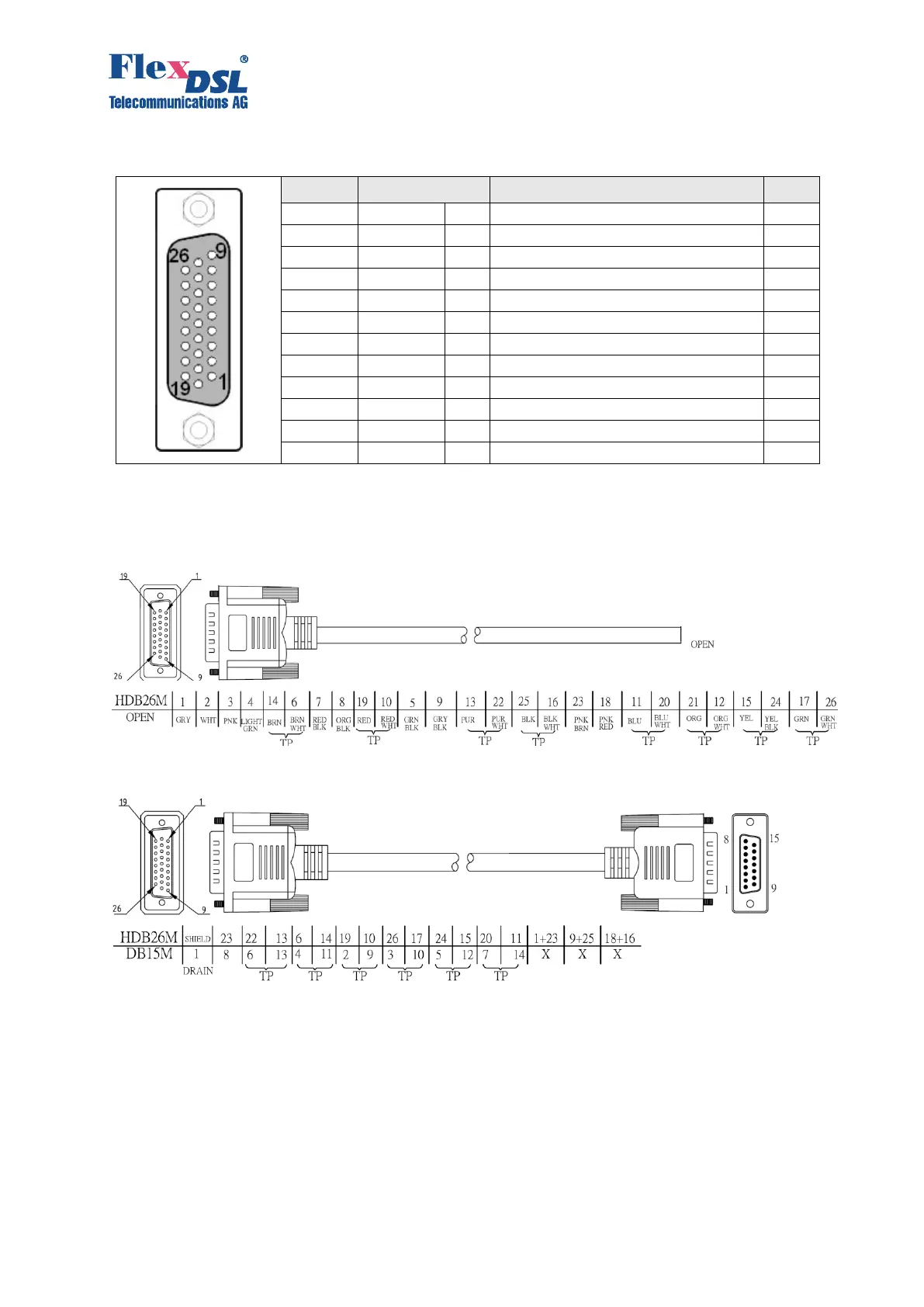

Type – DB-26H (D-Sub High Density, female), 26 pins.
Pin No.
Signal G.703/E0
Description
Direct.
11
RXD+
Receive Data +
In
20
RXD-
Receive Data -
In
17
TXD+
Transmit Data +
Out
26
TXD-
Transmit Data -
Out
5
Signal Ground
14
Signal Ground
22
Signal Ground
23
Signal Ground
15
Cable is Connected
In
This connector description is only correct with the codirectional G.703/E0 64 kbps daughter board.
Available cables:
FG-CAB-DB26-OR3-OPEN
Cable Orion3 Universal, DB26MH to Open, 1.0m, UL2464, AWG-26, OD=8mm
FG-CAB-N21-OR3-DCE
Cable Orion3 Nx64 to X.21, DB26MH to DB15M, DCE, 1.0m, UL2464, AWG-28, OD=5mm
