Note:
◆ Options with the symbol “﹡” are the factory setting.
◆ ppm value could be calculated by inputted temperature and pressure, or input directly.
If the option of “ppm correct” is set as “Yes”, the temperature, pressure and ppm can not
be inputted by hand.
◆ This operation is also available in stake out mode.
◆ You can press star{★}/F1[EDM] key to enter EDM setting menu directly.

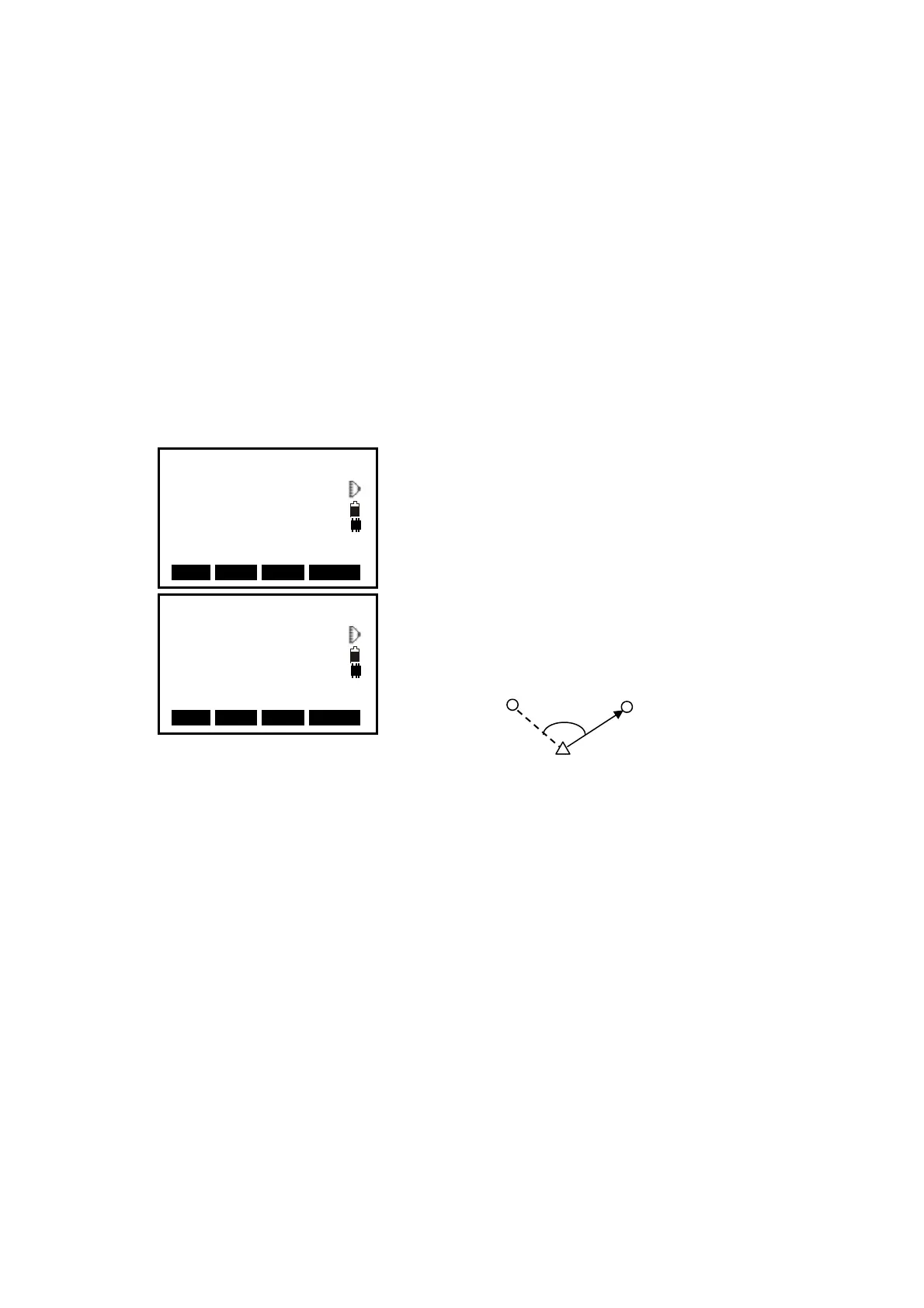

4. Angle Measurement
4.1 Measure a Horizontal Angle of Two Points
1. Sight the 1
st
target.
Press F4: [
0SET] twice to set the 1
st
target as
0°at P1 in the measure mode.
Press [
SHV1] or [SHV2] to change display status
firstly if in distance mode.
2. Sight the 2
nd
target. The displayed value is the
included angle between two points.
2nd target 1st target
Meas PC 0.0
ppm 0
SD
VA 85°55′50″ II
HA 0°00′00″ P1
DIST SHV1 SHV2 0 S E T
Meas PC 0.0
ppm 0
SD
VA 85°55′50″ II
HA 156°13′14″ P1
DIST SHV1 SHV2 0 S E T
