Foif RTS680 Series User Manual

61

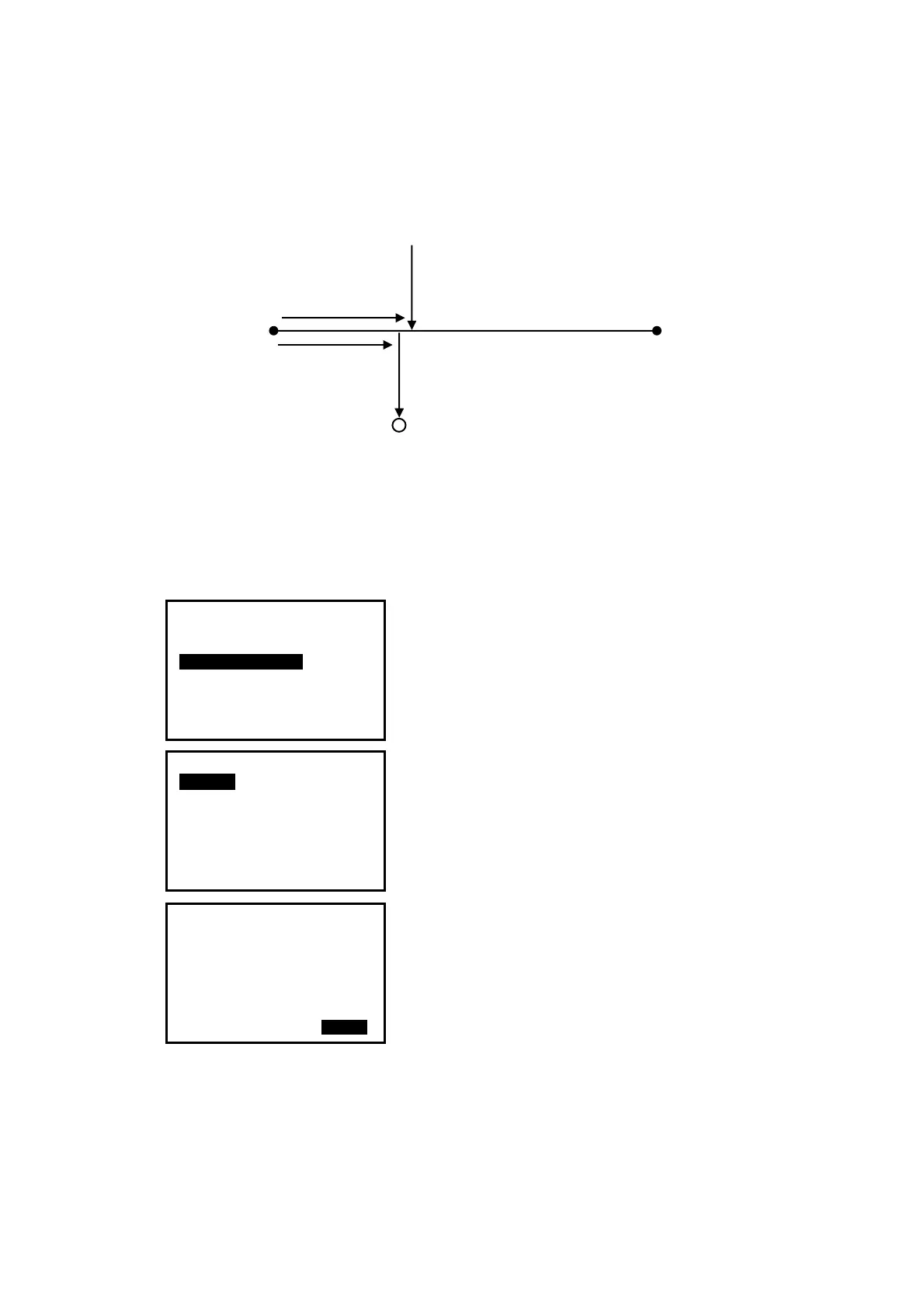

14. 2 Stake Out Line-Point
This measurement can be used to find the required point coordinates by inputting the
length and offset based on baseline.
Length: Distance along the baseline from 1
st
point to the position at which a line
extending from the required point intersects the baseline at right angles (X direction)
Offset: Distance from the required point to the position at which a line extending from the
required point intersects the baseline at right angles (Y direction).
【Procedure of stake out】
1. Select “
3. Stake out line” after defining a
baseline.
2. Select “
1. Point”
3. Input values of length and offset, then press F4:
[
OK], the coordinate of the required point is calculated
and displayed.
Required point
Length
X direction
1
st
Pt
2
nd
Pt
Offset
Baseline
Y direction
Stake out line
1.Occ. Orientation
2.Define baseline
3.Stake out line
Stake out line
1.Point
2.Line
Stake out line
Length
Offset
HOKD
