14. Stake out Line

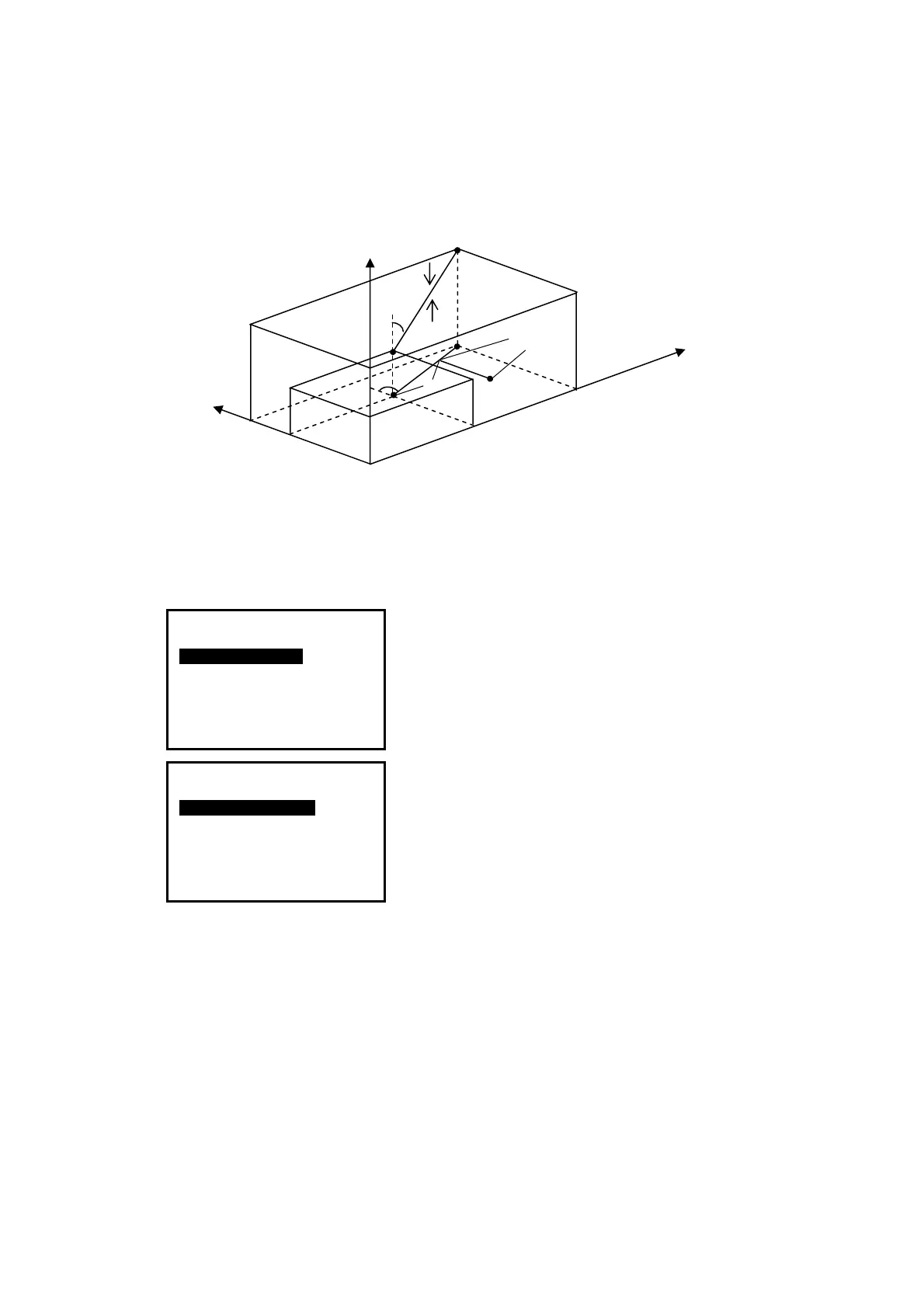

Stake out line is used for stake out a required point at a designed distance from the base
line and for finding the distance from the baseline to a measured point.
14. 1 Define Baseline
【Procedure of defining baseline】
To perform stake out line, please define a baseline first. The baseline can be defined by
inputting coordinates of the two points.
1. Press F2: [
MENU] on P2 of the basic measurement
mode.
2. Turn to P2, select “
2. Stake out line”.
3. Input the instrument occupied data, see Ҥ6.1 Input
the occupied point data”.
4. Select “
2. Define baseline”, following operations see “§13.1 Define baseline”
procedures 5, 6 and 7.
Menu P2
1.Point projection
2.Stake out line
3.Traverse
4.Inverse
5.Polarize
6.Repeat Measure
7.Arc staking out
Stake out line
1.Occ. Orientation
2.Define baseline
3.Stake out line
Offset
Length
Fil
l
Grad
e
2
nd
Pt
1
st
Pt
Baselin
e
Azimuth
Z
N
E
Cut
