9.3 Dual-Distance Offset Measurement

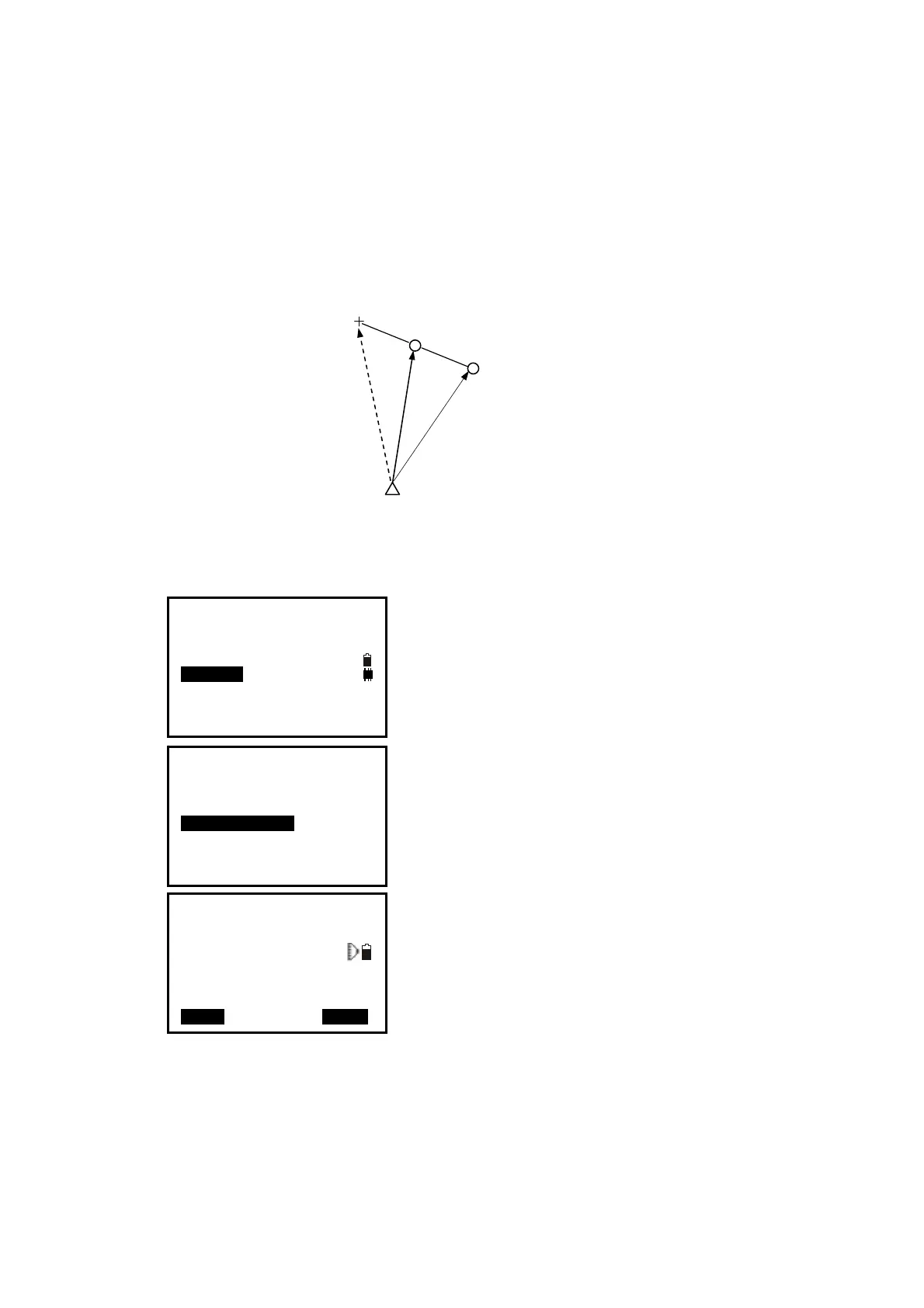

By measuring the distance between the target point and the two offset points. Set two
offset points (1st target and 2nd target) on a straight line from the target point, measure
the 1st and 2nd target, then input the distance between the 2nd target and the target point
to find the target point.
【Procedure of dual-distance offset measurement】
1. Set two offset points (1
st
target, 2
nd
target) on a
straight line from the target point and use the offset
points as target.
2. Select [
MENU] at P2 in measure mode, and then
select “
4. Offset”, or press F3: [OFST] at P3 directly.
3. Select “
4. Offset/2Dist” after inputting the
instrument occupied data, see “ § 6.1 Input the
occupied point data”.
4. Aim at the 1
st
target and press F1: [MEAS] and
measured data will display. Press F4: [
OK] to accept
this value.
Target point
Instrument station
Offset point
(Target)
Offset point
(Target)
Menu P1
1.Coordinate
2.Stake out
3.Area
4.Offset
5.MLM
6.REM
7.Resection
Offset
1.Occ. Orientation
2.Offset/Dist
3.Offset/Angle
4.Offset/2Dist
Observe 1st offset
N 10.186
E 10.000
Z 10.000
VA 90.0000gon
HA 64.5154gon
MEAS MOKS
