Foif RTS680 Series - Area; Area Calculation by Measured Data

40
8. Area

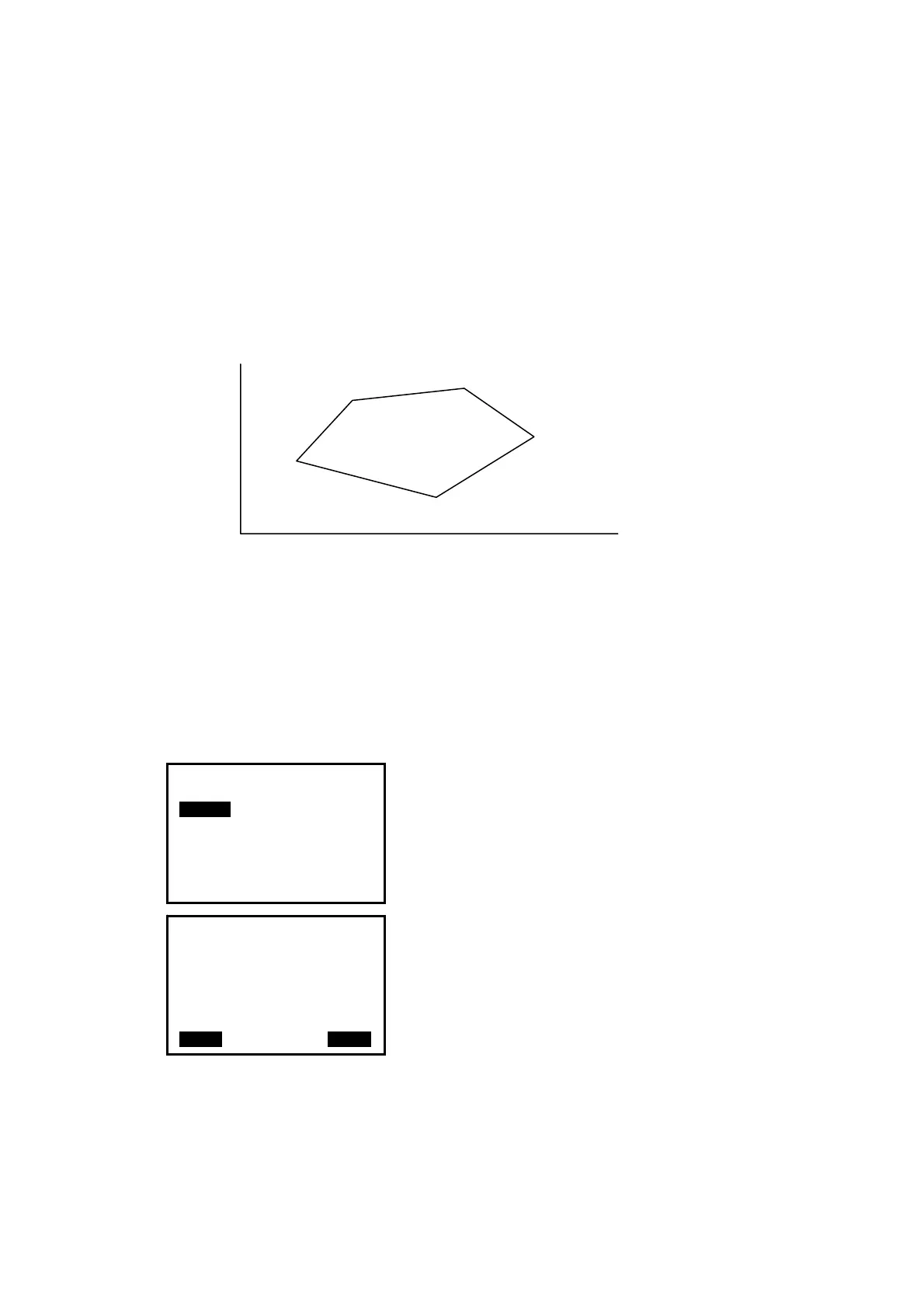

Calculate an area shaped with several points. The coordinate data of the points could be
either measured or input by hand.
Input: Output:
Coordinates: P1 (N1, E1) Area：S
P2 (N2, E2)
P3 (N3, E3)
…
NOTE:
◆ The number of points: 3 ~ 30.
◆ Make sure these points must be measured or listed clockwise or anticlockwise, or
mistake will result.
8.1 Area Calculation by Measured Data
【Procedure of area calculation】
1. Select F2: [
MENU]/ 3. Area /2.Area.
2. Aim at the first point, and then press F4: [MEAS].
Area
1.Occ.Orientation
2.Area
01:
02:
03:
04:
05:
06:
07:
READ MEAS
S
P1
P2
P3
P4
P5
E
0
N
