4. Press F3: [REC] to record the value as a known
point, see Ҥ20.1 Input Known Point Coordinate by
Keys”.
Press F4: [S-O] to stake out the required point, see
“§7. Stake out Measurement”.
Press key {
ESC} to continue.
14.3 Stake out Line/Line

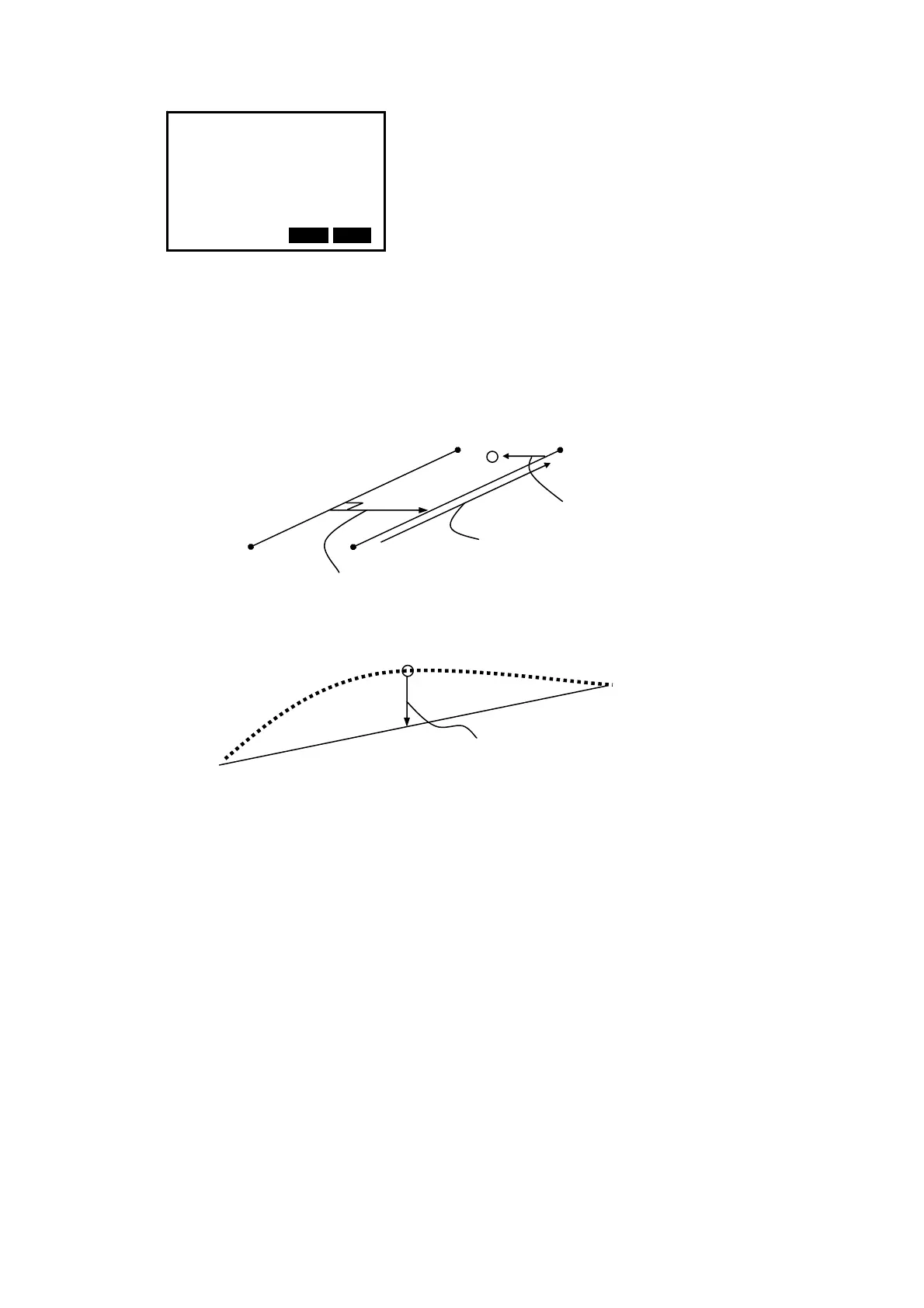

Stake out line-line tells how far horizontally the measured point is from the baseline and
how far vertically the measured point is from the connected line. Make sure to define a
baseline before this operation.
Offline: A positive value indicates the point is on the right of the baseline and a negative
value indicates it is on the left.
Cut: indicates that the point is below the baseline.
Fill: indicates that the point is above the baseline.
Length: distance along the baseline from 1
st
point to the measured point.
Offset (horizontal direction)
Length
Measured point
Offline (-)
1st Pt
Cut
2nd Pt
Measured point
Stake out line
Np:
Ep:
Zp:
REC S-O
0.000
0.000
0.000
Profile view
To Next Page
