17. Polar Coordinates Calculation
The coordinates of the end point could be calculated according to input azimuth, distance
and the NEZ coordinates of start point.
Input:
Coordinate of start point: N0,E0,Z0
Azimuth: Az
Distance: Dist
Output:
Coordinate of end point:N1,E1,Z1
【Procedure of Polarize】
1. Press F2: [
MENU] on P2 of the basic measurement
mode.
2. Turn to P2, select “
5.Polarize”.
3. Input the data in corresponding items. You could
press F1: [
READ] to read the existed coordinate data
for start point. Press F4: [
OK] to enter.
4. The calculated data displays. Press F3: [
REC] to
record it in the list, and press F1: [
OK] back to menu
mode.

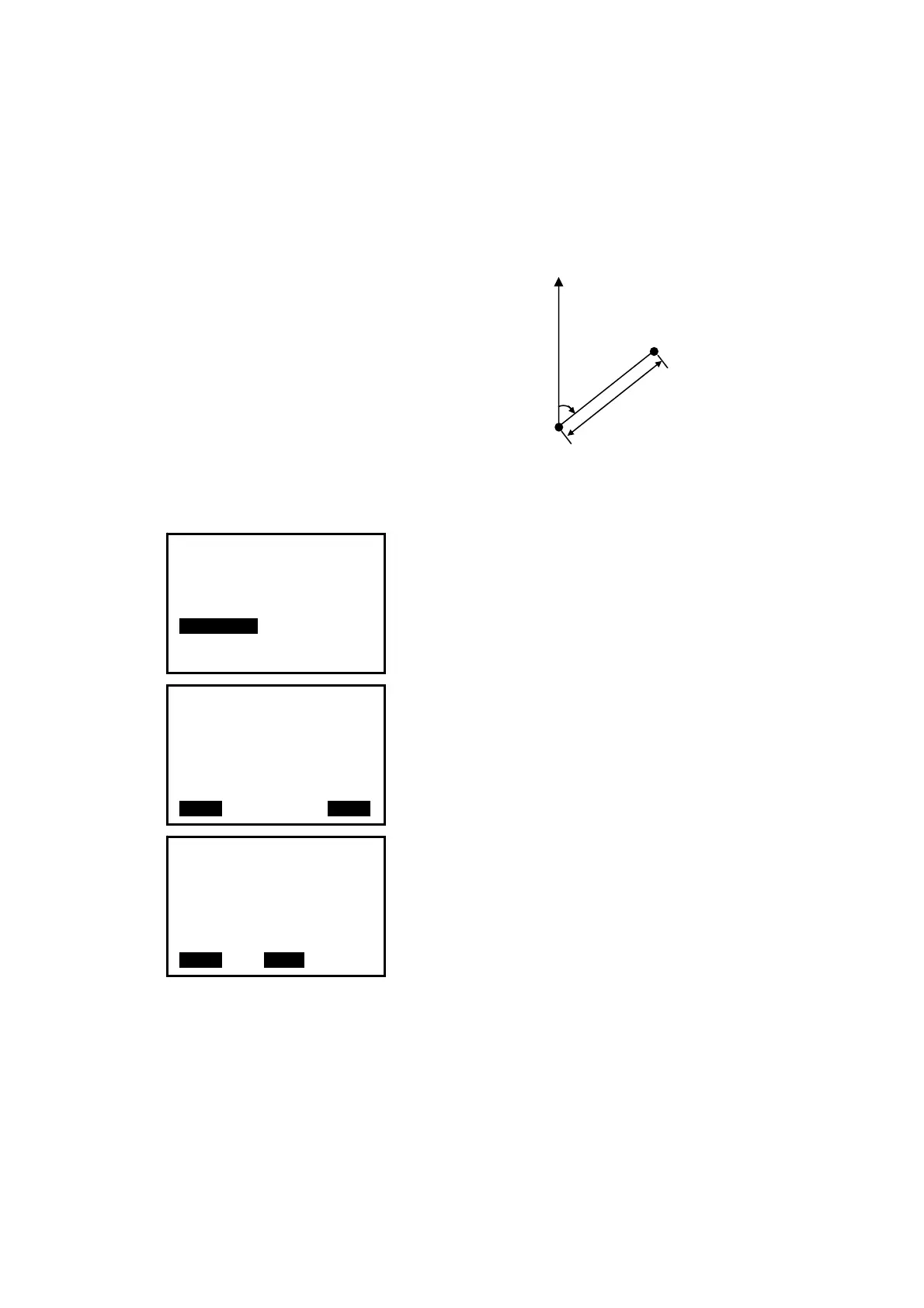

N
Start point
End point
D
Az
Menu P2
1.Point projection
2.Line stake out
3.Traverse
4.Inverse
5.Polarize
6.Repeat Measure
7.Arc staking out
Calc polar coord
Pt# C1
N 1000.000
E 1000.000
Z 39.383
Azimuth 1.0000gon
Dist 0.000ft
READ 0OK0
Calc polar coord
N 1000.000
E 1000.000
Z 0.000
0OK0 REC
