10. MLM
MLM is used to directly measure slope distance, horizontal distance and the height
difference from one base point to other points without moving the instrument.
NOTE:
◆ The last measured data could be set as the base point for the next starting operation.
◆ The height difference between one point and the base point could be displayed as
grade mode.
10.1 Measuring Distance between Two or More Points
【Procedure of measuring】
1. Press F2: [
MENU] at P2 in the measure mode.
Select “
5. MLM”.
2. Aim at the start point P1, then press F4: [
MEAS]
and the measured data will display.
3. Aim at the target point P2 and press F1: [
MLM] to
begin measure, SD, HD, VD will display.

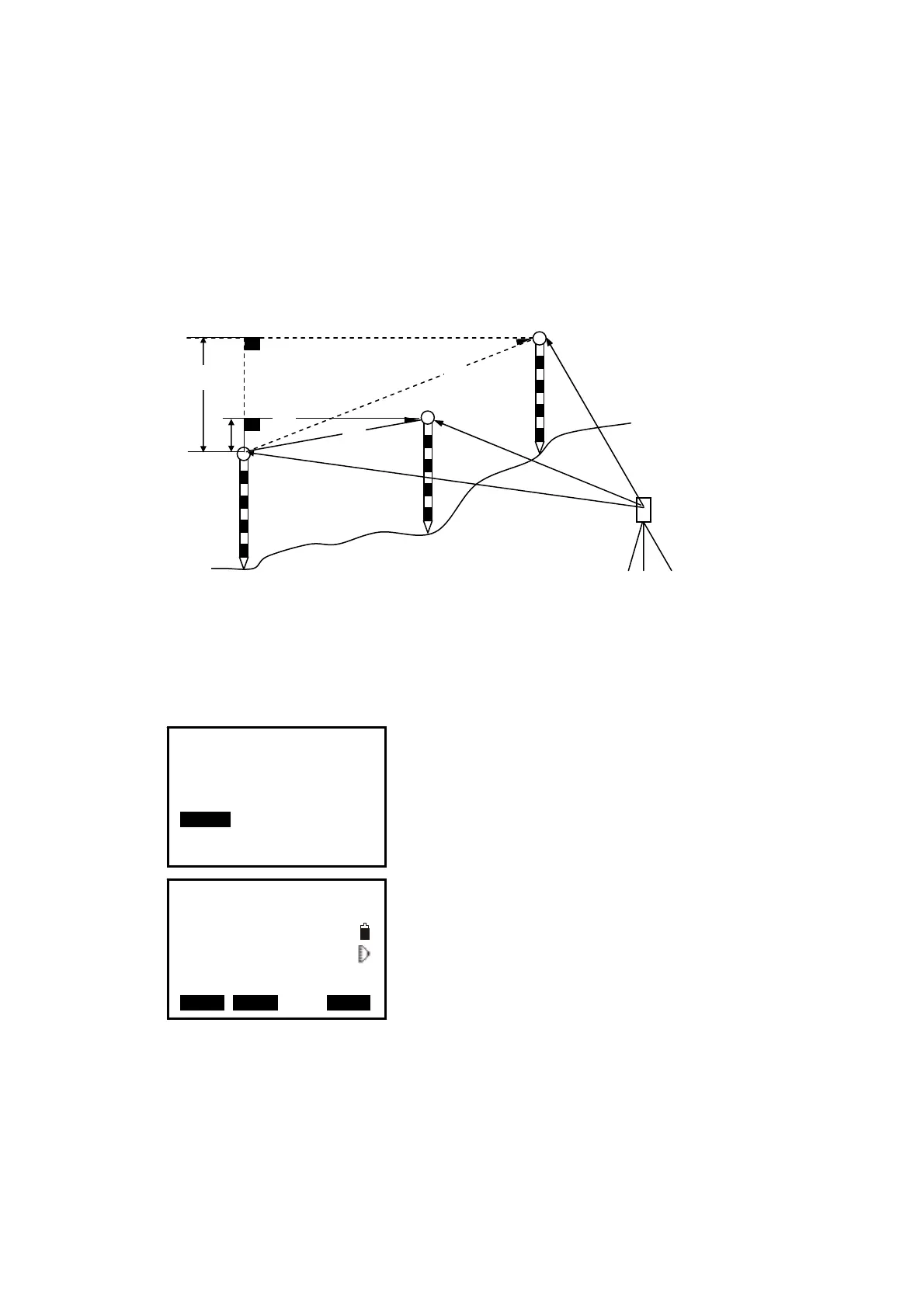

H2
H1
S2
S1 %1
%2
V2
V1
Target (P2)
Start point (P1)
Target (P3)
Occupied point
Menu P1
1.Coordinate
2.Stakeout
3.Area
4.Offset
5.MLM
6.REM
7.Resection
MLM
SD 33.421ft
HD 155.6594gon
VD 355.9246gon
I
MLM MOVE MEAS
