Infratec™ 1241 Grain Analyzer
Service Manual 1001 5015 / Rev. 4 4:41
4.12.3 Status Word 1
Presents the status of the system when the error occurred.

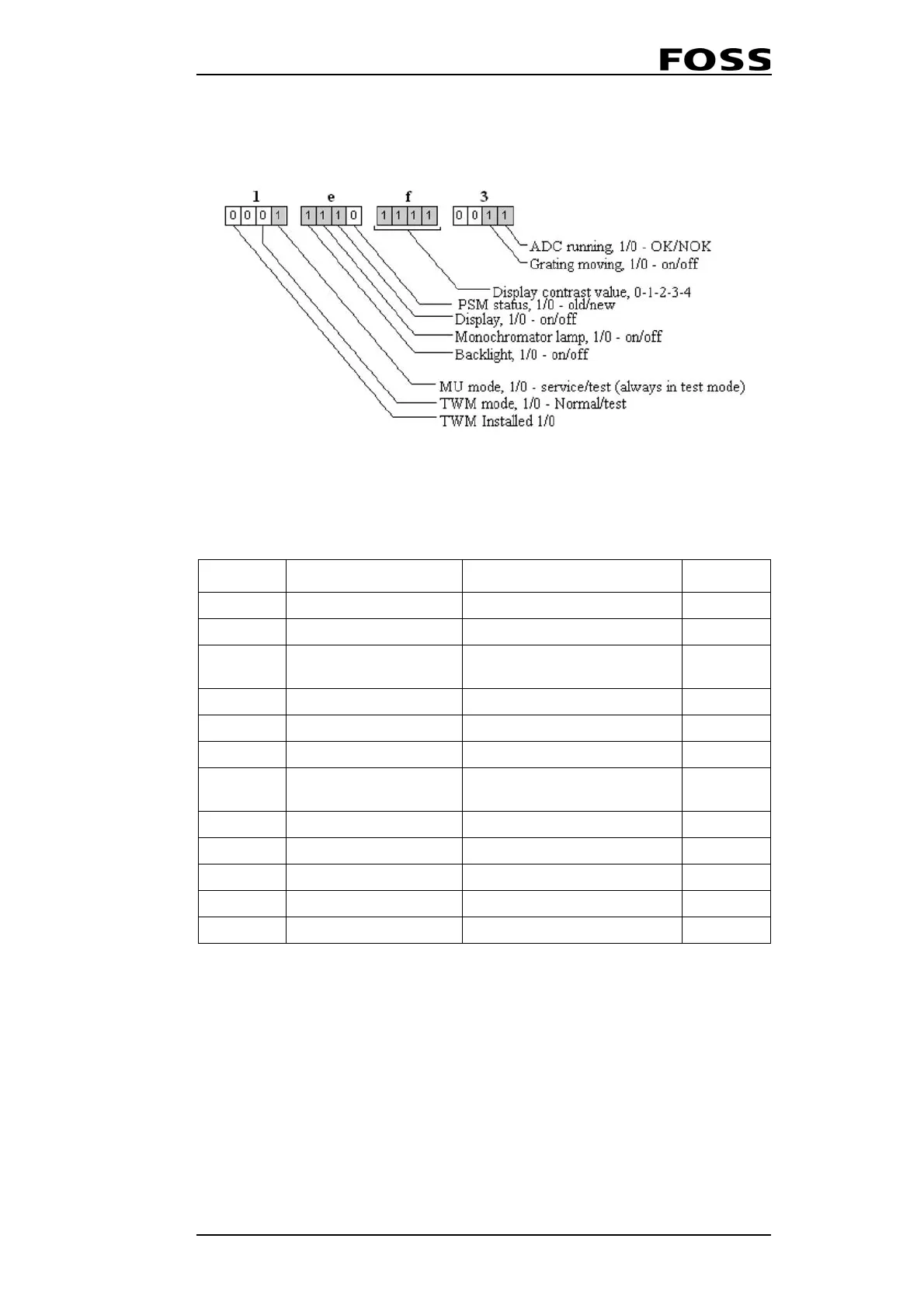

Fig. 4:16
Position in instrument Hardware Error Code in bold:
E.g. "20 - 304/1ef3/201/20/0/0/0/450".
Id (hex) Specification Note Source
0001 ADCRunning ADC communication is OK ADC
0002 GratingMotorEnable Grating motor: 0/1 - off/on DSP
0004 ExerciseModeEnable
Exercise ball bearing in grating
motor: 0/1 - off/on
DSP
00F0 DisplayContrastValue Contrast of display PSM
0100 PSM status 0/1 - old/new PSM
0200 DisplayEnable Display: 0/1 - off/on PSM
0400 LampEnable
Monochromator lamp: 0/1 - off/
on
PSM
0800 BacklightEnable Backlight: 0/1 - off/on PSM
1000 MUMode Mode of MU, 0/1 - normal/test MU
2000 TWMMode Mode of TWM, 0/1 - normal/test TWM
4000 AbortedCommand Aborted command indication MU/TWM
8000 TWMInstalled Test Weight Module is installed DSP
