Infratec™ 1241 Grain Analyzer

Service Manual 1001 5015 / Rev. 4 5:43

5.3.8 Replacement of Measuring Unit PCB

Note: The replacement is carried out with the Measuring Unit

standing apart.

Note: Use electrostatic discharge (ESD) protection when handling

circuit boards.

1. Disconnect cables and remove the Measuring Unit Board.

2. Mount the new Measuring Unit Board and connect the cables according to fig

below.

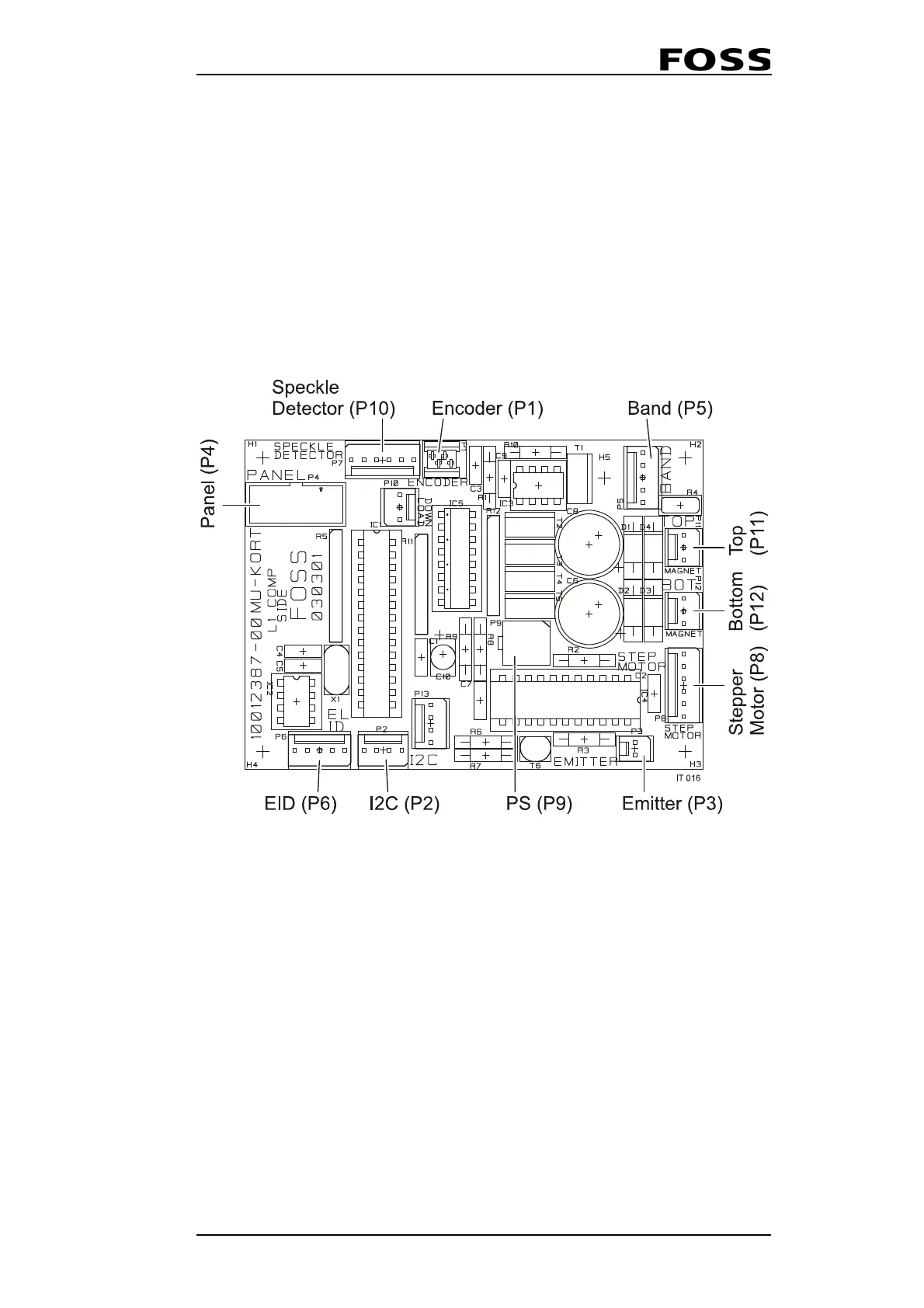

Fig. 5:44 Connections on the MU Board
