Foss Infratec 1241 - Replacement of Lower Linkage Shutter Assembly

Infratec™ 1241 Grain Analyzer
5:40 Service Manual 1001 5015 / Rev. 4
5.3.5 Replacement of Lower Linkage Shutter Assembly
Note: The replacement is carried out with the Measuring Unit
standing apart.
Note: You have to switch over the plunger.
1. Disconnect the Lower Solenoid Cable from the Measuring Unit Board.
2. Remove the two screws holding the Lower Solenoid and remove the Lower
Shutter.
3. Remove the two screws holding the Lower Linkage, see fig below, and remove
it.

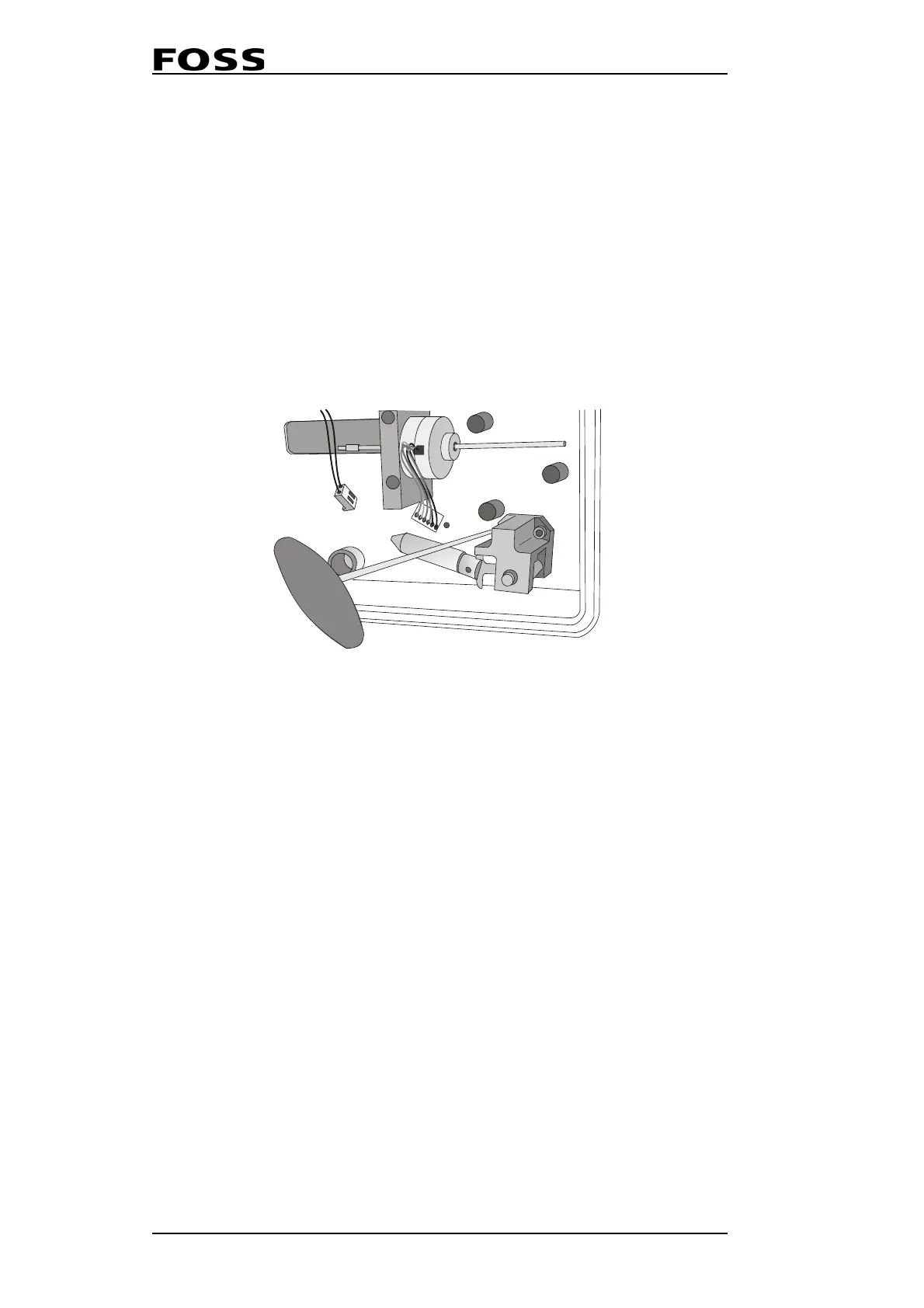

Fig. 5:41 Screws holding the Lower Linkage
4. Exchange the Lower Linkage and assemble in reverse order.
1241109
