Infratec™ 1241 Grain Analyzer
Service Manual 1001 5015 / Rev. 4 4:25
4.5 Manual Tests
To exercise all of the instrument low-level hardware commands. All the tests below
are addressed one by one and performed in manual order.

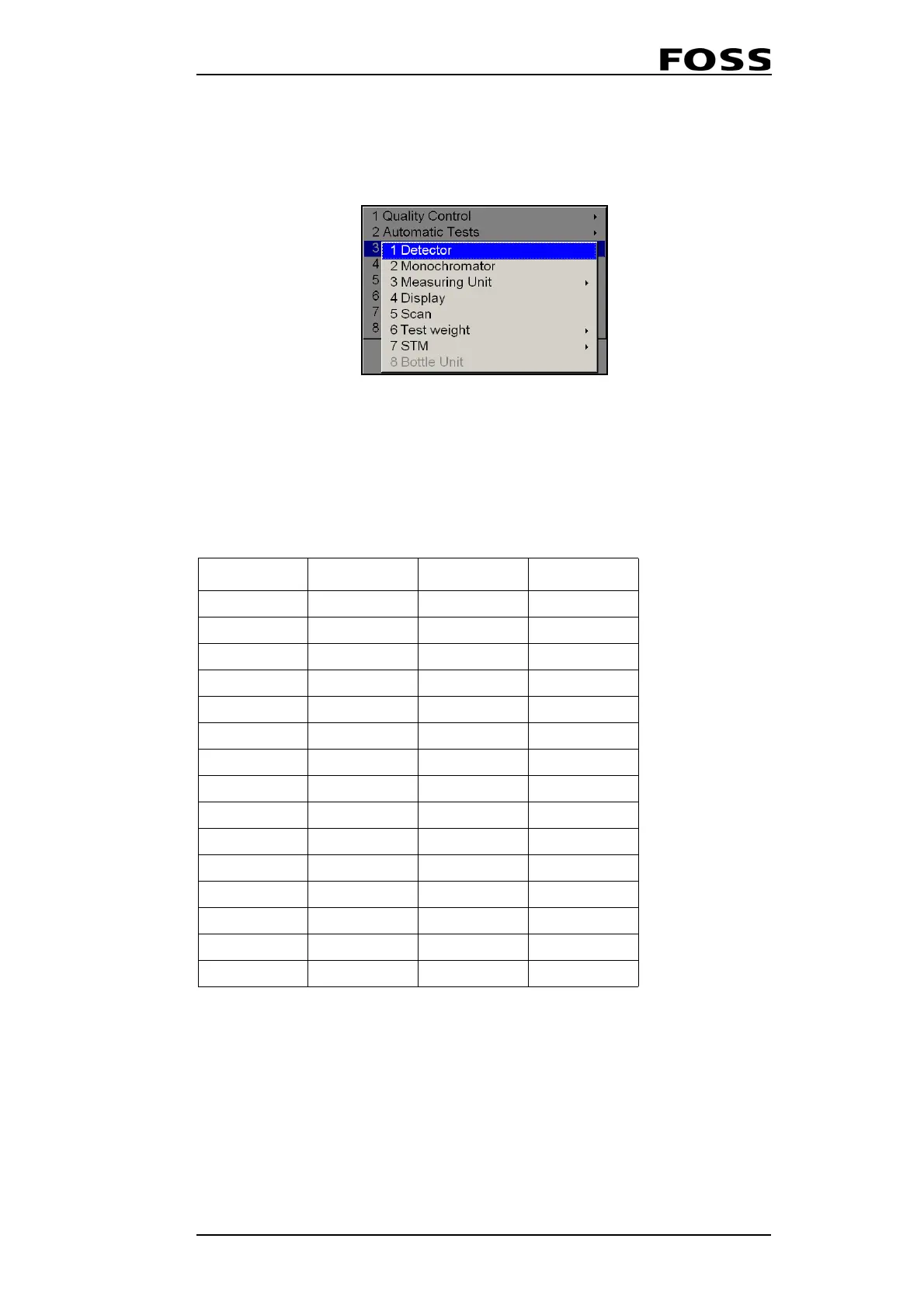

Fig. 4:11 Manual Tests
4.5.1 Detector
Available options:
• Set Gain value
• Read Gain value
• Read detector temperature
4.5.2 Monochromator
Available options:
• Set shutter position
• Read shutter position
• Set lamp On/Off
• Set grating motor On/Off
Gain Pre Gain Main Gain Total Gain
1 1 1 1x1
2 1 2 1x2
3 1 4 1x4
4 1 8 1x8
5 1 16 1x16
6 31 1 31x1
7 31 2 31x2
8 31 4 31x4
9 31 8 31x8
10 31 16 31x16
11 1000 1 1000x1
12 1000 2 1000x2
13 1000 4 1000x4
14 1000 8 1000x8
15 1000 16 1000x16
