Foss Infratec 1241 Service Manual

Infratec™ 1241 Grain Analyzer
Service Manual 1001 5015 / Rev. 4 5:29
5.2.10 Replacement of DSP Board
NOTE! Use ESD protection when handling circuit boards.
1. Switch off the instrument.
2. Carefully remove the covers for the five holes in the left-hand door with a
screwdriver.
3. Open the left-hand door.
4. Disconnect the P1 cable from the DSP Board.

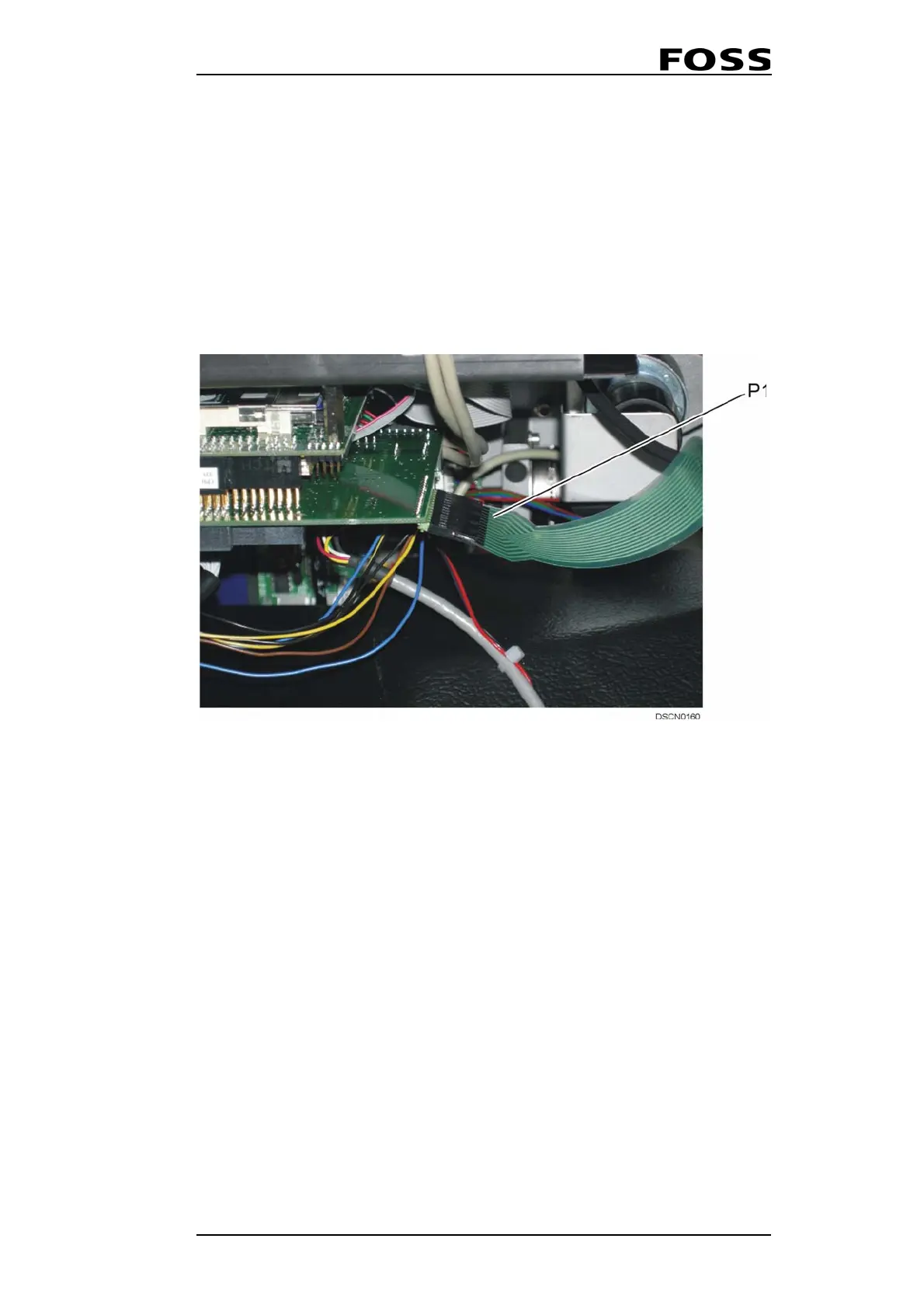

Fig. 5:31 DSP Board
P1 Keypad
