Infratec™ 1241 Grain Analyzer
5:50 Service Manual 1001 5015 / Rev. 4
5.3.15 Drawer Sensor Cable, rerouting
NOTE: It is very important that the test weight balance assembly
is free from cables.
1. Switch off the instrument.
2. Lift up the hopper section and open the right-hand door.
3. Disconnect the drawer sensor cable 1 from the lower socket.

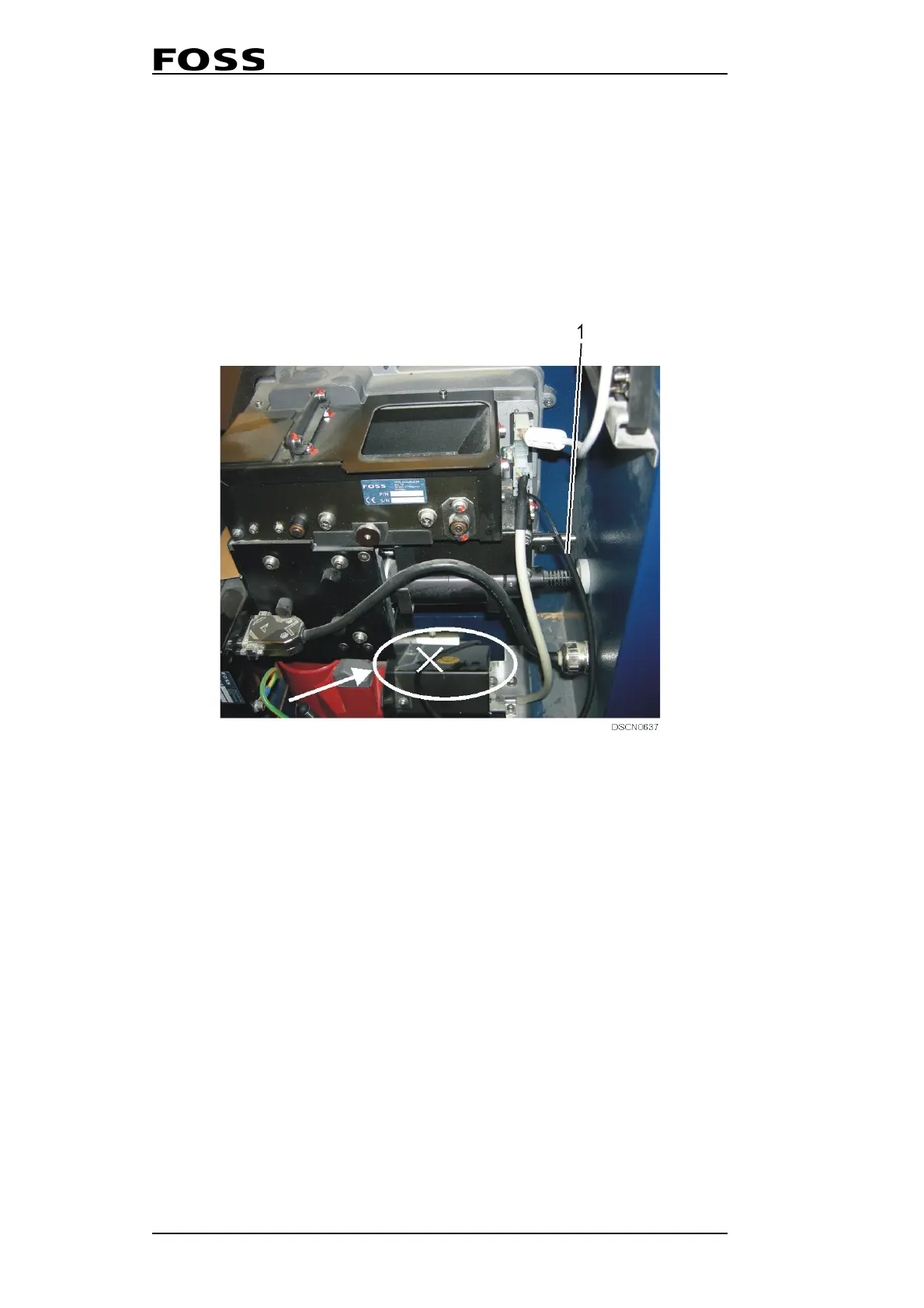

Fig. 5:49 Test Weight Balance Assembly
1 Drawer sensor cable
