Infratecâ„¢ 1241 Grain Analyzer
5:8 Service Manual 1001 5015 / Rev. 4

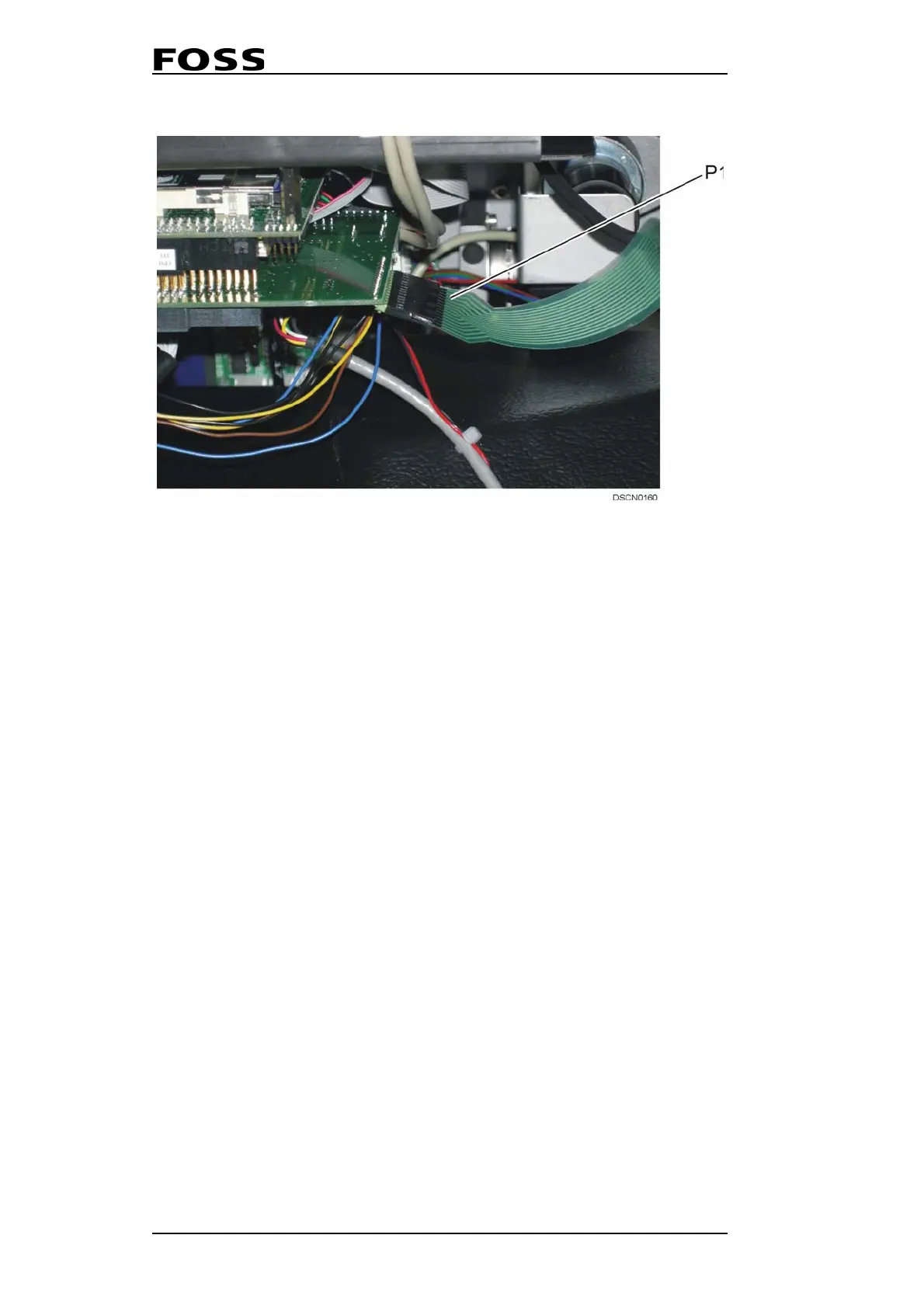

Fig. 5:9 DSP Board
5.2.3 Replacement of Detector Unit Complete
(P/N 1000 9777)
1. Turn off the instrument and remove the mains cable.
2. Lift up the hopper section and open the right-hand door.
3. Disconnect the detector cable by unscrewing the screws on either side of the
connector and pulling it straight backwards.
4. Remove the screw on the lower right side of the detector which fastens it to the
main chassis. The lower right side is also functioning as a grounding plate. It can
be exchanged for a grounding cable. It is extremely important that this
grounding function is maintained i.e. use tagged washers on both sides of the
cable/plate.
P1 Keypad
