Infratec™ 1241 Grain Analyzer
3:4 Service Manual 1001 5015 / Rev. 4
3.2.2 Preparation of the Test Weight Module for assembly
To prepare the Test Weight Module for assembly, perform the following:
1. Place the Test Weight Module on a workbench. The workbench should be as
level as possible. The workbench should also be as free from vibrations as
possible.
2. Adjust the four feet under the plinth, see Fig. 3:6 below. Use a level guide to
level the Test Weight Module.

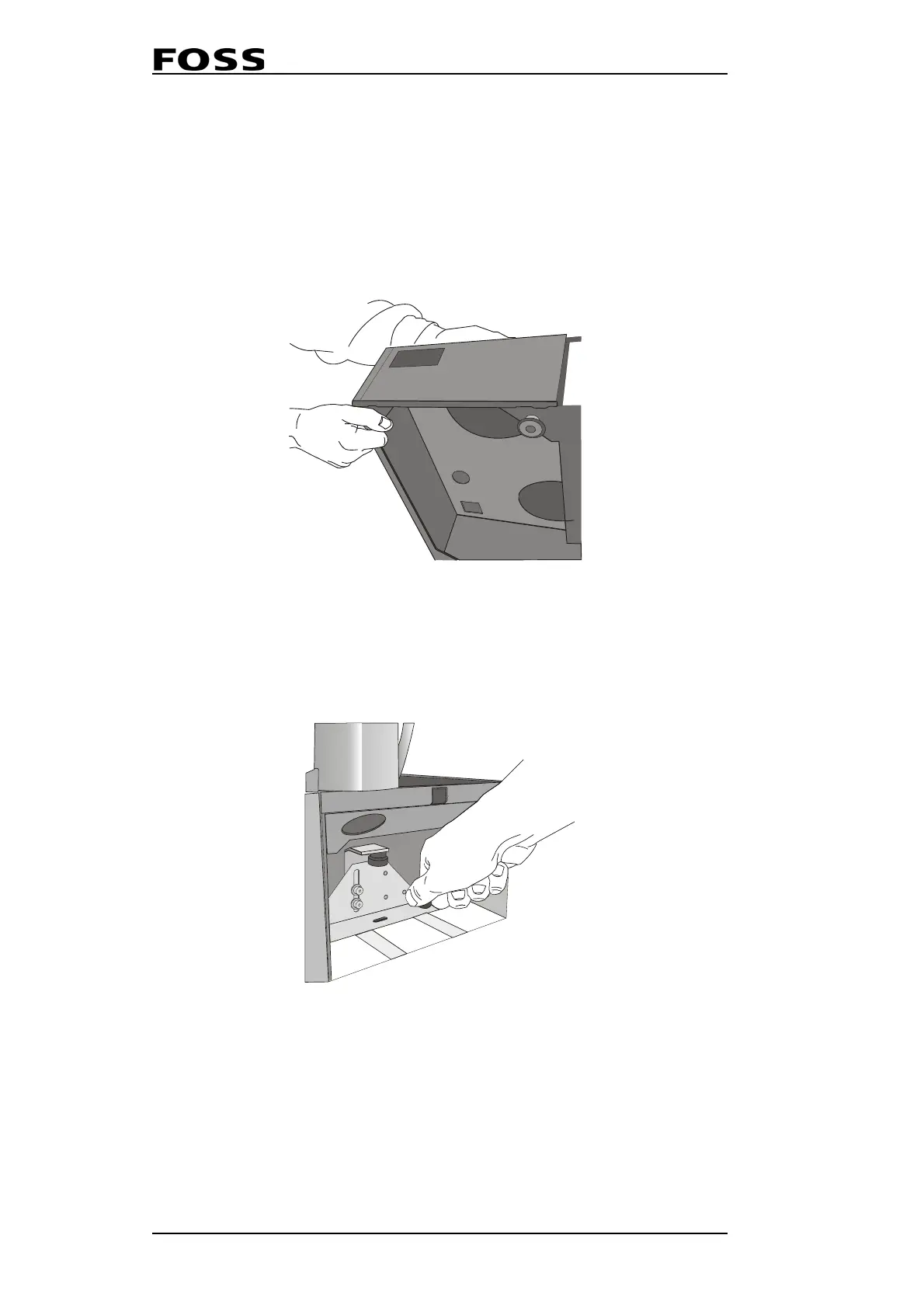

Fig. 3:6 Adjustment of feet
3. Loosen the three letter screws on the Front Transport Securing Device, see
Fig. 3:7 below. Store them in the extra holes on the Front Transport Securing
Device.
Fig. 3:7 Letter screws on Front Transport Securing Device
