Infratec™ 1241 Grain Analyzer
Service Manual 1001 5015 / Rev. 4 3:3
6. Remove the bottom plate by loosening the four screws with
a 3 mm allen wrench, see Fig. 3:4 below.

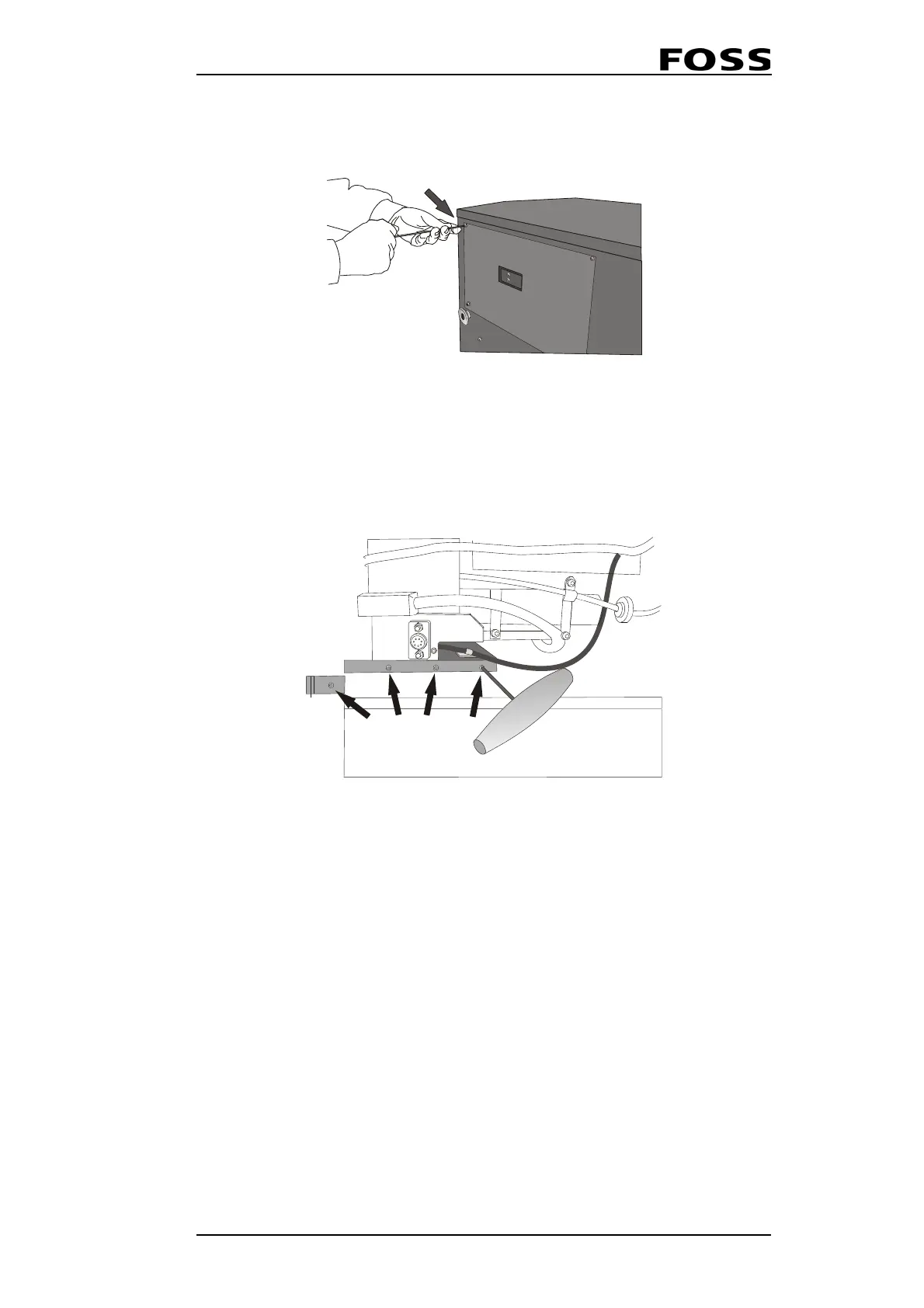

Fig. 3:4 Bottom plate
7. Remove the collection drawer guides (two on each side). This is done by
unscrewing the screws with a 4 mm allen wrench, see
Fig. 3:5 below. Remount
four short screws in the holes on the left side (the instrument side). This is to
prevent dirt from getting into the Infratec.
Fig. 3:5 Collection drawer guides
8. Close the right-hand door and lower the hopper section to its fully closed
position.
