Infratec™ 1241 Grain Analyzer
3:2 Service Manual 1001 5015 / Rev. 4
2. Disconnect the collection drawer sensor cable connector (1) from the Measuring
Unit, see
Fig. 3:2 below.

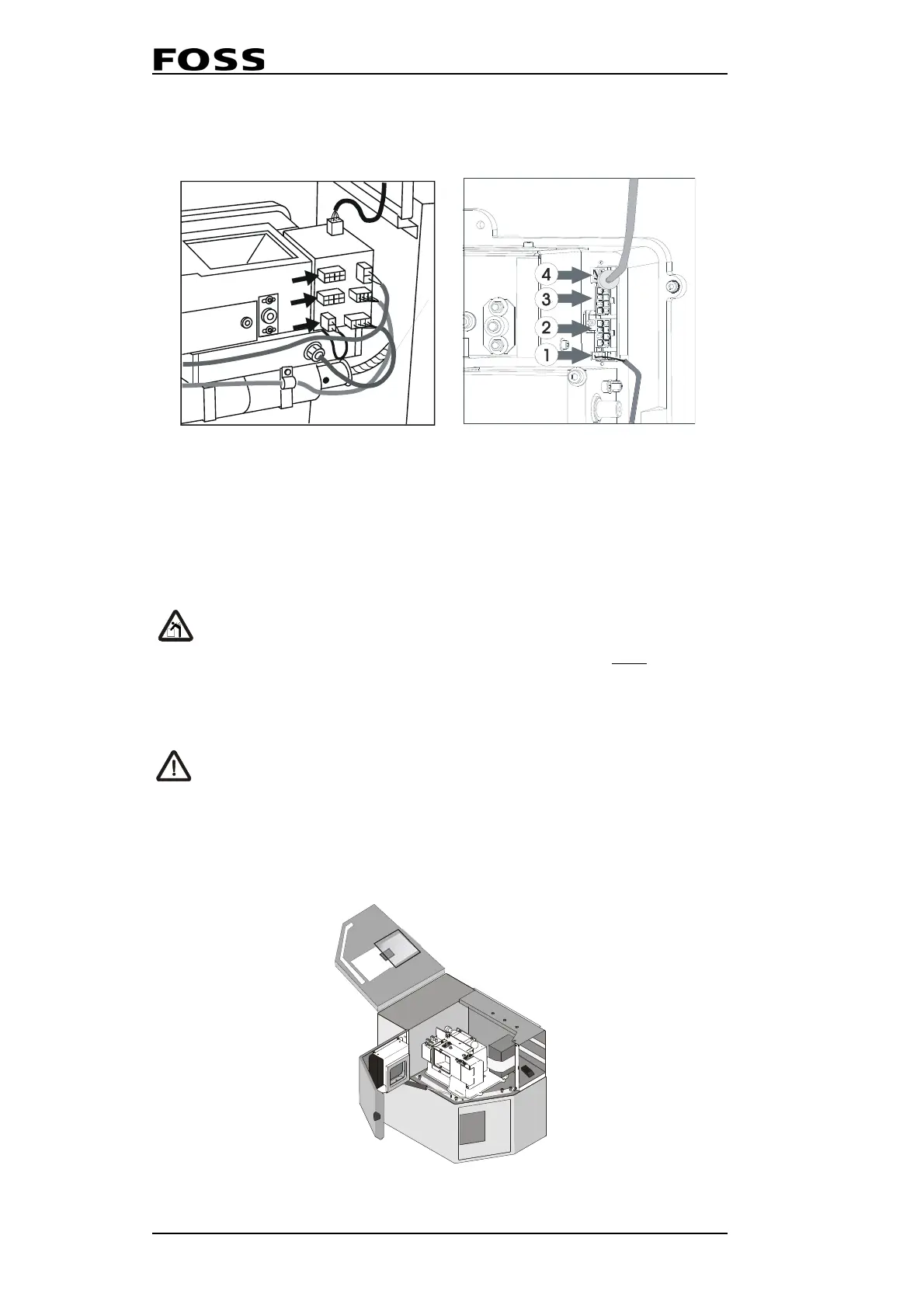

Fig. 3:2 Collection drawer sensor cable,
Measuring Unit Gen. I (left) and Measuring Unit Gen. II (right)
The next step requires that the instrument be tilted on its left side. Before this can be
done, there must be adequate workbench space and a soft padding (or equivalent)
must be laid where the instrument will be tilted on its side.
Warning
The tilting of the instrument must be performed by two persons.
3. Gently tilt the instrument and lay it to rest on its left side.
4. Remove the sample collection drawer from the instrument.
Caution
Open the right-hand door carefully when the instrument is in
tilted position. The door may brake if incautios.
5. Lift the hopper section to its fully upright position and then open the right-hand
door, see
Fig. 3:3 below.
Fig. 3:3 Right hand door opened
