Foss Infratec 1241 Service Manual

Infratec™ 1241 Grain Analyzer
5:66 Service Manual 1001 5015 / Rev. 4
5.5.2 Replacement of STM Cuvette Cam Thread
This instruction is valid for STM cuvette part no:
• 10012592 (type 1)
• 10013213 (type 1)
• 10014163 (type 1)
• 10011075 (type 2)
Replacement - type 1
1. Remove the two grub screws 1, see Fig. 5:67.

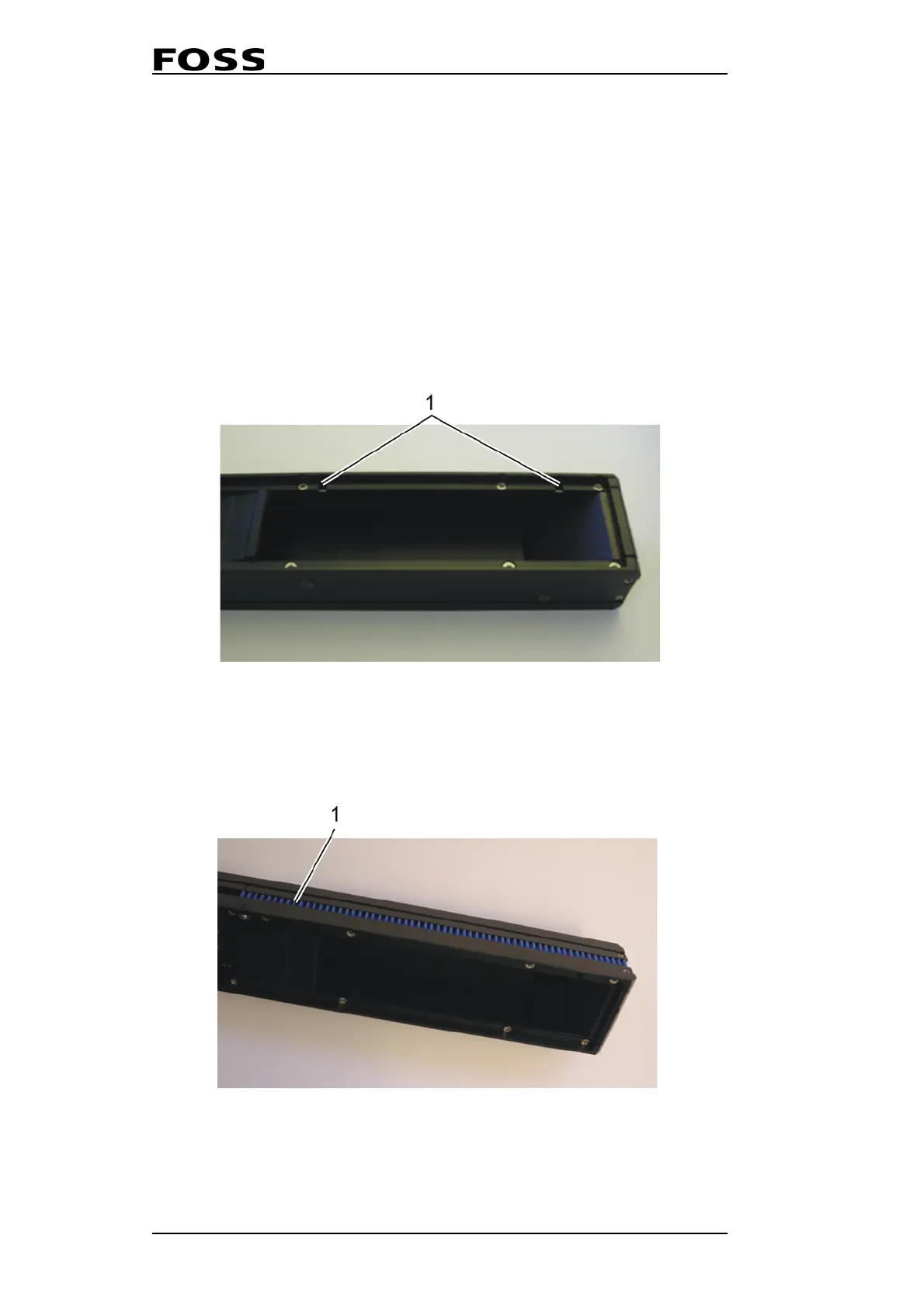

Fig. 5:67 STM cuvette
2. Remove the old cam thread 1, see Fig. 5:68, by sliding it down and out through
the open end. If the cam thread is stuck use a screwdriver and a hammer to gently
knock it loose.
Fig. 5:68 Removing cam thread
