Foss Infratec 1241 - Replacement of PC Module Complete W;O Flash Disc

Infratec™ 1241 Grain Analyzer
Service Manual 1001 5015 / Rev. 4 5:23
5.2.9 Replacement of PC Module Complete w/o Flash Disc
NOTE! Use ESD protection when handling circuit boards.
1. Switch off the instrument.
2. Carefully remove the covers for the five holes in the left-hand door with a
screwdriver.
3. Open the left-hand door.
4. Disconnect the P1 cable from the DSP Board.

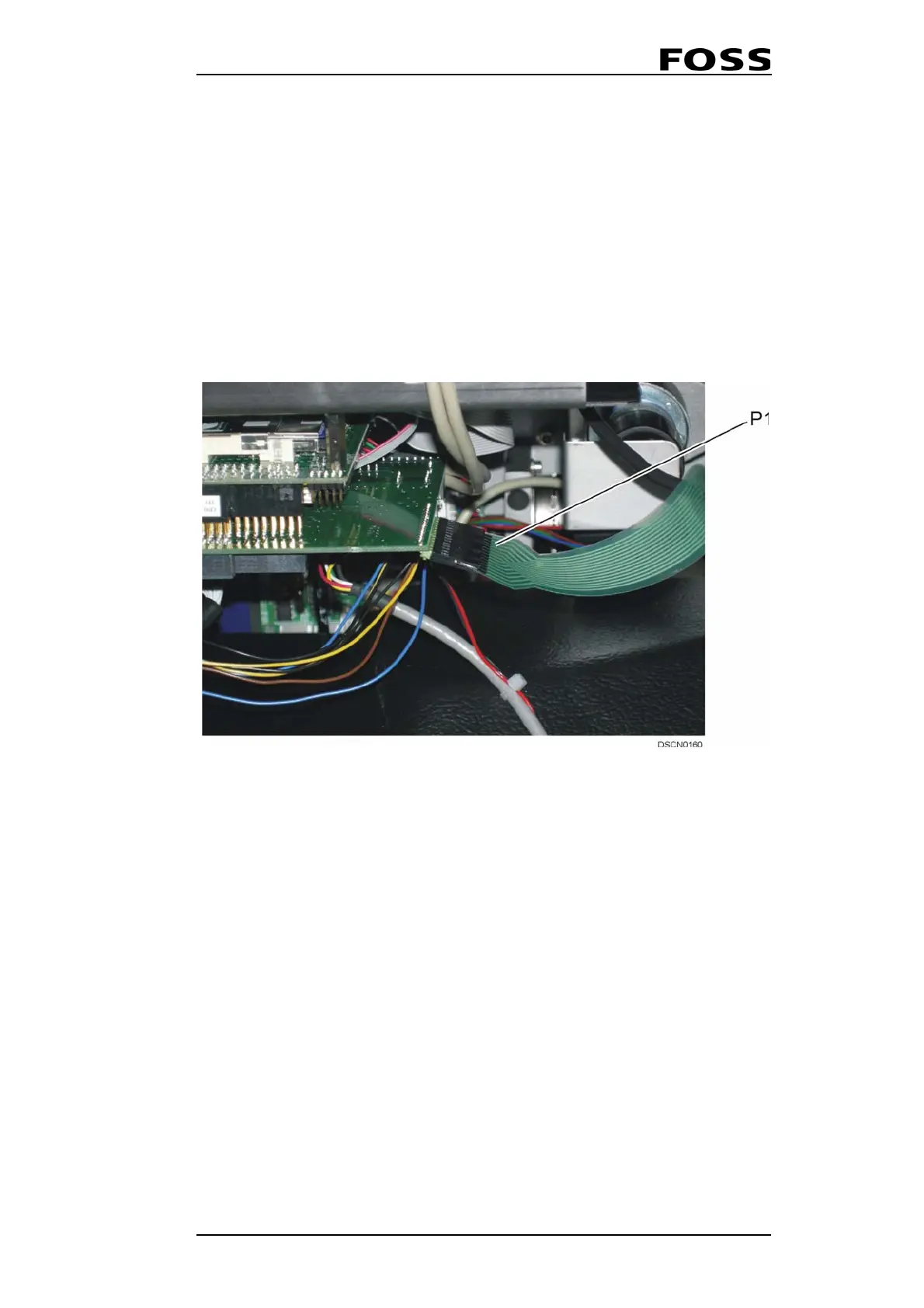

Fig. 5:25 DSP Board
P1 Keypad
