8. Remove the six screws 1 together with the washers and lift away the Interface
Module.

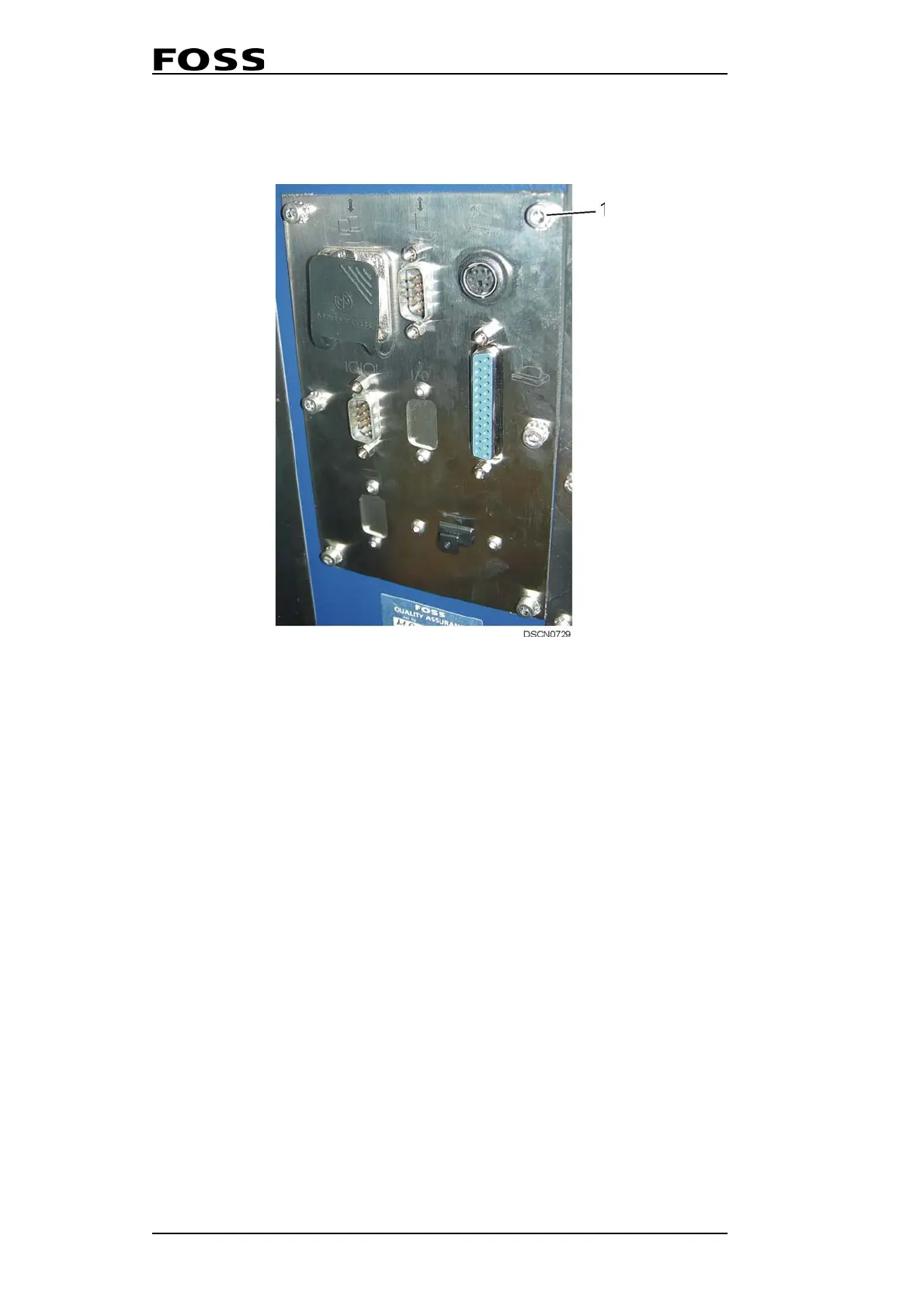

Fig. 5:24 Interface Module
9. Fit the new Interface Module with the six screws together with the washers.
10. Carefully connect the two interface cables to the Processor Board.
11. Connect the four interface cables that are on the left side of the PC Module.
12. Tilt up the PC Module and fit the two locking nuts holding the PC Module.
13. Connect the P1 cable to the DSP Board.
14. Check that all cables are tightly into place.
15. Close the left-hand door and fit the new covers.
16. Switch on the instrument.
1 Screw
