Infratec™ 1241 Grain Analyzer
Service Manual 1001 5015 / Rev. 4 5:21
7. Carefully disconnect the two interface cables from the Processor Board.

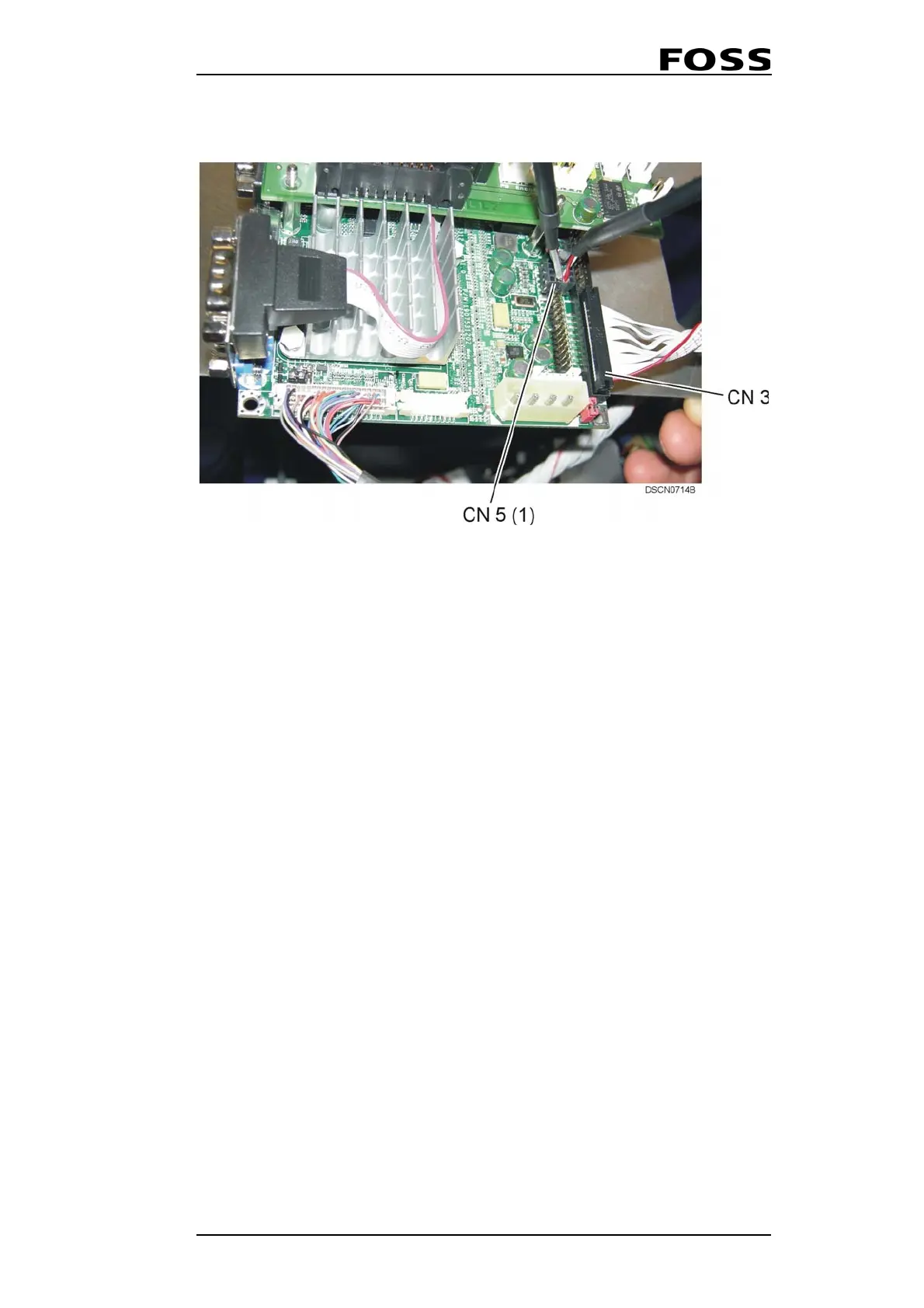

Fig. 5:23 Processor Board
CN3 Printer Interface CN5(1) USB Interface
