Infratecâ„¢ 1241 Grain Analyzer
Service Manual 1001 5015 / Rev. 4 5:67
3. Slide in the new cam thread through the open end.
The lower end of the new cam thread should align with the groove in the cuvette
see
Fig. 5:69.

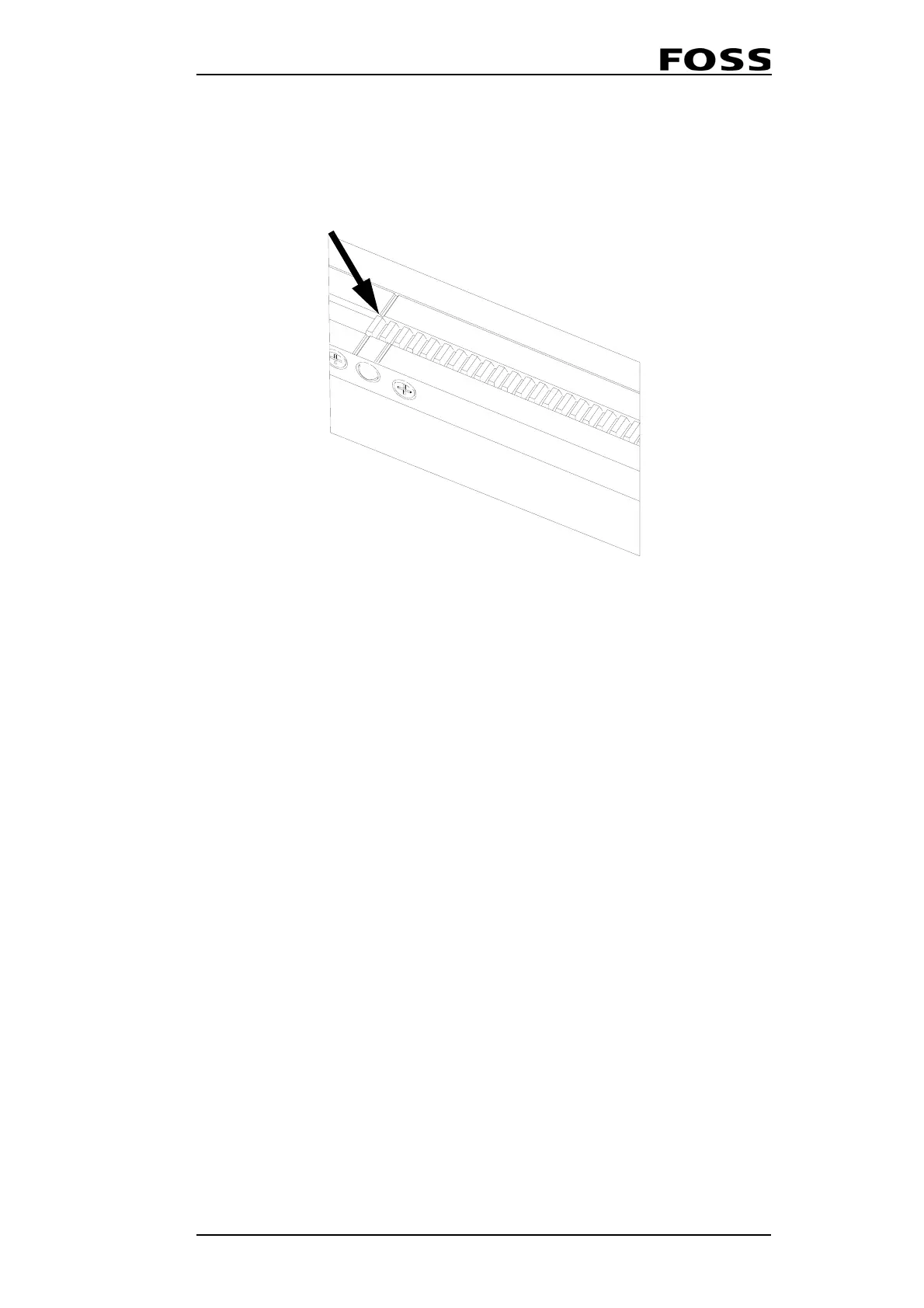

Fig. 5:69 Installing cam thread
4. Fit the two grub screws. Be careful not to overtighten the screws since the cam
thread is made of a soft material.
Replacement - type 2
1. Unscrew the two grub screws 1, see Fig. 5:70.
2. Unscrew the two screws holding the bottom plate 3.
3. Remove the old cam thread 2 by sliding it down and out through the open end.
If the cam thread is stuck use a screwdriver and a hammer to gently knock it
loose.
4. Cut the new cam thread to a length of 160 mm.
5. Slide in the new cam thread through the open end
