6. The lower end of the new cam thread 2 should be placed 191mm from the top
part of the cuvette see
Fig. 5:70.
7. Refit the bottom plate 3 and tighten the grub screws 1. Be careful not to over
tighten the screws since the cam thread is made of a soft material.

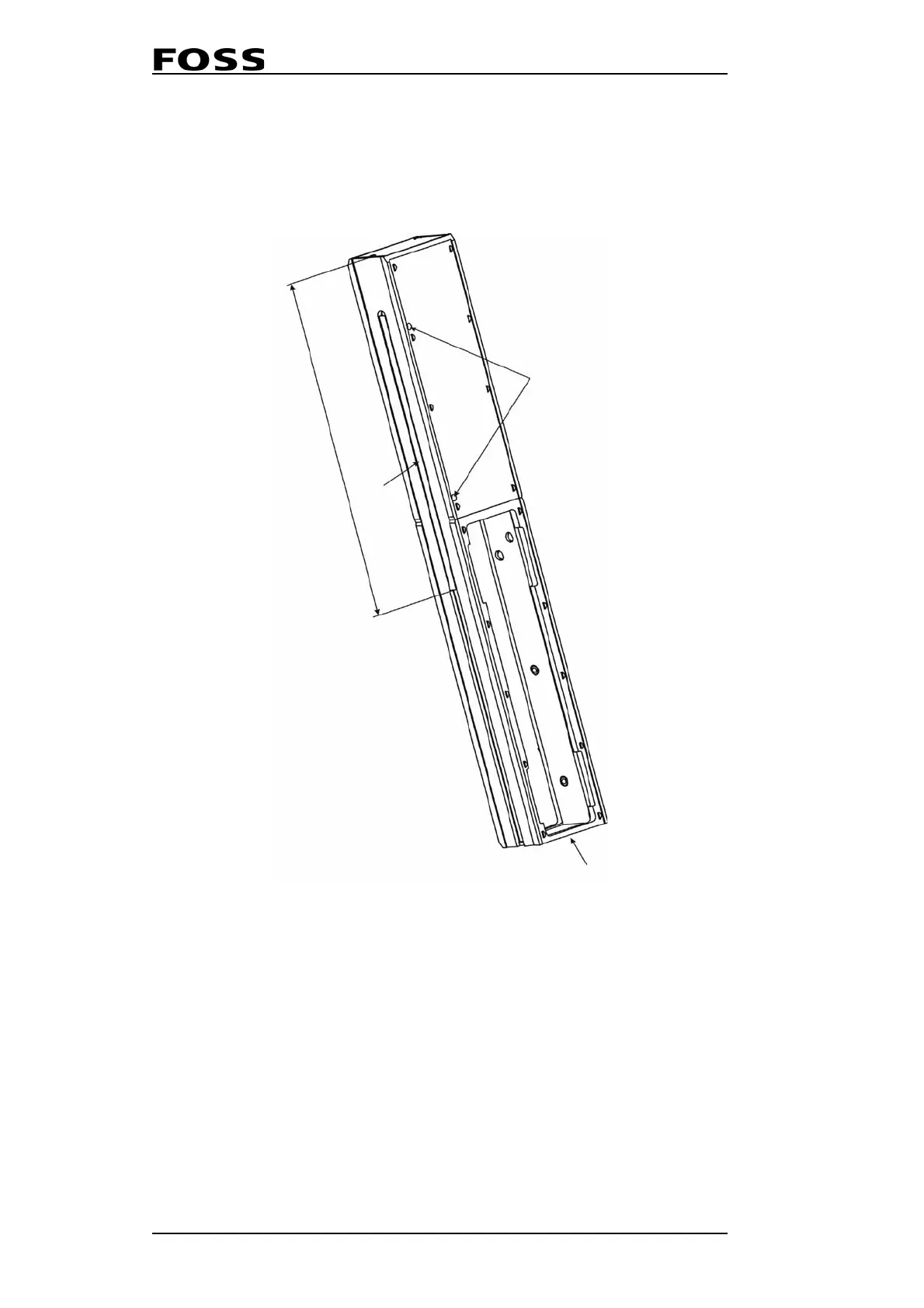

Fig. 5:70 STM cuvette
1 Screw 3 Bottom plate
2 Cam thread
1
3
2
191 mm
