Infratec™ 1241 Grain Analyzer
Service Manual 1001 5015 / Rev. 4 3:5

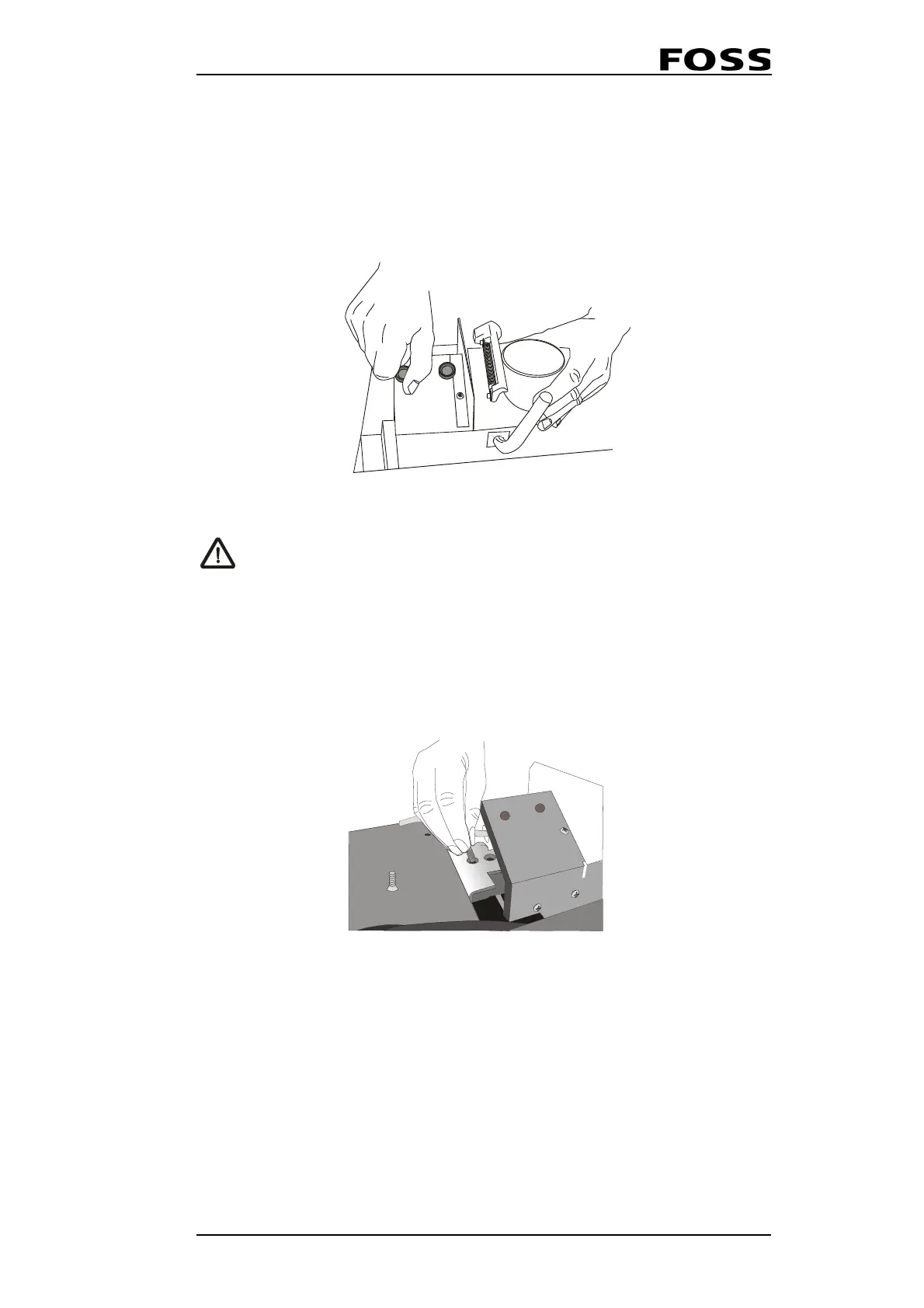

4. Loosen the two letter screws on the Back Transport Securing Device and grip
the Test Weight Module at the same time so that it will not fall, see
Fig. 3:8
below. Use the two letter screws to fasten the Front Transport Securing Device
on the block situated behind the Test Weight Module.
Fig. 3:8 Screws on Back Transport Securing Device
Warning
Never perform step 5 with the Back Transport Securing Device
tightened.
5. Fasten the two allen screws hard with a 4 mm allen wrench, see Fig. 3:9 below.
Grip the Test Weight Module at the same time so that you can feel that it is
getting positioned.
Fig. 3:9 Allen screws
6. Use the enclosed labels to cover the two holes from the letter screws.
