10. Transfer Flash Disk from old to new PC Module or install a new Flash Disk. For

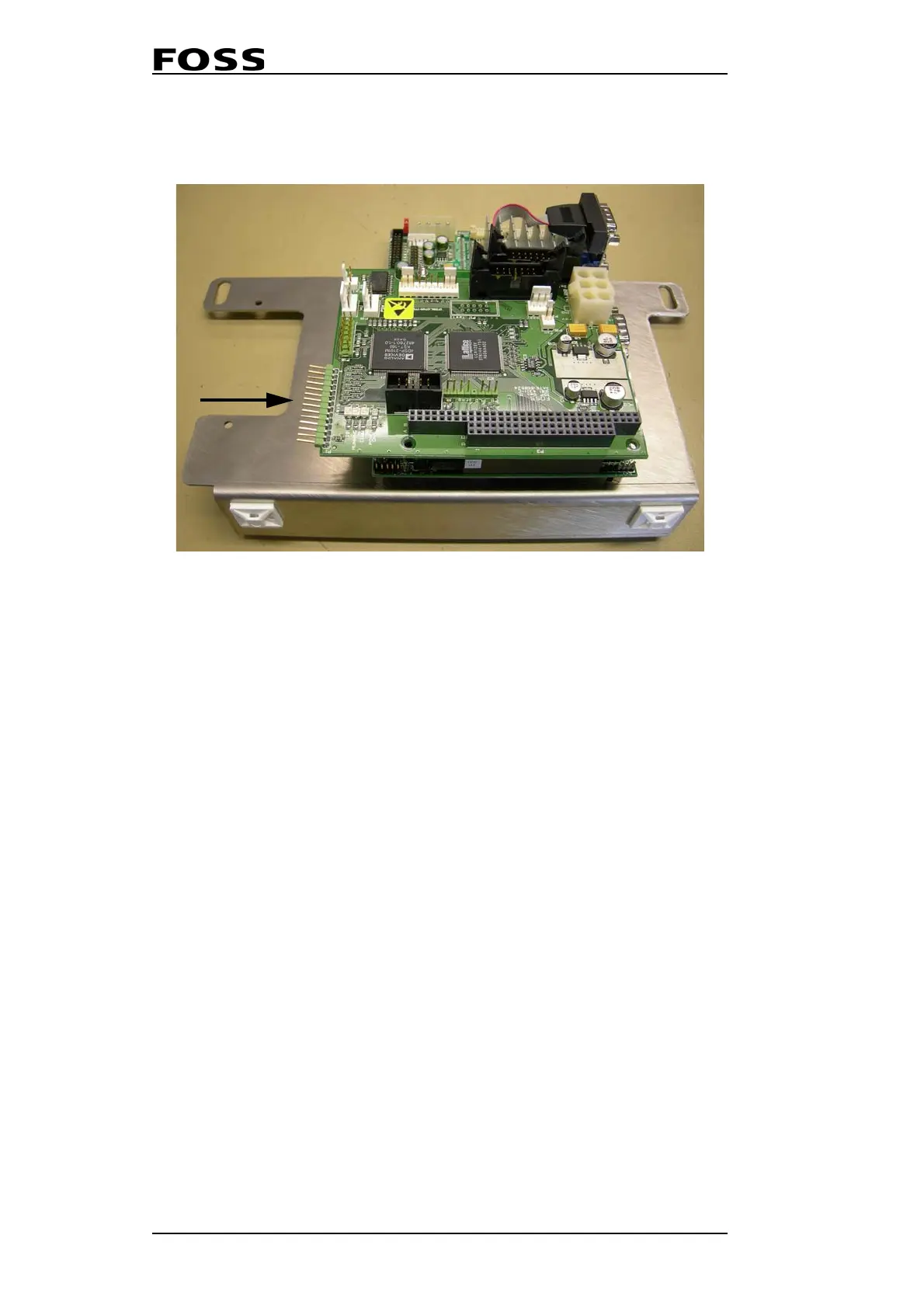

localization of Flash Disk, see figure below.
Fig. 5:30 PC Module
11. Fit the new PC Module.
12. Carefully connect the four cables to the Processor Board.
13. Connect the eight cables to the DSP Board.
14. Connect the four interface cables that are on the left side of the PC Module.
15. Tilt up the PC Module and fit the two locking nuts holding the PC Module.
16. Fit two new cable ties to secure the USB cables.
17. Connect the P1 cable to the DSP Board.
18. Check that all cables are tightly into place.
19. Close the left-hand door and fit the new covers.
20. Switch on the instrument.
