Infratec™ 1241 Grain Analyzer

Service Manual 1001 5015 / Rev. 4 5:27

8. Carefully disconnect the four cables from the Processor Board.

NOTE! The display cable at CN12 is extremely sensitive. Do not

pull the wires. Make sure you pull the connector.

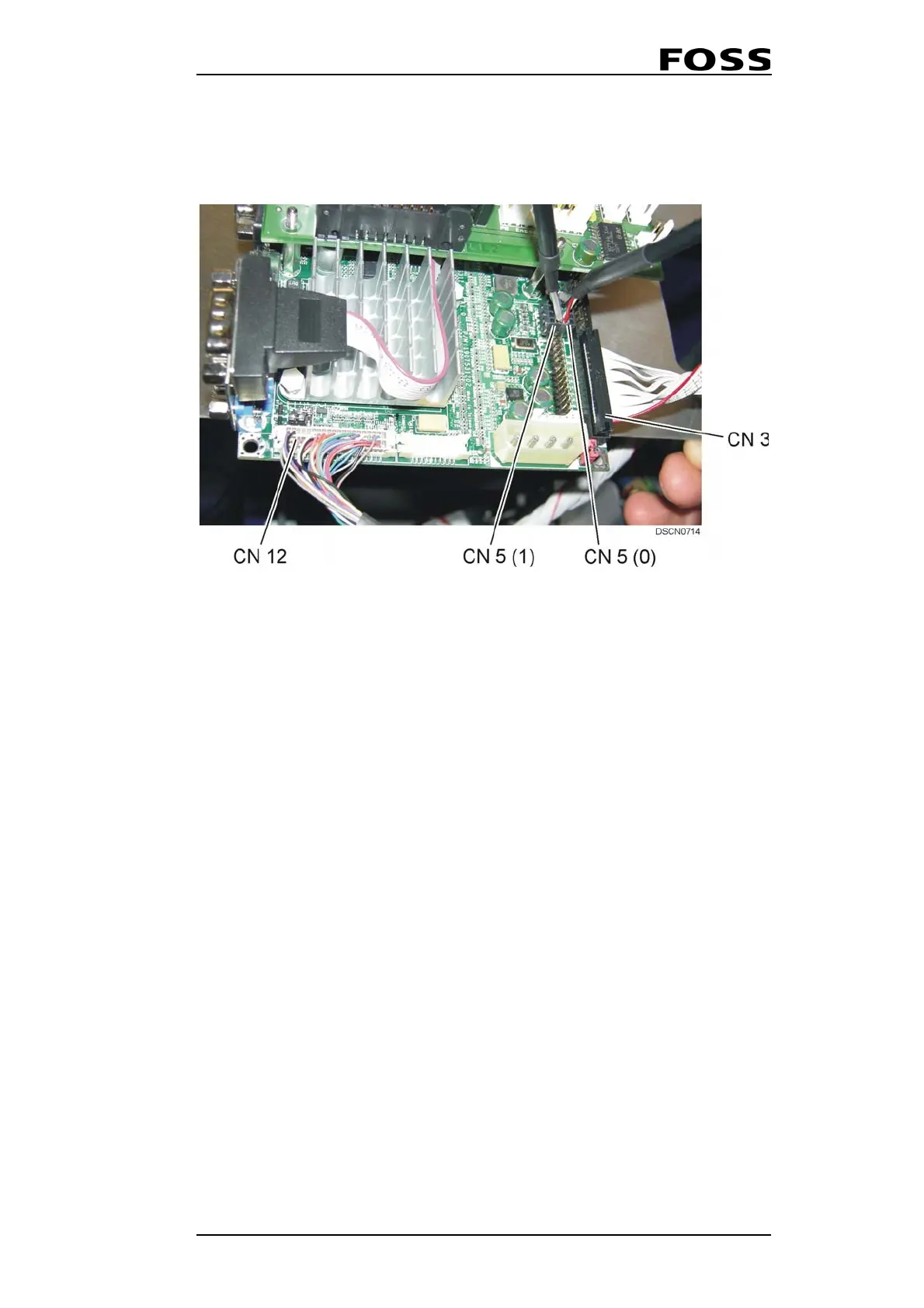

Fig. 5:29 Processor Board

9. Remove the PC Module.

CN3 Printer Interface CN5(1) USB Interface

CN5(0) USB Interface CN12 LCD Display
