Infratec™ 1241 Grain Analyzer
5:12 Service Manual 1001 5015 / Rev. 4

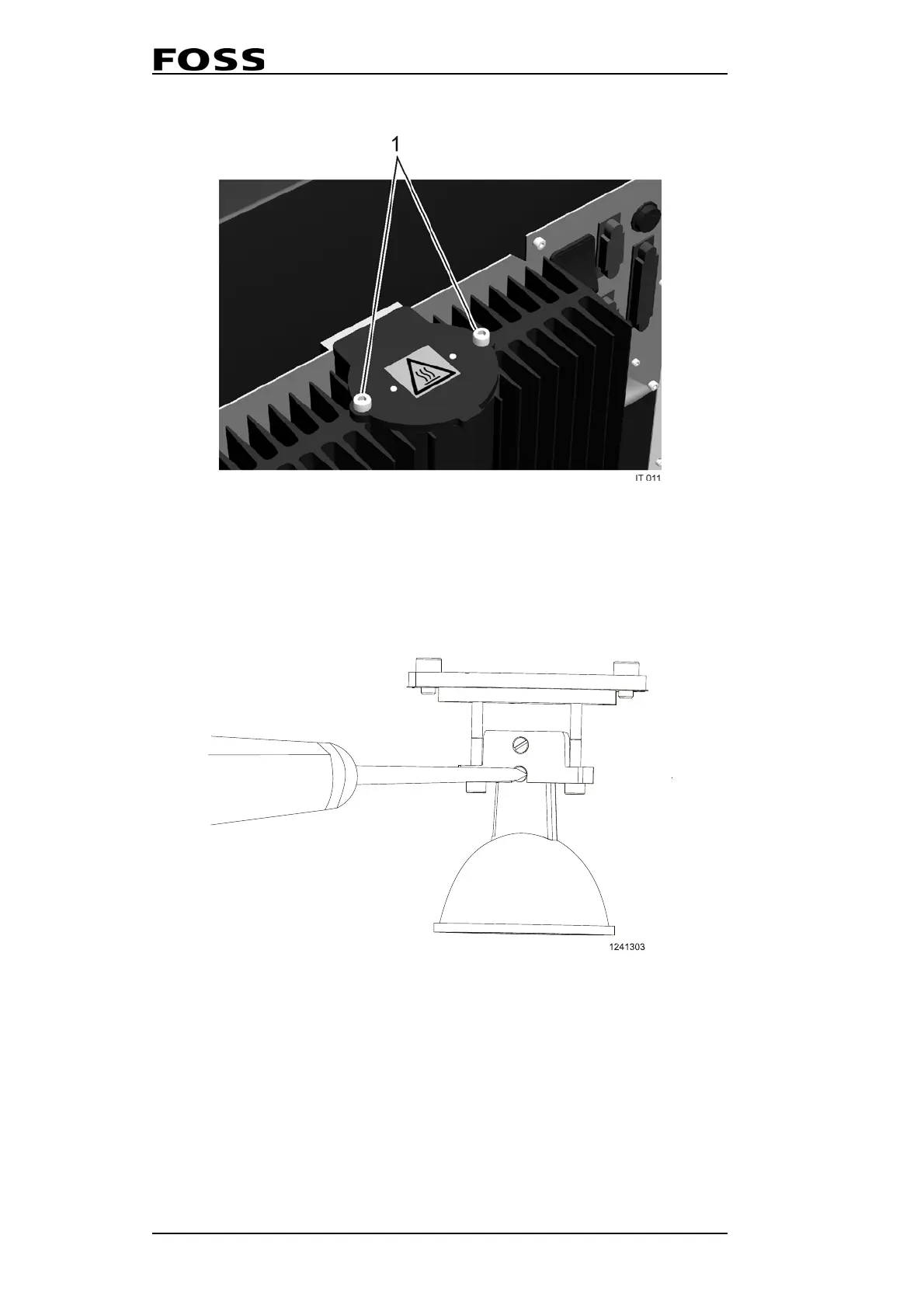

Fig. 5:12 Cover plate to lamp assembly
3. Use a flat bladed screwdriver to loose the two screws holding the lamp.
Fig. 5:13 Removing lamp from holder
4. Fit the new lamp and assemble in reverse order.
5. After changing lamp let it burn in at least 2 hours.
6. See 5.6.2 Lamp Holder on page 5:70.
1 Screws
