Infratec™ 1241 Grain Analyzer
Service Manual 1001 5015 / Rev. 4 5:17
Mounting Power Supply Board
6. Mount the new Power Supply Board into pre-scored groove on the Cooling
Flange.
7. Insert right screw 5 and washer slightly for prepositioning purpose.
8. Insert left screw 6 with earth cable shoe and washer for prepositioning.

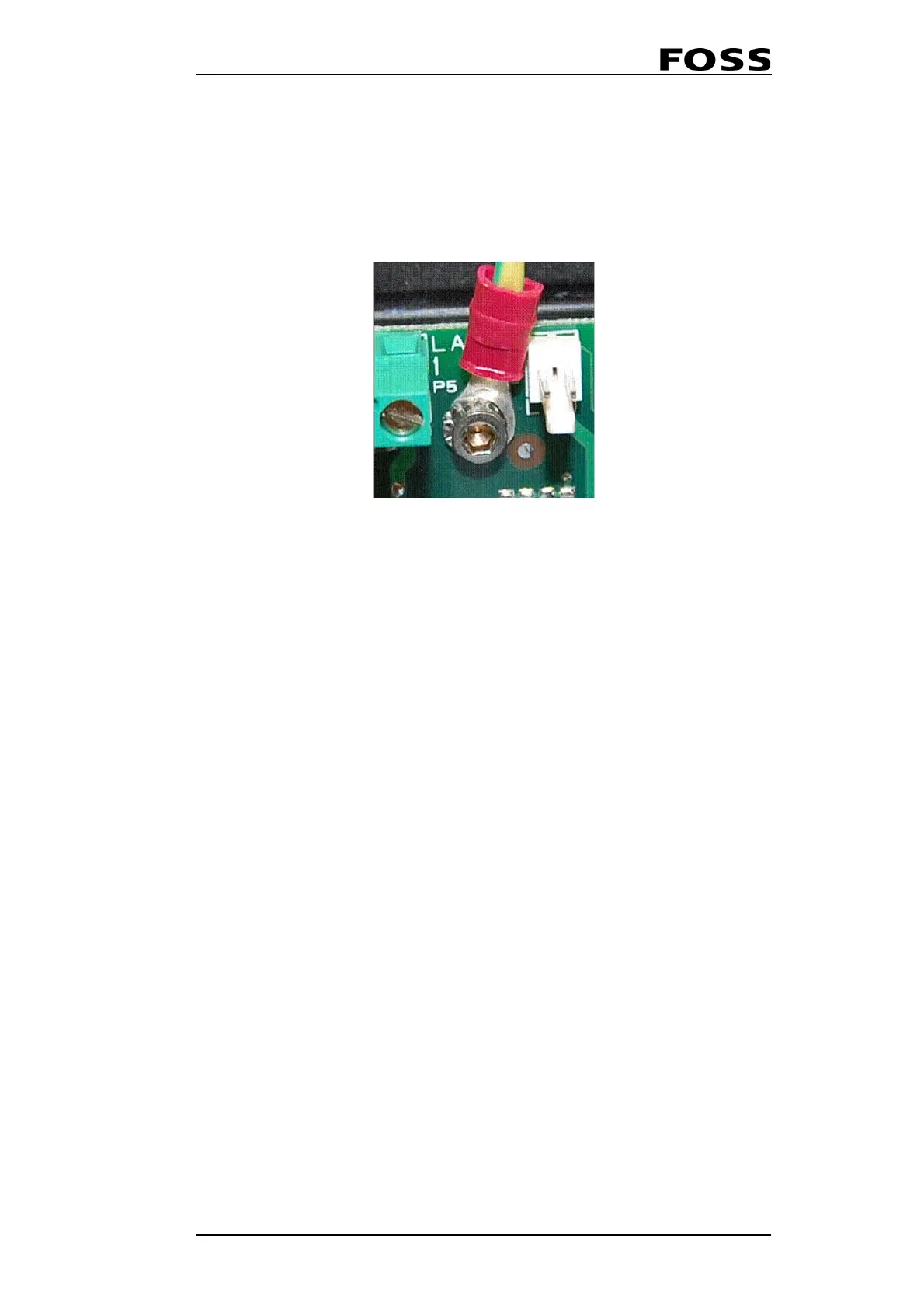

Fig. 5:19
9. Mount the Spring Plate 4 over the transistors and to the main cooling flange with
the screws 1 to 3.
10. Tighten screws 5 and 6.
11. Reconnect cables and refit the Power Supply accordingly.
