Infratec™ 1241 Grain Analyzer
5:34 Service Manual 1001 5015 / Rev. 4
10. Remove the two distance bolts 1 together with the two washers and carefully lift
away the DSP Board.

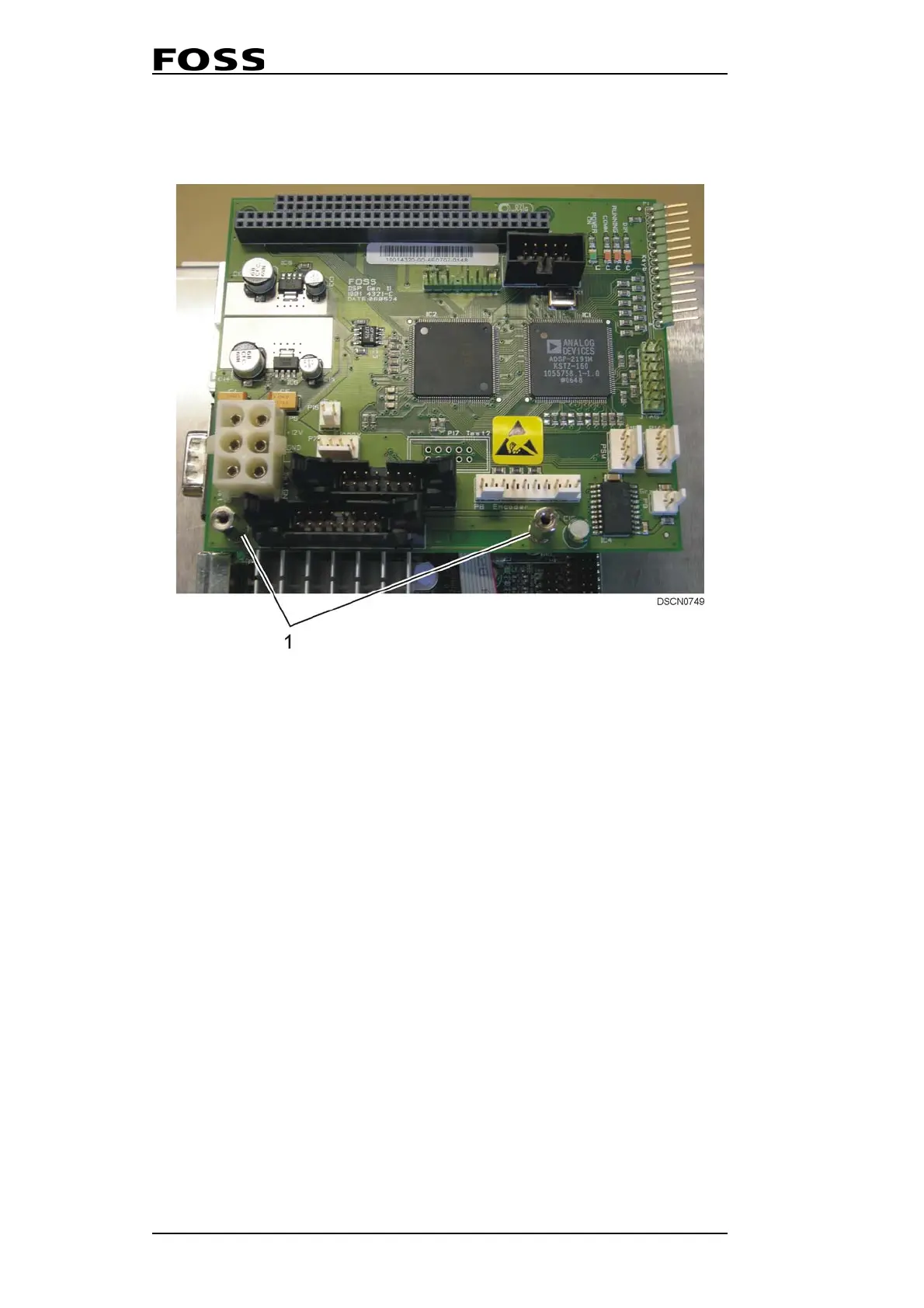

Fig. 5:36 DSP Board
11. Fit the new DSP Board with the two distance bolts together with the two
washers.
12. Fit the PC Module.
13. Carefully connect the four cables to the Processor Board.
14. Connect the eight cables to the DSP Board.
15. Connect the four interface cables that are on the left side of the PC Module.
16. Tilt up the PC Module and fit the two locking nuts holding the PC Module.
17. Fit two new cable ties to secure the USB cables.
18. Connect the P1 cable to the DSP Board.
19. Check that all cables are tightly into place.
20. Close the left-hand door and fit the new covers.
21. Switch on the instrument.
1 Distance Bolts
