Infratec™ 1241 Grain Analyzer

Service Manual 1001 5015 / Rev. 4 2:13

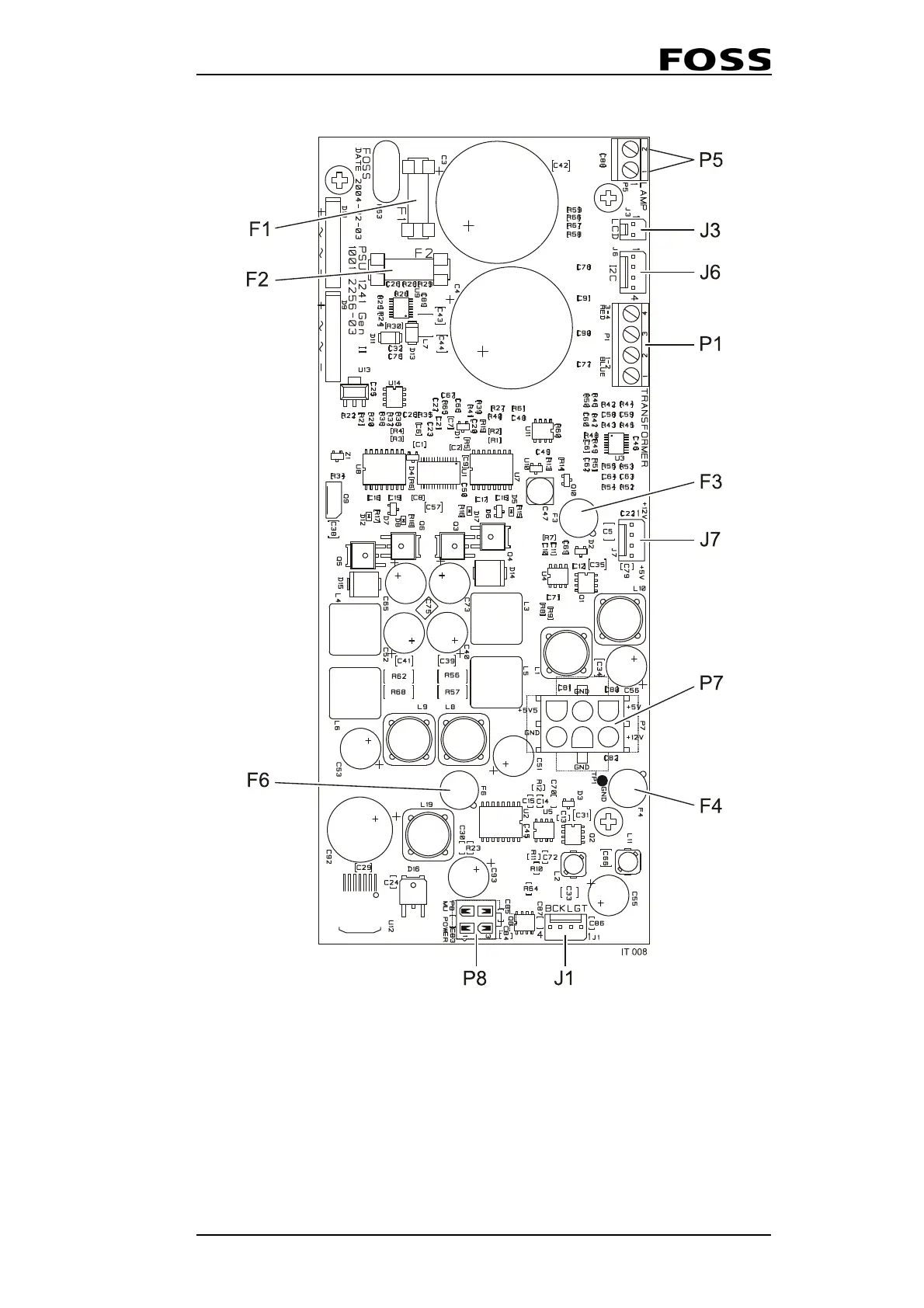

Fig. 2:11 Power Supply Board

J1 LCD Backlight P8 Measuring Unit Power

J3 LCD F1 Fuse 6.3 AT M

J6 I2C Bus F2 Fuse 1.25 AT T

J7 Remote I/O Power (optional) F3 Fuse 4.0 AT

P1 From Transformer F4 Fuse 500 mAT

P5 Lamp F6 Fuse 4.0 AT

P7 DSP Board Power
