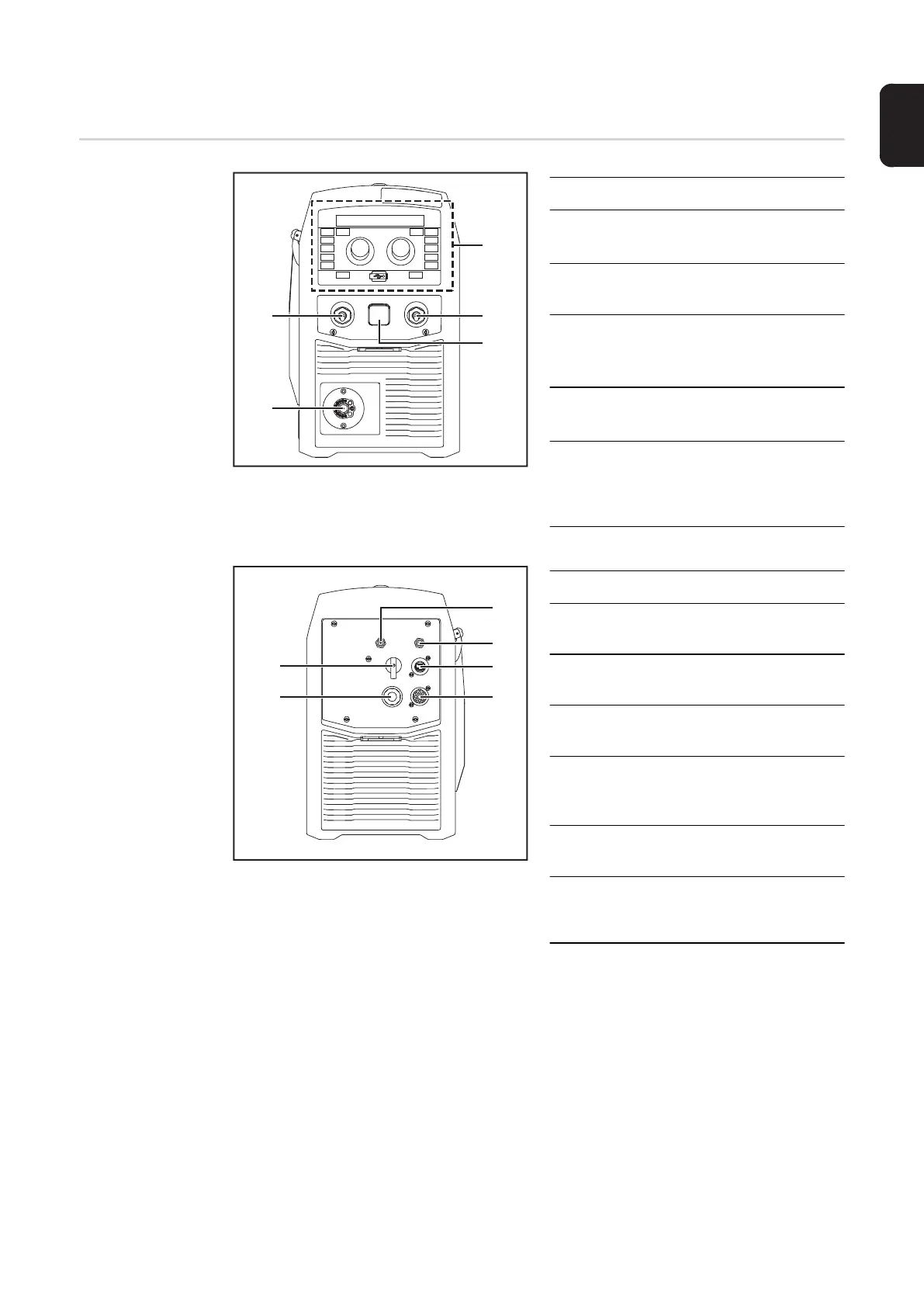

Connections, switches and mechanical components
Connections,
switches and me-
chanical compo-
nents
Front
No. Function
(1) Control panel with display
for operating the power source
(2) (+) current socket with bayonet
latch
(3) Blanking cover
reserved for the TMC connection
socket of the TIG option
(4) Welding torch connection
for connecting the welding torch
(5) (-) current socket with bayonet
latch
used to connect the grounding cab-
le during MIG/MAG welding
Rear
No. Function
(6) MIG/MAG shielding gas connec-
tion socket
(7) Blanking cover/TIG shielding gas
connection socket (option)
(8) Blanking cover/Ethernet connec-
tion socket (option)
(9) Blanking cover/SpeedNet
Connector connection socket
(option)/external sensor (option)
(10) Mains cable with strain relief de-
vice
(11) Mains switch
for switching the power source on
and off
(1)
(2)
(3)
(4)
(5)
(11)
(6)
(7)
(10)
(8)
(9)
