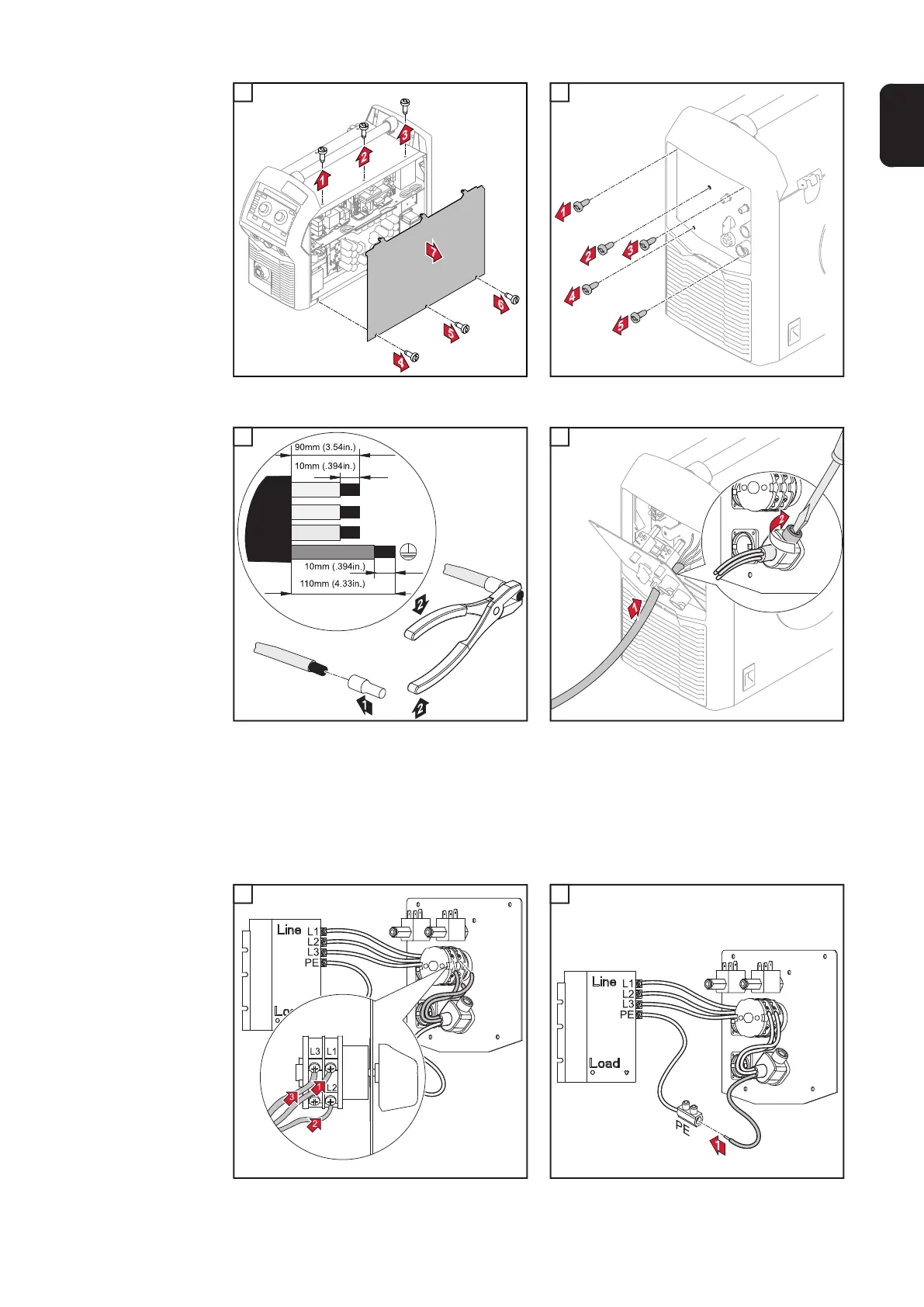

Fronius TPS 270i C - Page 53

53
EN
1
6 x TX25
2
5 x TX25
3 4
Tightening torque = 1.2 Nm
IMPORTANT! When connecting the cable to the switch, ensure:
- To route the conductors near to the switch
- Not to make the conductors unnecessarily long
- To fit the protective hose supplied over the cable and insert the covered cable into the
strain-relief device if cable diameters are small
1
Tightening torque = 1.2 Nm
2
Tightening torque = 1.2 Nm
1
2
3 4
5 6
