14 Maintenance
416
Maintenance
14
• The number of pages that can be printed/copied is for when A4 ( ) paper is used. This
number may vary depending on the paper size, paper orientation, the number of the
continuous printings, and the machine usage environment.
• After the message "Please order a new xxx drum (AX) (Maintenance Request)" appears,
copy or print images may be smudged.

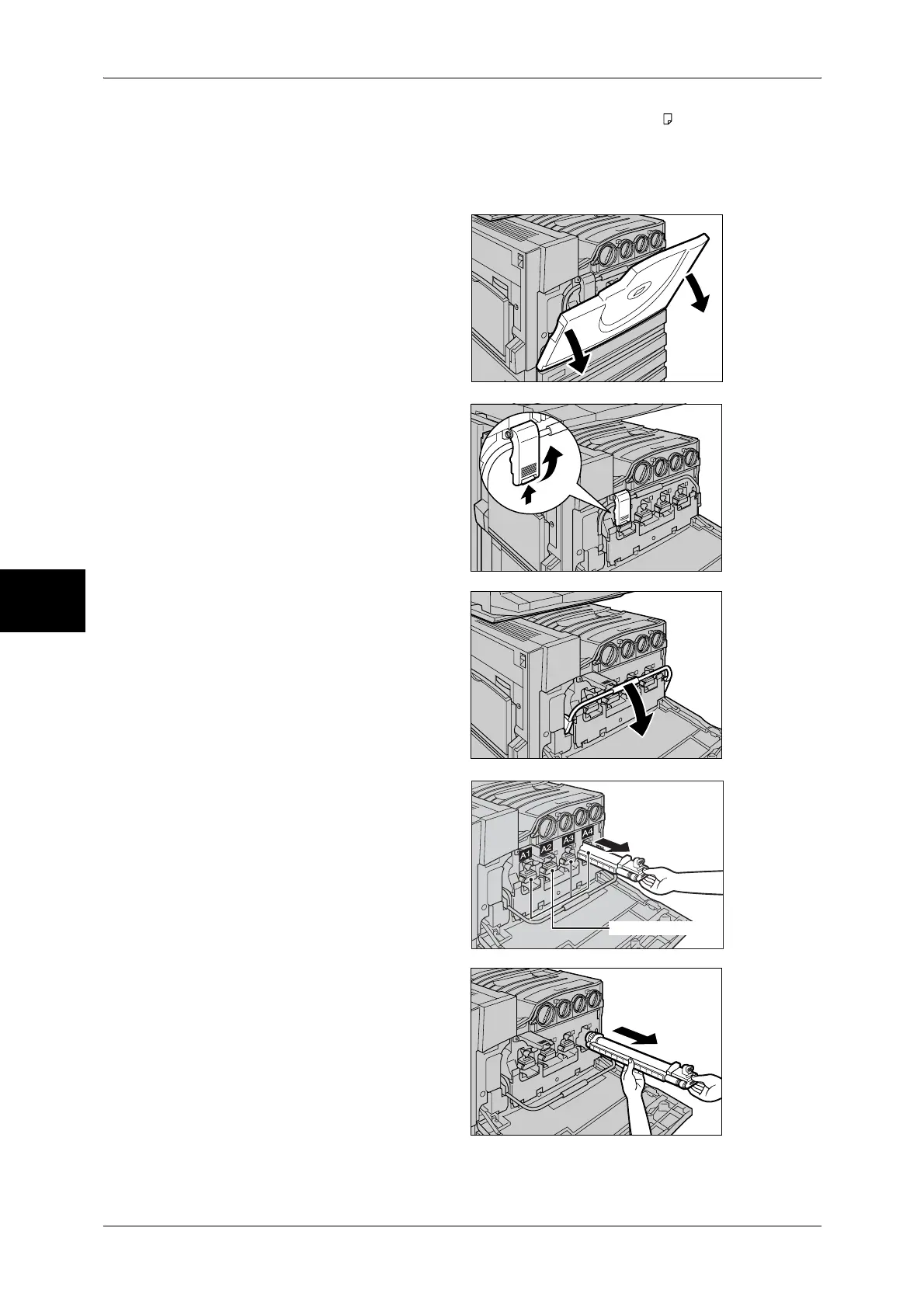

1 Make sure that the machine is not
in operation, and open the front
cover.
2 Push up the bottom part of the
stopper located at the left side of
the front face.
3 Pull down the handle.
Note • The four drum cartridges are
unlocked and lifted.
4 Hold the handle of the drum
cartridge specified by the message
(A1, A2, A3, or A4) to gently pull
the cartridge out.
Important • When pulling the drum
cartridge out, be careful not to
fall it on the floor.
Note •
The following example
shows how to replace A4.
5 Pull the drum cartridge out while
holding its bottom part, as shown in
the figure.
Important • Be careful not to touch toner
attached on the drum
cartridge.
6 Take a new drum cartridge out of the box, and put the used drum cartridge into a
supplied plastic bag and then into the box.
Drum cartridges
