Replacing Consumables
417
Maintenance
14
Important • Do not place the new drum cartridge in an upright position.
• Return used drum cartridges to our Customer Support Center.

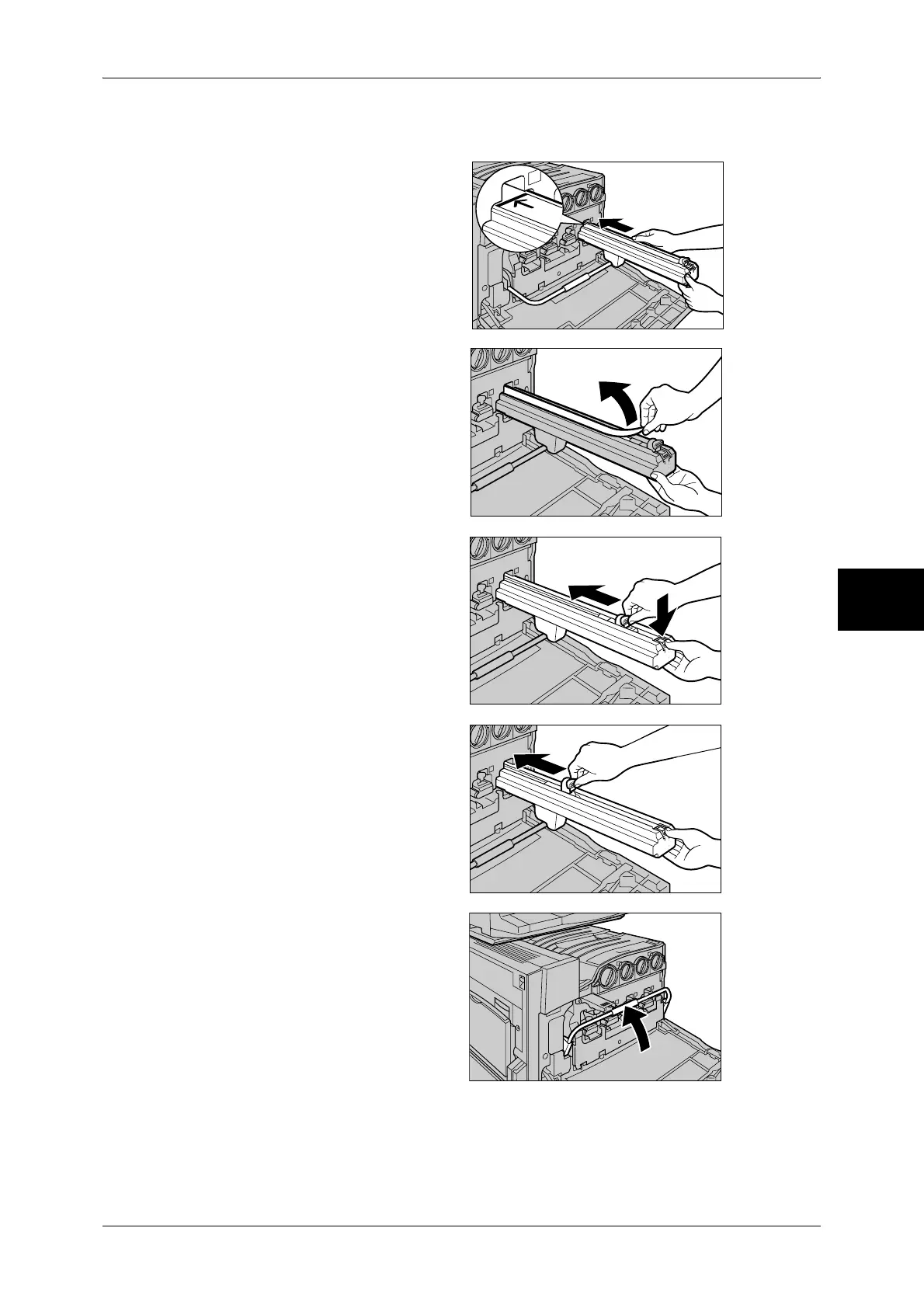

7 Place the new drum cartridge (with
a protective cover) onto the handle,
and insert the edge of the cartridge
into the machine.
Note • Stop inserting at the arrow
position, as shown in the
figure.
8 While the edge of the drum
cartridge is being inserted, remove
the seal from the upper part of the
drum cartridge.
9 Hold the drum cartridge securely.
Then, push the front part of the
protective cover, and slide the
orange tab on the upper part of the
cartridge forward, along the
protective cover.
10 Insert the toner cartridge until it
comes to a stop.
Note • Put the protective cover in the
empty box.
11 Return the handle to its original
position.
