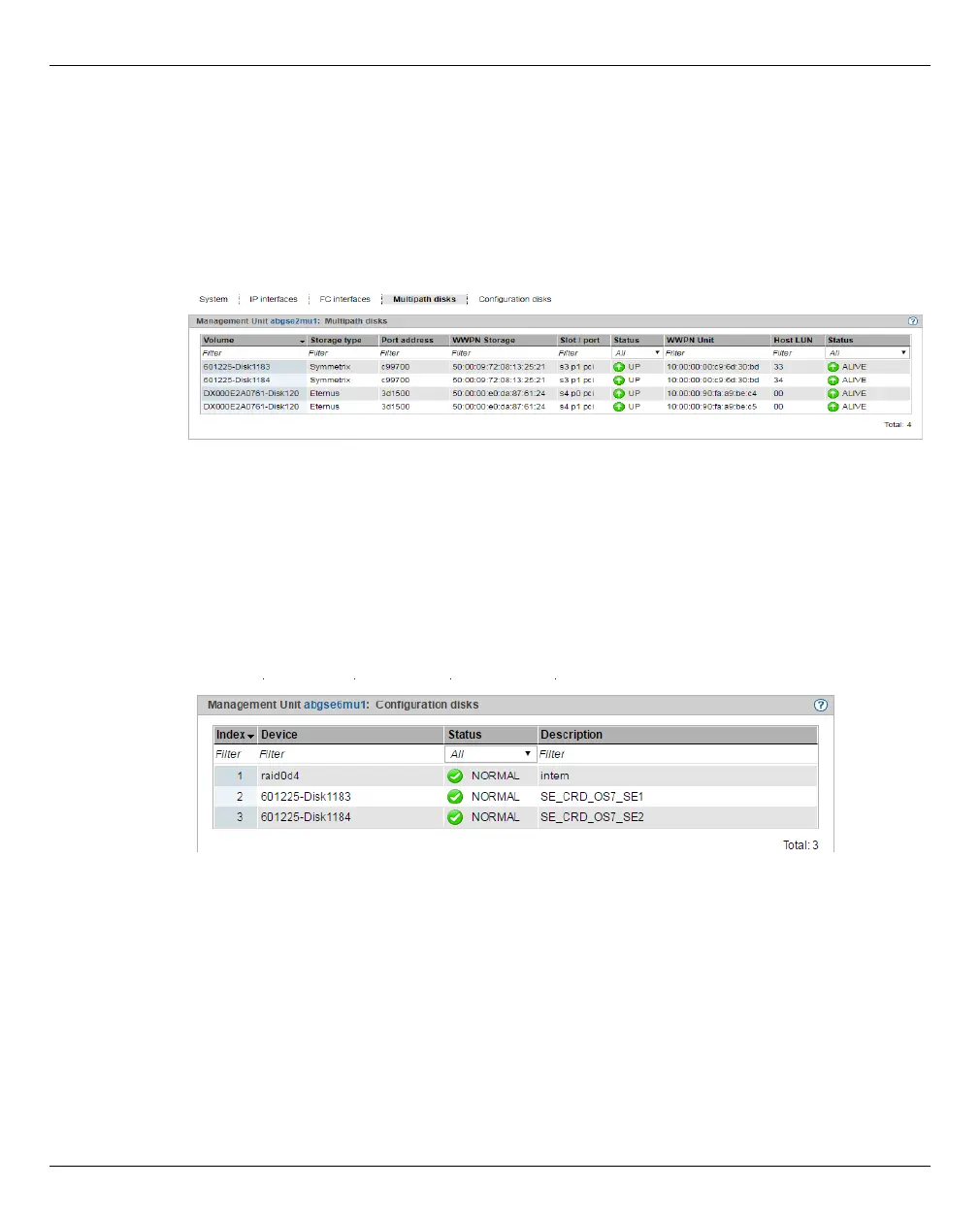

Displaying multipath disks of the MU
For the FC disks the Multipath disks tab displays the status of the paths from the unit to the
storage system and the end points of the paths, i.e. the interfaces on the storage system
and on the unit.
Ê Select Hardware → Units[ → <se server> (SE<model>)] → <unit> (MU) → Information,
Multipath disks tab:
Displaying configuration disks of the MU
The Configuration disks tab in the Information menu displays the status of the internal and, if
existing, the external configuration disks of the Management Unit.
Purpose and operation of configuration disks are described in section “External
configuration disks” on page 42.
Ê Select Hardware → Units[ → <se server> (SE<model>)] → <unit> (MU) → Information,
Configuration disks tab:
The table lists the configuration disks with the current status. The internal configuration disk
is listed before any possibly existing external configuration disks. The Description column
can contain additional information on the use of the configuration disk.
