Overview
n System status LED ( )
This LED lights or blinks in amber when an error is detected in the server components. If this
LED lights or blinks, contact an office listed in the "Contact Information" of "Start Guide".
o Hard disk access LED ( )
This LED blinks in green when data is being written to or read from a hard disk.
p Power LED ( )
This LED is lit green when the server is turned on.
` Power LED is lit when the server is in standby mode (when the AC power is on and the DC
power is off), but this does not indicate an error.
` Even if the server is turned off, this LED is lit green during waiting for ASR.
q USB connector ( )
Connects peripheral equipment conforming to the USB standard (2.0 or 1.1).

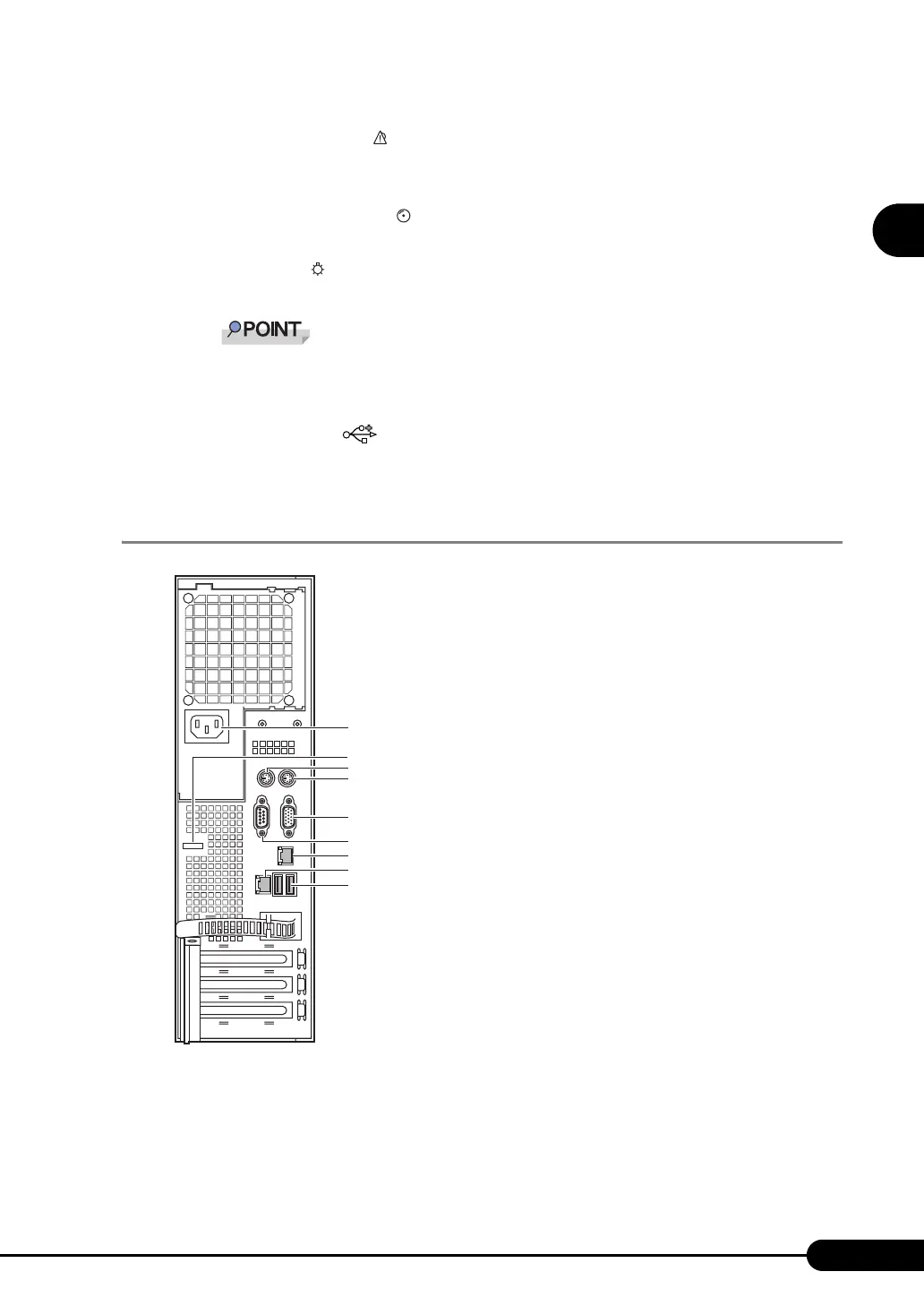

1.3.2 Server (Rear View)
a Inlet
Connects a power cable.
b Lock plate
Passes the wire etc. through the plate to fix to the pillar etc. The diameter of the hole is about
6mm.
h
i
d
e
g
c
f
