28
Chapter 1 Overview

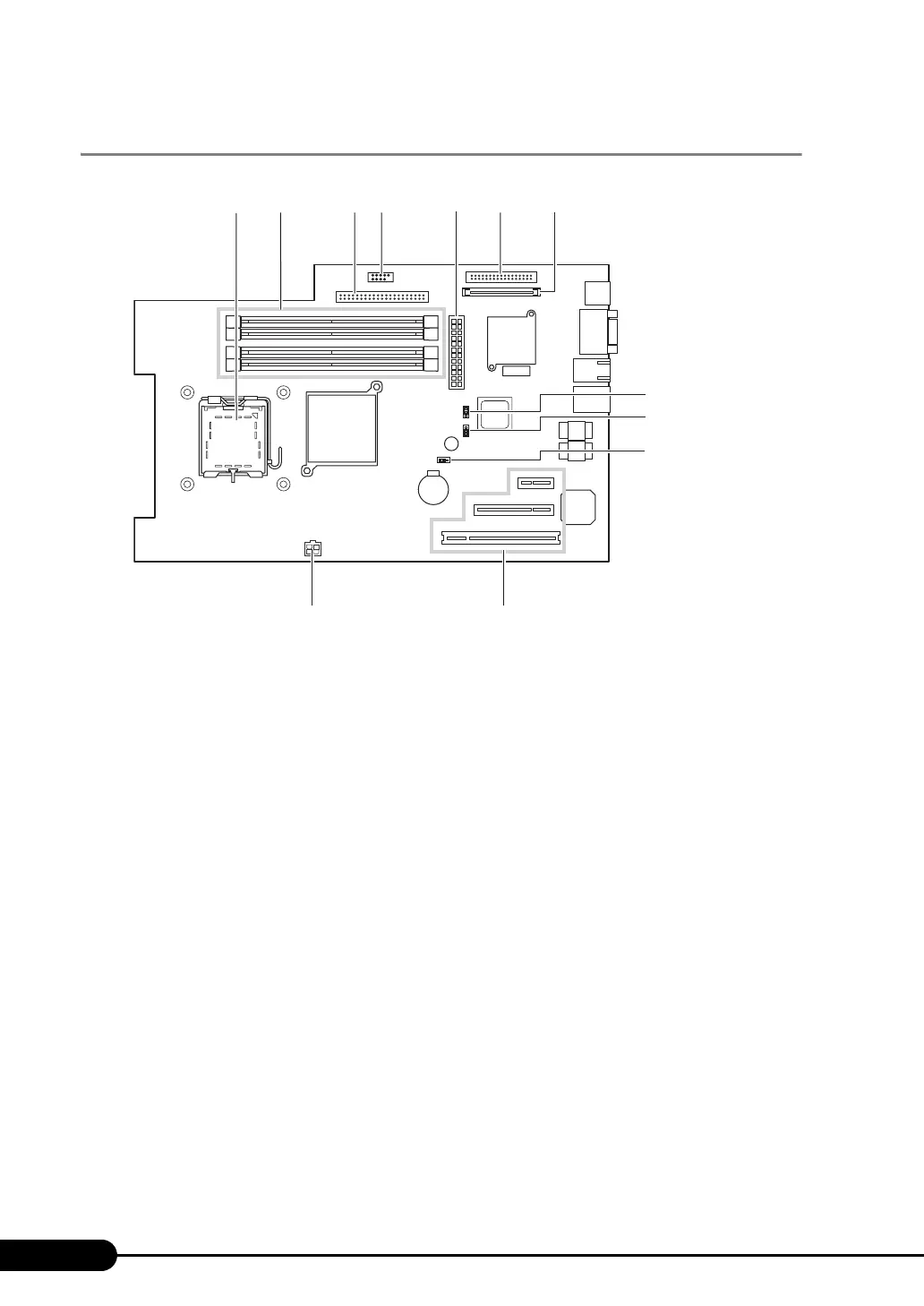

1.3.4 Baseboard
a CPU socket
Installs the CPU.
b Memory slot
Contains memory. If more memory is added, the amount of the data that can be read at a time
increases and the processing performance of the server improves.
c IDE connector
An IDE cable for the internal CD-ROM drive unit or the internal DVD-RAM drive unit is
plugged in.
d USB connector
e 24pins ATX power connector
f Floppy disk connector
A floppy disk drive cable is plugged in. This connector is not used for this server.
g SAS connector
A SAS cable for the internal hard disk is plugged in.
h JP1
i JP2
j JP3
k PCI Slots
Contains an expansion card.
l 4pins ATX power connector
a
b
c
e
f
d
g
k
h
i
j
l
