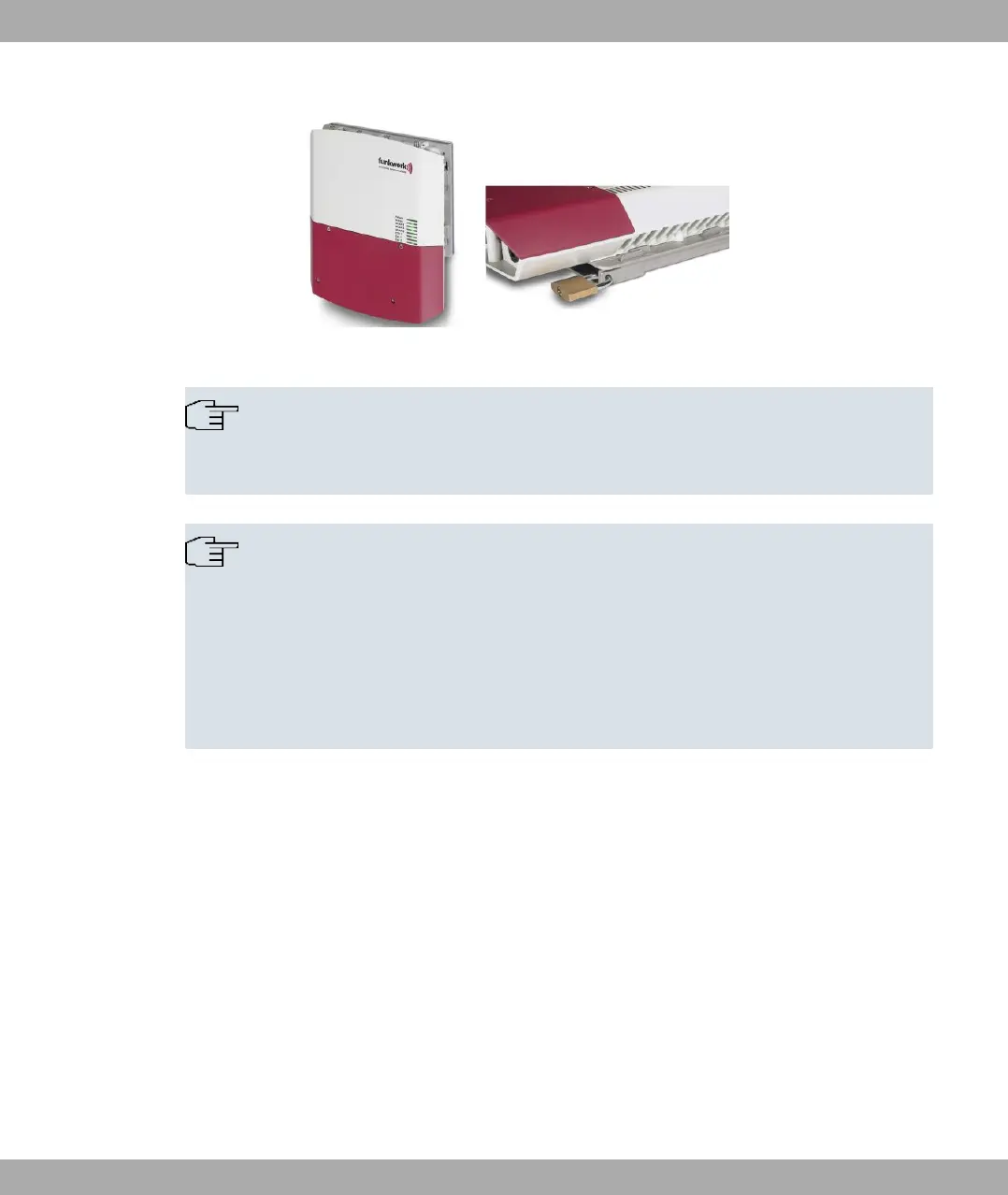

Fig. 11: Wall mounting of the funkwerk Wx065 (standard design and with theft protection)
Note
To limit power in the event of a fault, the 24-V DC supply for funkwerk WIx040 and
funkwerk WIx065 must be protected with an externally fitted 2-A fuse.
Note
If the funkwerk WIx065 is installed outdoors, the lines laid outside the building are to
be categorized as TNV1 electric circuits in accordance with EN60950, as their SELV
level can also be overridden by transient overvoltage (e.g. during storms) during oper-
ation in line with the regulations. When wiring the connections, it is therefore neces-
sary to make sure that protective measures against overvoltage are carried out where
the cable enters the building, to ensure that the limit values of a SELV electric circuit
are maintained in the building.
The access point can also be used as a table-top device. For this option, use the
four self-adhesive feet on the bottom of the device. Place your device on a solid,
level base.
(3) LAN: For the standard configuration of your device via Ethernet, connect port ETH1 or
ETH2 of your device to your LAN using the Ethernet cable supplied. The device auto-
matically detects whether it is connected to a switch or directly to a PC.
Use just one of the ports ETH1 and ETH2, the second port is used to cascade a
number of devices. If you use both Ethernet connections on the same switch, loops
may be formed.
The standard patch cable (RJ45-RJ45) is symmetrical. It is therefore not possible to
mix up the cable ends.
(4) Power connection: Connect the device to a mains socket using the mains adaptor
supplied.
Use the power cord supplied (or the screw strip terminal in the case of the WI
series) and insert it in the appropriate socket on your device. Now plug the power
