FUTABA T10J User Manual

Beforeuse
18

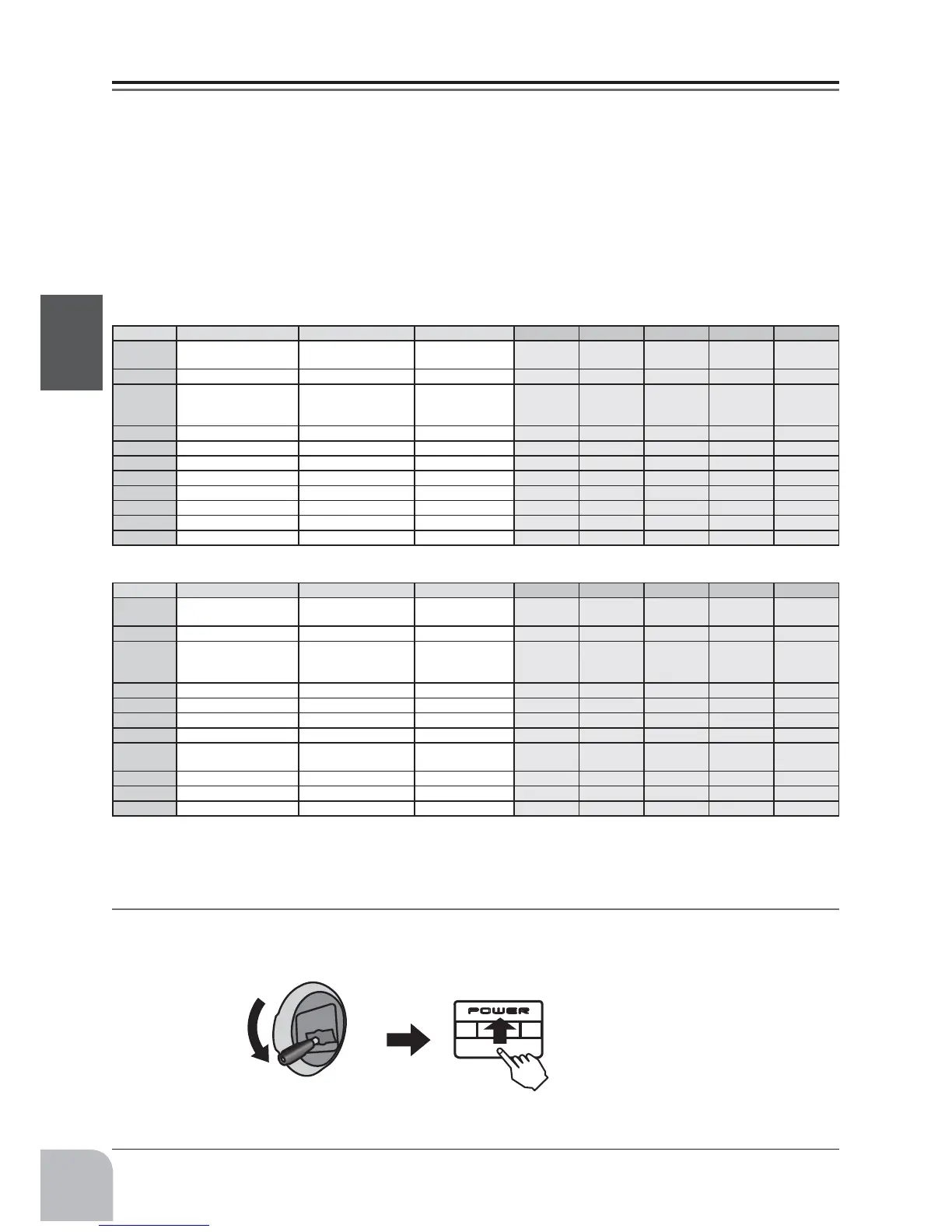

SWITCHASSIGNMENTTABLE
• The factory default functions activated by the switches and VR for an 10JA Mode 2 for USA
transmitter are shown below.
• Most 10J functions may be reassigned to non-default positions quickly and easily.
• Basic control assignments of channels 5-10 are quickly adjustable in AUX-CH.
• Note that most functions need to be activated in the programming to operate.
 -+-$ DQG -$ 0RGH  IRU 86$WUDQVPLWWHUIXQFWLRQVDUHVLPLODUEXWUHYHUVHFHUWDLQ
switch commands. Always check that you have the desired switch assignment for each function
during set up.
2QWKH-$0RGHIRU86$WUDQVPLWWHUVWKH723/()7SWITCHES are spring-loaded and 2-position; on the 10JA
0RGH  -+ WKRVH VZLWFKHV DUH RQ WKH ULJKW VLGH )RU FRQVLVWHQF\WKH VZLWFK SRVLWLRQ¶V GHVLJQDWLRQ UHPDLQV WKH
VDPHXSSHUOHIWLV)HWFEXWWKHIXQFWLRQVDUHPRYHGWRPDWFKWKHVZLWFKW\SH
TOTURNONTHE10JSYSTEM
First make sure the throttle stick is in the low throttle position.
Push up to turn on.
,IWKHWKURWWOHVWLFNLVQRWLQWKHORZSRVLWLRQ
you'll have an alarm until the stick is in the low position.
Switch ／ VR ACRO HELI MULTICOPTER GliderA-1 GliderA-2 GliderAF1 GliderAF2 GliderAF4
SwitchA ElevatorD/R ／ CH9 ElevatorD/R ／ CH9 ElevatorD/R ／ CH9 ElevatorD/R
／ CH9
ElevatorD/R
／ CH9
ElevatorD/R
／ CH9
ElevatorD/R
／ CH9
ElevatorD/R
SwitchB RudderD/R RudderD/R RudderD/R RudderD/R RudderD/R RudderD/R RudderD/R RudderD/R
SwitchC (UP)ELE → FLP
(Center/Down)Idledown
(Down)Airbrake
Governor ／ 7CH 6CH
SwitchD AileronD/R ／ CH10 AileronD/R ／ CH10 AileronD/R ／ CH10 AileronD/R AileronD/R AileronD/R AileronD/R AileronD/R
SwitchE Idleup1,2 5CH
SwitchF Idleup3 ／ Gyro ／ 5CH
SwitchG Gear ／ 5CH Throttlehold 6CH 6CH 6CH
SwitchH Snaproll／ Trainer Throttlecut／ Trainer Trainer Trainer Trainer Trainer Trainer Trainer
VR Flap ／ 6CH Hoveringpitch／ CH8 7CH 10CH 10CH 10CH 10CH 10CH
DT5 7CH 5CH 5CH Flap(5CH) Flap(5/6CH) Flap(5/6CH)
DT6 8CH 8CH 8CH 8CH 8CH 8CH Flap(8/9CH)
Switch ／ VR ACRO HELI MULTICOPTER GliderA-1 GliderA-2 GliderAF1 GliderAF2 GliderAF4
SwitchA ElevatorD/R ／ CH9 ElevatorD/R ／ CH9 ElevatorD/R ／ CH9 ElevatorD/R
／ CH9
ElevatorD/R
／ CH9
ElevatorD/R
／ CH9
ElevatorD/R
／ CH9
ElevatorD/R
SwitchB RudderD/R RudderD/R RudderD/R RudderD/R RudderD/R RudderD/R RudderD/R RudderD/R
SwitchC (UP)ELE → FLP
(Center/Down)Idledown
(Down)Airbrake
Governor ／ 7CH 6CH
SwitchD AileronD/R ／ CH10 AileronD/R ／ CH10 AileronD/R ／ CH10 AileronD/R AileronD/R AileronD/R AileronD/R AileronD/R
SwitchE Gear ／ 5CH Throttlehold 5CH
SwitchF Snaproll／ Trainer Trainer Trainer Trainer Trainer Trainer Trainer Trainer
SwitchG Idleup1,2 6CH 6CH 6CH
SwitchH Throttlecut ／ Idleup3
／ Gyro ／ 5CH
VR Flap ／ 6CH Hoveringpitch／ CH8 7CH 10CH 10CH 10CH 10CH 10CH
DT5 7CH 5CH 5CH Flap(5CH) Flap(5/6CH) Flap(5/6CH)
DT6 8CH 8CH 8CH 8CH 8CH 8CH Flap(8/9CH)
ŔœŭŤŃŰƒƇƈŃŕŃƗƕƄƑƖƐƌƗƗƈƕƖŃƉƒƕŃŸŶŤŏŃƗƋƈŃŷŲųŃůŨũŷŃŶźŬŷŦūŨŶŃƄƕƈŃƖƓƕƌƑƊŐƏƒƄƇƈƇŃƄƑƇŃŕŐƓƒƖƌƗƌƒƑ
ŔœŭŤŃŏŃŔœŭūŏŃƗƋƈŃŷŲųŃŵŬŪūŷŃŶźŬŷŦūŨŶŃƄƕƈŃƖƓƕƌƑƊŐƏƒƄƇƈƇŃƄƑƇŃŕŐƓƒƖƌƗƌƒƑ

FUTABA T10J Specifications

General

Channels	10
Frequency	2.4GHz
Model Memory	30
Display	LCD
Telemetry	Yes
Weight	590g
Trainer Port	Yes
Modulation	S-FHSS
Power Supply	6V to 7.4V (2S LiPo)
