Chapter 2
Installation
31
SuperBus 2000 energy saver module
Connect the energy saver module to the panel and premises thermostat as shown in Figure 21.

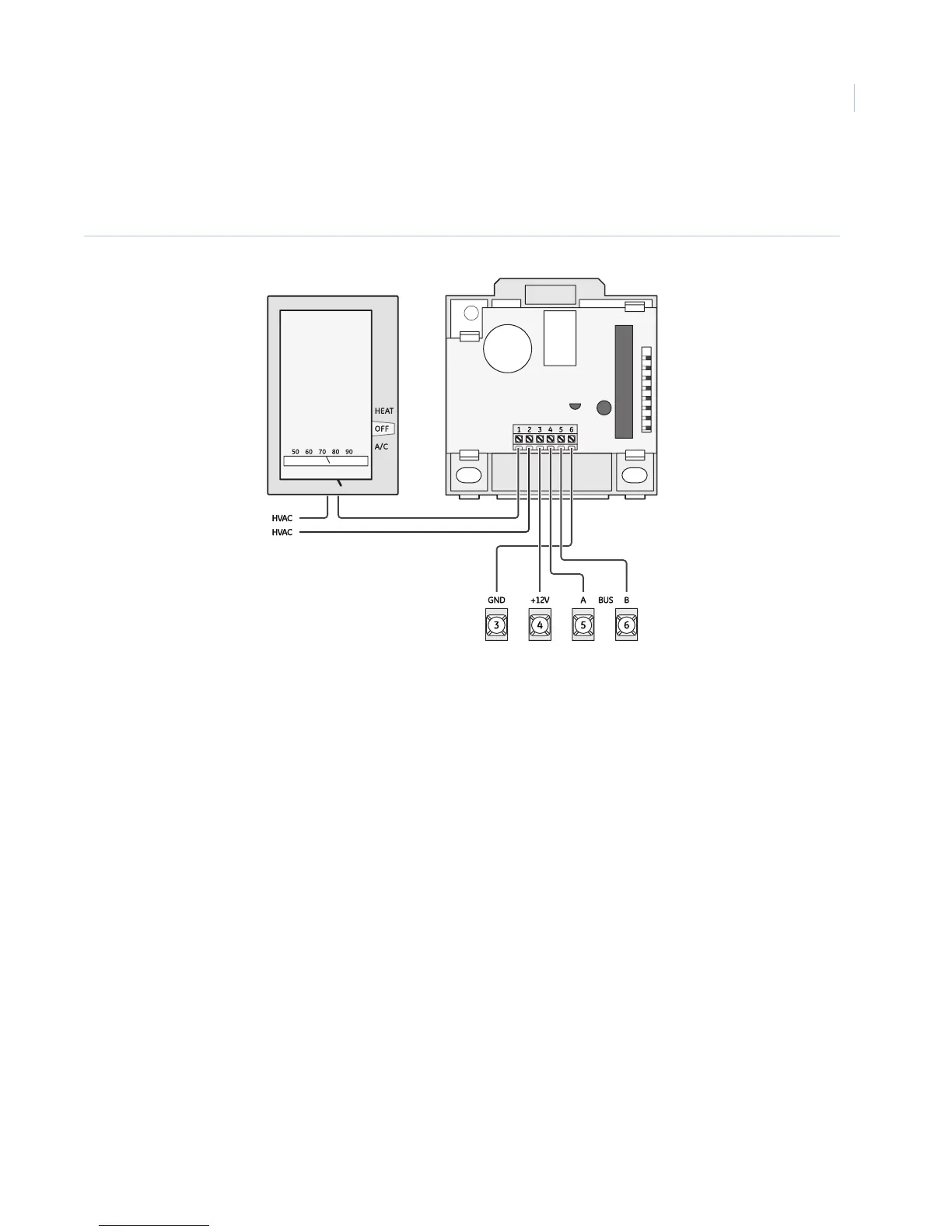

Figure 21. Wiring the thermostat and energy saver module to the panel
Panel terminals
Thermostat Energy saver module
