GE Security EST3 User Manual

Installation
EST3 Installation and Service Manual 5.11
+ −
47 k
EOLR
Ω
Temporal
horn
+ −
AUX riser from
previous device
12345678
910
12345678
910
Data in ( )
+
Data in ( )
−
From
previous device
Data out ( )
+
Data out ( )
−
To
next device
+ −
AUX riser to next
device or riser monitor
Single Input Signal module
+ −
Temp ora l
horn
+ −
47 k
EOLR
Ω
Strobe
+ −
Strobe
+ −
Normal
+ −
Active
+ −
+
−
Normal Active
Single Input Signal module Model: CC1S Device type: Audible Personality: (25) Auto sync output Label: Zone_1_Horns
Model: CC1S Device type: Visible Personality: (25) Auto sync output Label: Zone_1_Strobes

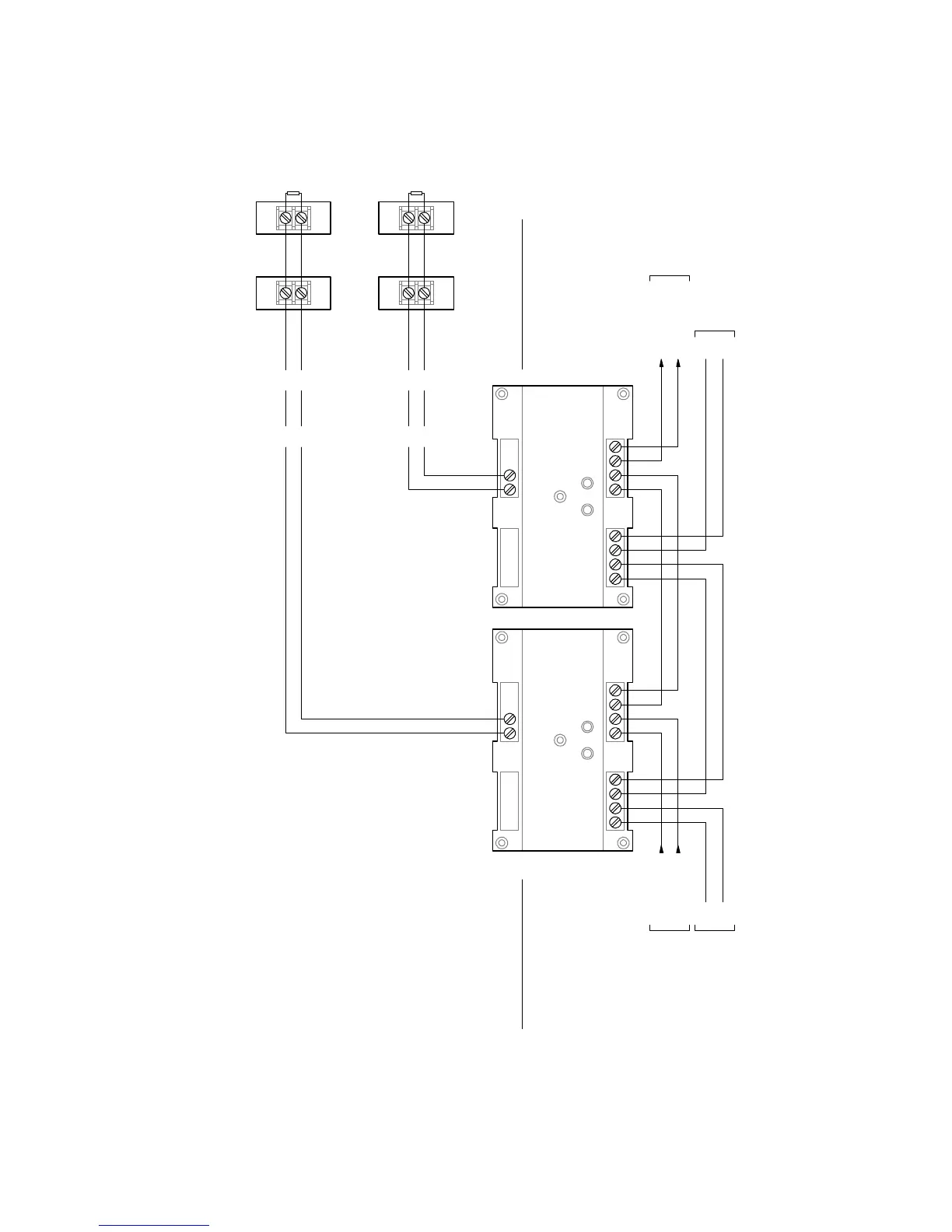

Figure 5-3: Typical SIGA-CC1S NAC wiring
