Service and troubleshooting
EST3 Installation and Service Manual 8.69
[LPCSTAT3.CDR]
Select cabinet from
list displayed here
Graphical representation of devices
remaining to be processed
Graphical representation of devices
already processed
Click here to reinitialize the
selected controller card
Click here to start receiving
status information
Click here to enable mapping on
the selected controller card
Click here to disable mapping on
the selected controller card
Select display refresh
rate here
Select controller from
list displayed here
Select data circuit from
list displayed here
Select COM port here Select baud rate here

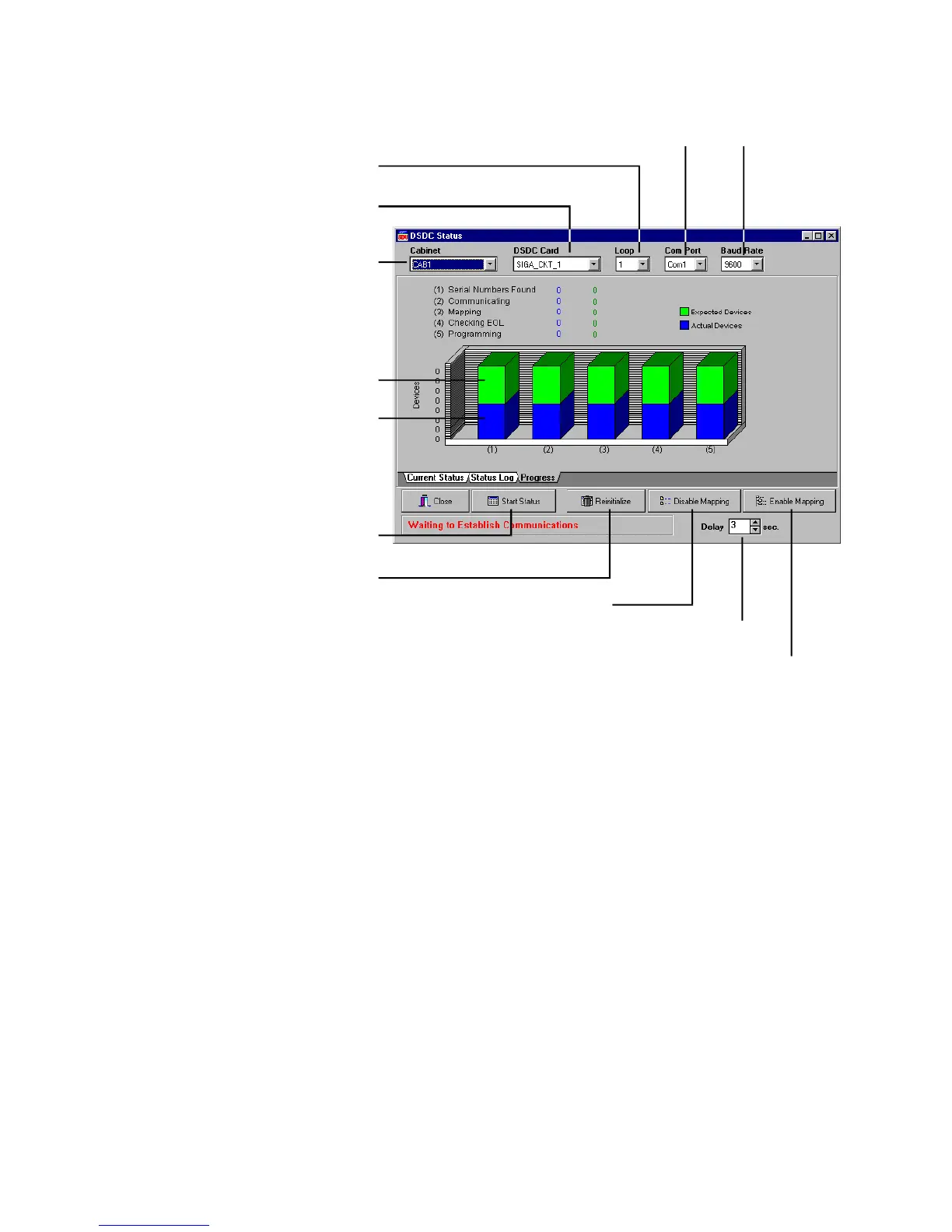

Figure 8-24: DSDC in-process progress chart
