GE Security EST3 User Manual

Security applications
EST3 Installation and Service Manual 2.9
Tamper loop
Bell circuit
Wires must be in a
metal conduit with no
boxes or other
junctions
3-TAMPRCC Cabinet
Tamper Switch
ATCK Attack Kit
Central
monitoring
station
Telephone lines: one
line with 24-hour test or
two lines with line cut
monitors
Control panel
3-IDC8/4
Power supply
Other factors
Hardware configuration
SDU programming
ACDB/KDC operation
X
3-SAC
3-MODCOM
SAC bus
KPDISP
Listed
bell

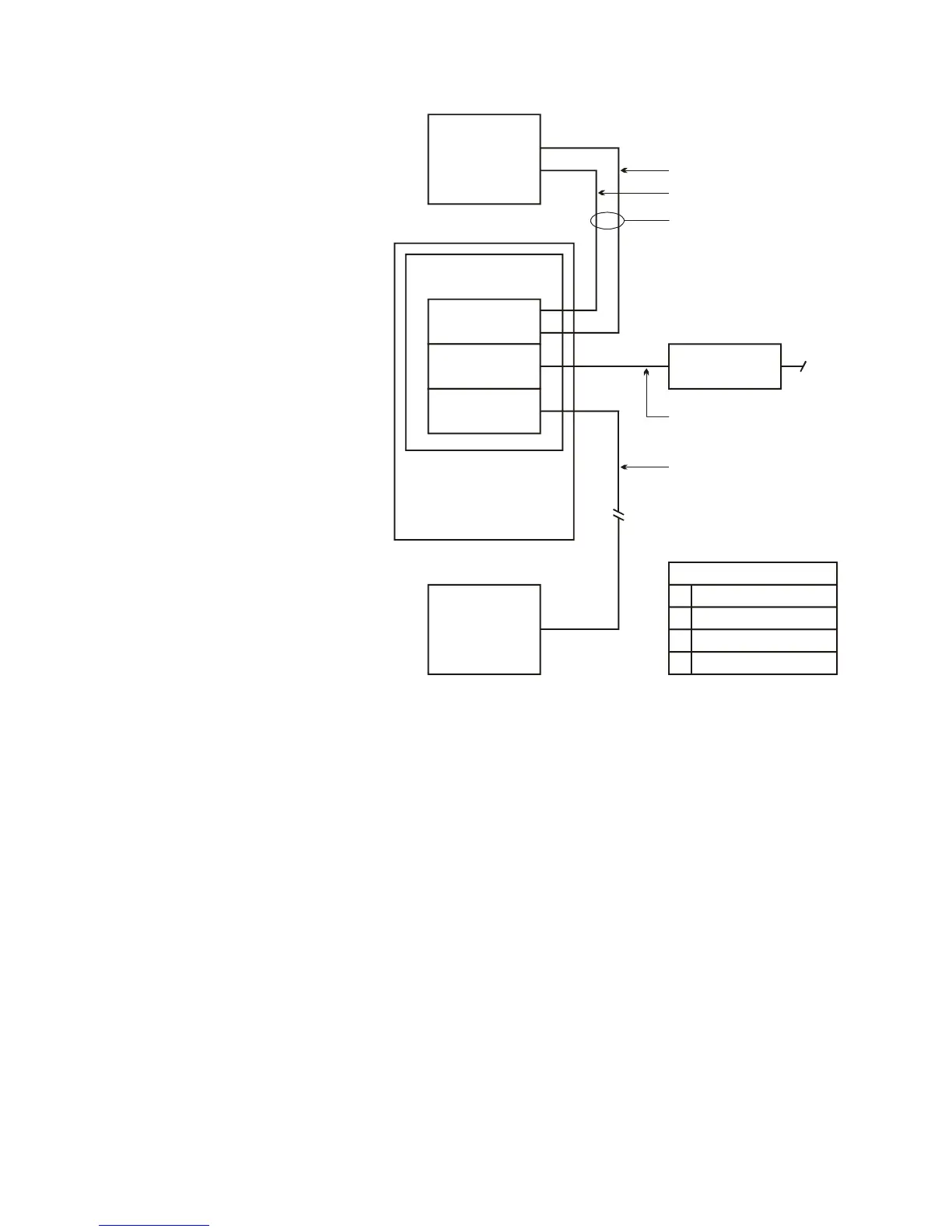

Figure 2-2: Components used with a central station certificate
application
For this certificate, the control panel cabinet must be fitted with
an ATCK Attack Kit and a 3-TAMPRCC Cabinet Tamper
Switch. In addition, a listed local bell is required.
The bell must be positioned where it can be heard from every
arming station in the system. You can use multiple bells if
required.
The bell requires a tamper detection loop. Both the bell circuit
and the tamper detection loop can be supported by a 3-IDC8/4
module.
A single phone line that is tested at least once in every 24-hour
period can be used. Alternately, two lines with line cut
monitoring can be used in place of a line with 24-hour testing.
If the central monitoring station (CMS) does not have testing
services, the SDU can program the system to issue tests on a
fixed or relative basis to meet this requirement.
