GE eBike BASIC - Replace Motor Control Unit

2018112-069 Rev. F eBike II, eBike II L, eBike II EL - 103 -
motor control
power cord
on/o
switch
remote control
motor longitudinal tilting
saddle motor
SUB-D
connector
2 2
1 1
for connector identication:
see „wiring diagrams“
replaCe Motor Control unIt

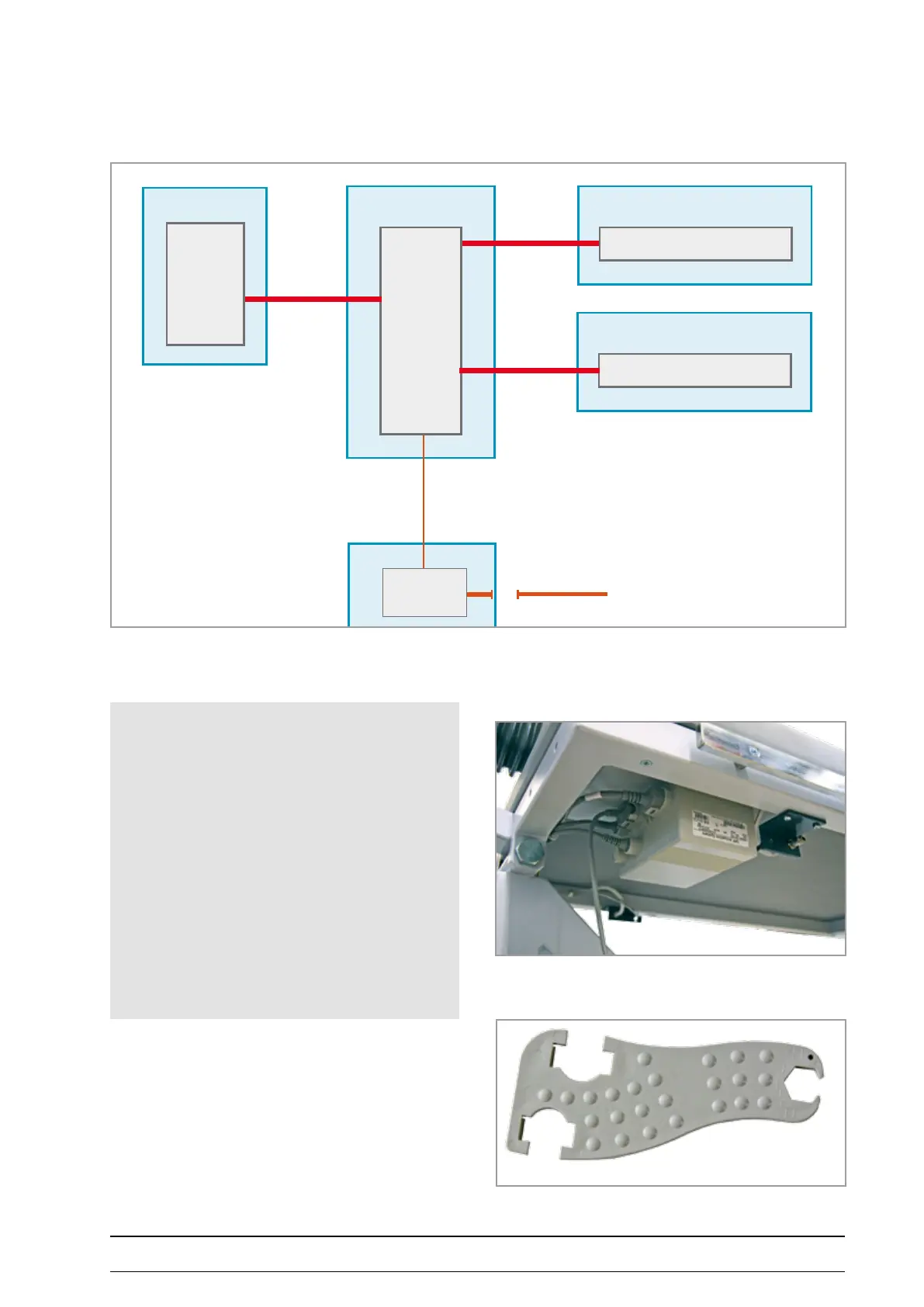

BloCk dIagraM Motor Control unIt
replaCe Motor Control unIt
• Disconnect device from mains!
• Disconnect all cables prior the disassembling of the
unit, using a suitable fork wrench or the special tool.
Troubleshooting
• Before replacing the motor control unit make sure
that the motor is actually defective.
• For this check, use a new hand switch (the hand
switch for eBike EL can also be used) and test the
motorfunctions.
• If the control unit does not work, it is out of order
and must be replaced.
• If it works, the hand switch is defective.
