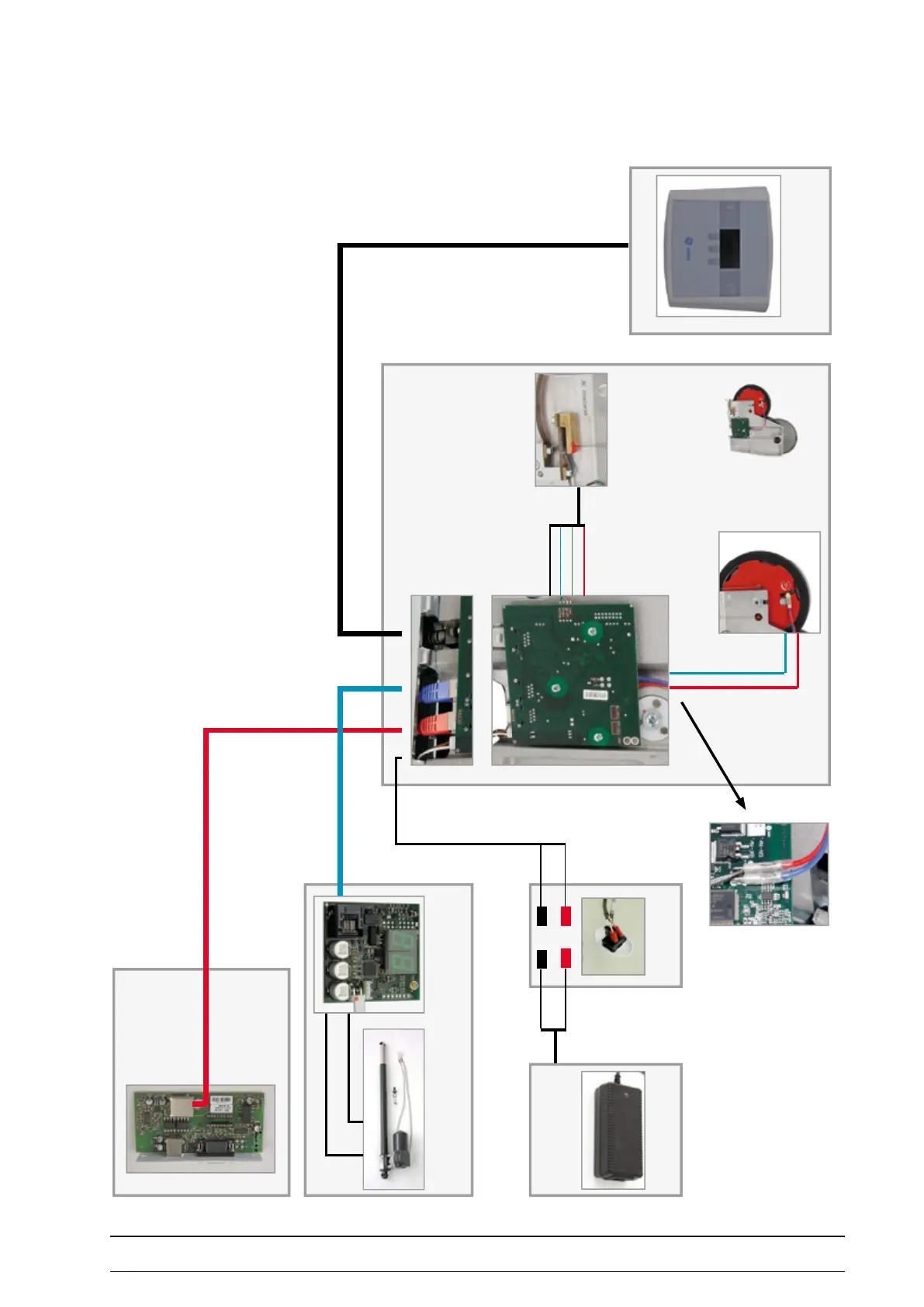

GE eBike BASIC - Wiring Diagram Ebike II Basic; Comfort

GE eBike BASIC
234 pages
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
Strain gauge
red (rot)
green (grün)
blue (blau)
black (schw.)
Drive unit
Control terminal
red (rot)
blue (blau)
Power switch
white
black
brown
white
Power supply
BKE module
(interface)
patch cable RED (RS-232)
Eddie current brake
LRE PCB
Saddle motor (eBike comfort only)
MAE PCB
X6 (3 pole) to sensor
X5 (2 pole) to motor
RJ-45 RJ-45 RJ-45
RS-232
RJ-45
RJ-45
RJ-45
X11
brown/white
patch cable BLUE
patch cable BLACK
2018112-069 Rev. F eBike II, eBike II L, eBike II EL - 19 -
wIrIng dIagraM eBIke II BasIC / CoMfort
