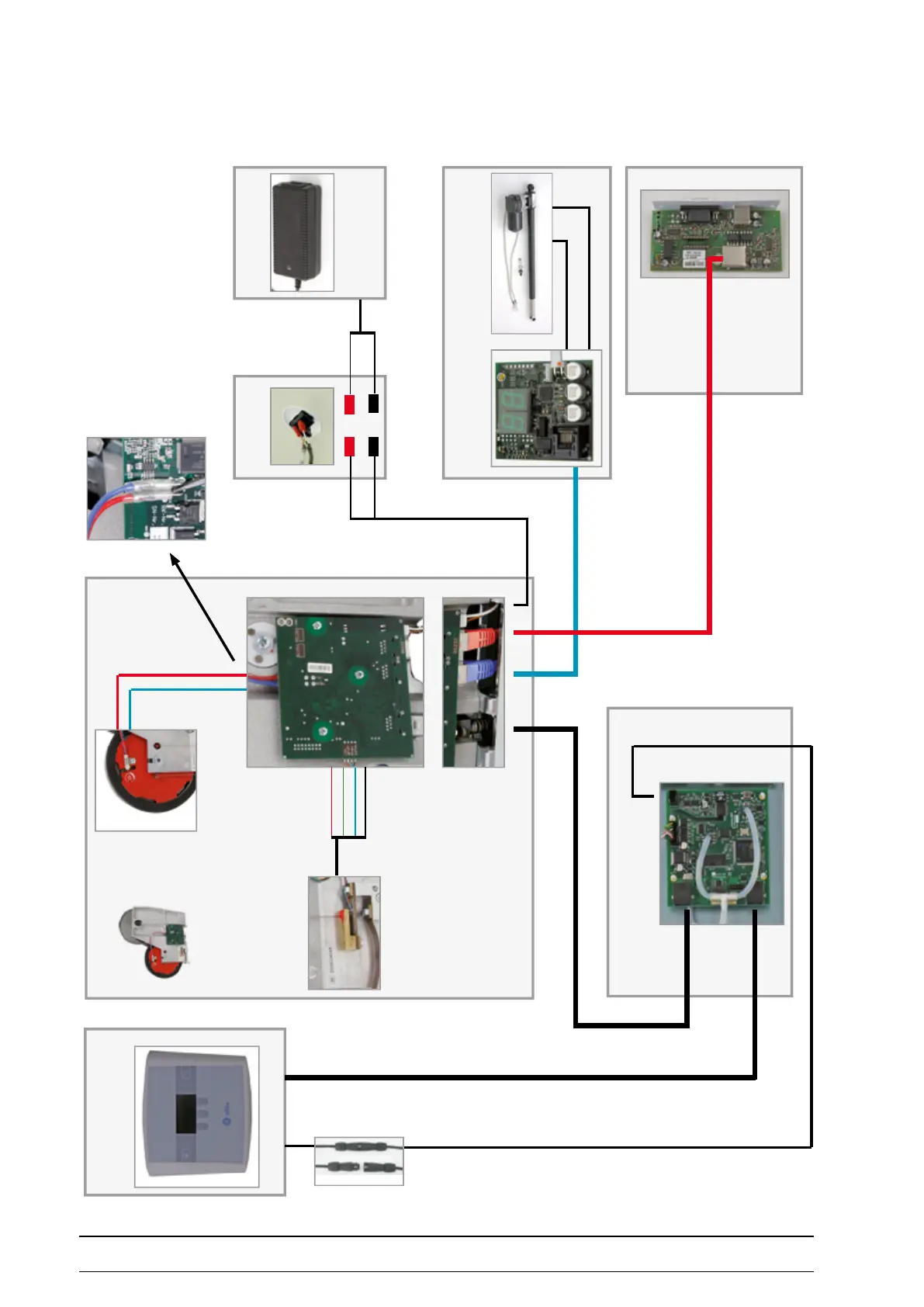

GE eBike BASIC - Wiring Diagram Ebike II Basic; Comfort with NIBP

GE eBike BASIC
234 pages
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
Strain gauge
red (rot)
green (grün)
blue (blau)
black (schw.)
Drive unit
Control terminal
red (rot)
blue (blau)
Power switch
white
black
brown
white
Power supply
patch cable BLACK
Eddie current brake
LRE PCB
Saddle motor (eBike comfort only)
MAE PCB
X6 (3 pole) to sensor
X5 (2 pole) to motor
patch cable BLUE
RJ-45 RJ-45 RJ-45
RS-232
RJ-45
RJ-45
X11
brown/white
Bloodpressure module
patch cable BLACK
patch cable RED (RS-232)
RJ-45
RJ-45
RJ-45
BDE PCB
X1
X16
microphone cable
BKE module
(interface)
- 20 - eBike II, eBike II L, eBike II EL 2018112-069 Rev. F
wIrIng dIagraM eBIke II BasIC / CoMfort wItH nIBp
