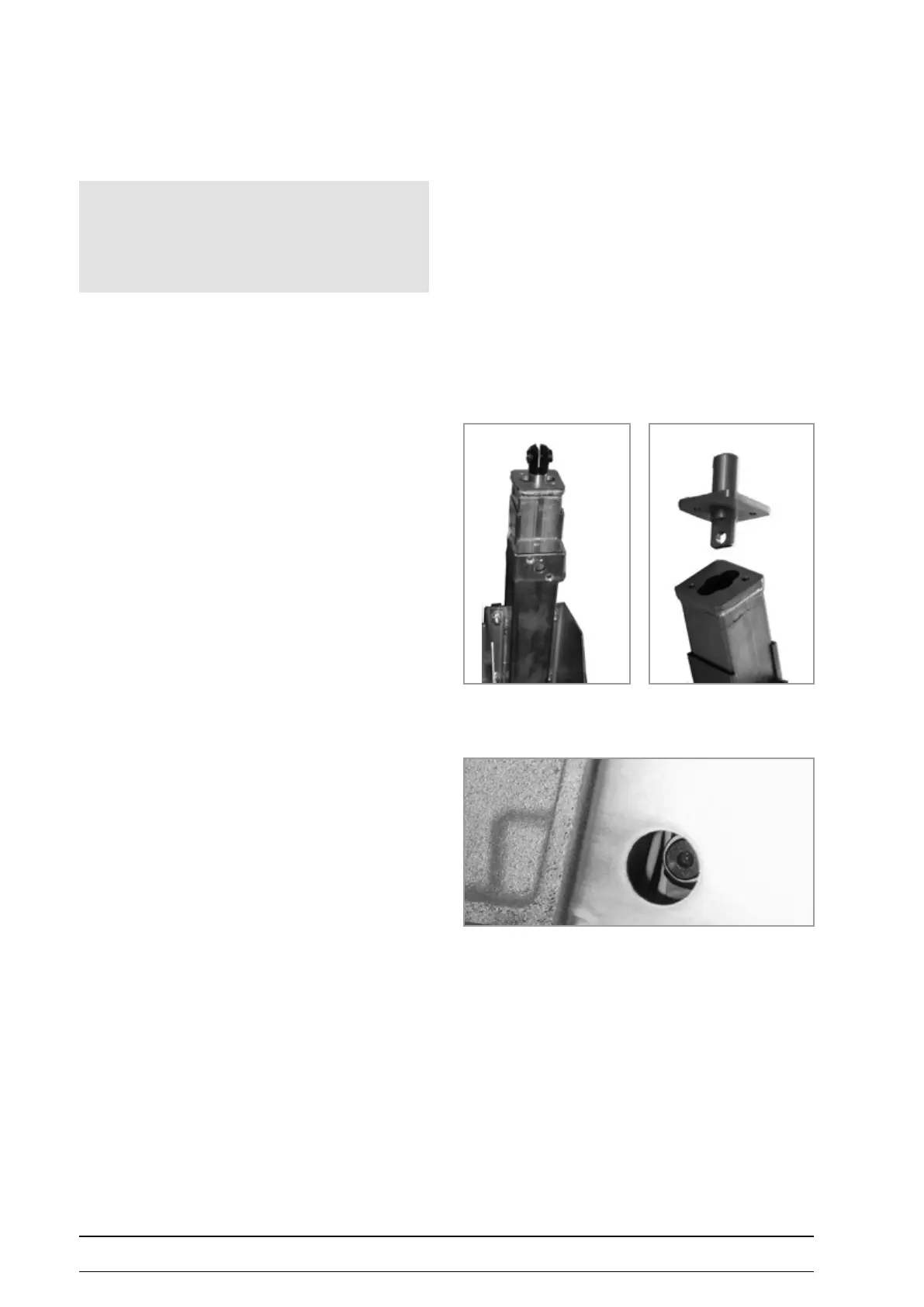

saddle Motor exCHange (eBIke CoMfort)
• Remove the housing of the ergometer.
• Disconnect connection cable of the saddle motor from
PCB Interface MAE
• Remove the saddle and pull o the bellows.
• Remove saddle host - to do so, unscrew both screws
at the top, push down the saddle tube to allow the
cylindrical pin to be removed from the saddle shaft.
• Remove clamping plate from saddle tube
• Pull saddle tube o the saddle motor.
• Unscrew the 4 screws of the saddle guide tube and
remove the tube
• Loosen bottom xation of the saddle motor (screw
and nut are accessible via a hole at the bottom).
• Remove the saddle motor.
• The new motor is assembled in reverse order.
• Perform a saddle calibration (service menu) to adjust
the top and bottom position.
Note
Position the saddle at mid-level before removing the saddle
motor
